RK111-JR3 (1982)

Toyota Stout

Production Jan 1982 - Jul 1985
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8604)

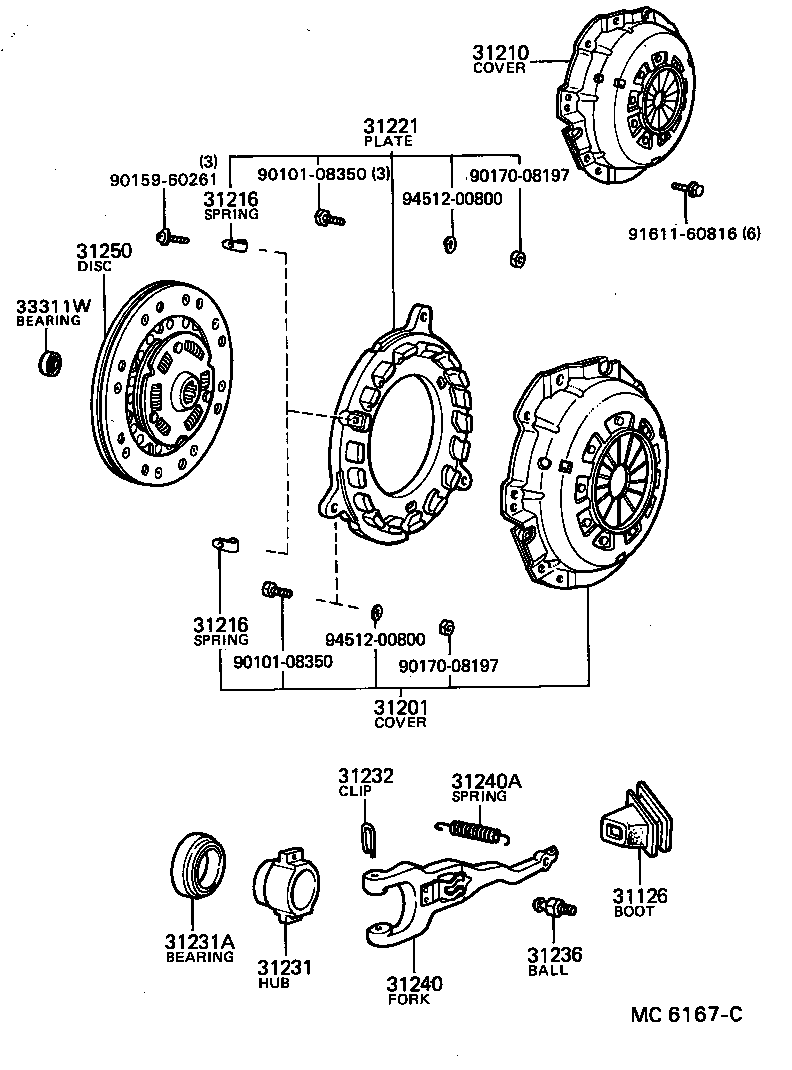

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31231 31231A 31232 31236 31240 31240A 31250 33311W 9010108350 9010108350 9015960261 9017008197 9017008197 9161160816 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-25021

RK11#

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

RK11#

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

RK11#

 3
31221 - PLATE, CLUTCH PRESSURE
31221-39056

RK11#

 1
31236 - BALL, RELEASE FORK
31236-25010

RK11#

 1
Common parts
90101-08350
90159-60261
90170-08197
91611-60816
94512-00800
