RK111-JR3 (1982)
Toyota Stout
Production
Jan 1982
-
Jul 1985
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903-8604)

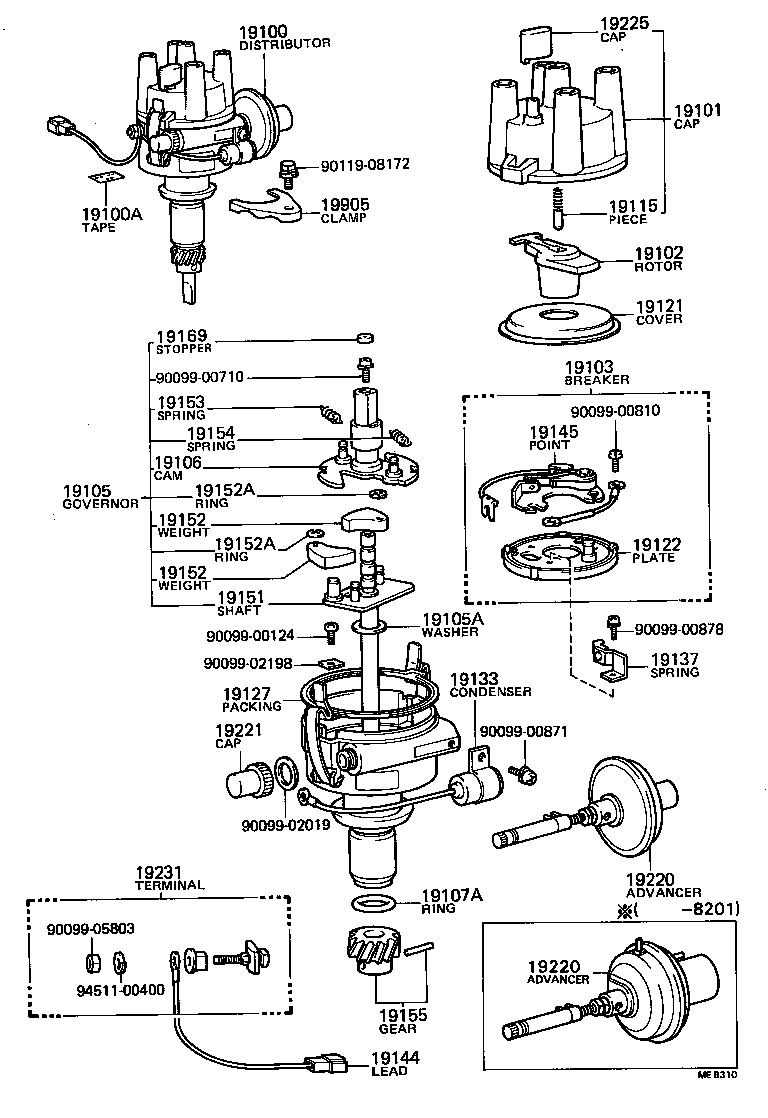

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
5R..RK11# L=70 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-25070 |
5R..RK11# |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-33012 |
5R..RK11# |
1 | ||
| 19103 - BREAKER SUB-ASSY, DISTRIBUTOR | ||||
| 19103-33013 |
5R..RK11# |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-44011 |
5R..RK11# |
1 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01386 |
5R..RK11# 厚さ=2.7,T=2.7 |
1 | ||
| 90099-01387 |
5R..RK11# 厚さ=2.9,T=2.9 |
1 | ||
| 90099-01385 |
5R..RK11# 厚さ=2.5,T=2.5 |
1 | ||
| 90099-01412 |
5R..RK11# 厚さ=2.3,T=2.3 |
1 | ||
| 19106 - CAM SUB-ASSY, DISTRIBUTOR | ||||
| 19106-33013 |
5R..RK11# |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
5R..RK11# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
5R..RK11# |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-38030 |
5R..RK11# |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-33013 |
5R..RK11# |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-88251 |
5R..RK11# |
1 | ||
| 19133 - CONDENSER, DISTRIBUTOR | ||||
| 90099-52059 |
5R..RK11# |
1 | ||
| 19137 - SPRING SUB-ASSY, DAMPER | ||||
| 19137-33012 |
5R..RK11# |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-34180 |
5R..RK11# |
1 | ||
| 19145 - POINT, DISTRIBUTOR | ||||
| 19145-26060 |
5R..RK11# |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-33011 |
5R..RK11# |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-45060 |
5R..RK11# |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-45060 |
5R..RK11# |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-44011 |
5R..RK11# |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-44011 |
5R..RK11# |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-33011 |
5R..RK11# |
1 | ||
| 19221 - CAP, ADJUSTER, DISTRIBUTOR | ||||
| 19221-30030 |
5R..RK11# |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-25070 |
5R..RK11# |
1 | ||
| 19231 - TERMINAL, DISTRIBUTOR | ||||
| 19231-24140 |
5R..RK11# |
1 | ||
| 19905 - CLAMP SUB-ASSY, DISTRIBUTOR | ||||
| 19955-33010 |
5R..RK11# |
1 | ||
| Common parts | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00810 | ||||
| 90099-00871 | ||||
| 90099-00878 | ||||
| 90099-02019 | ||||
| 90099-02198 | ||||
| 90099-05803 | ||||
| 90119-08172 | ||||
| 94511-00400 | ||||
