RK111-JR3 (1982)

Toyota Stout

Production Jan 1982 - Jul 1985
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8604)

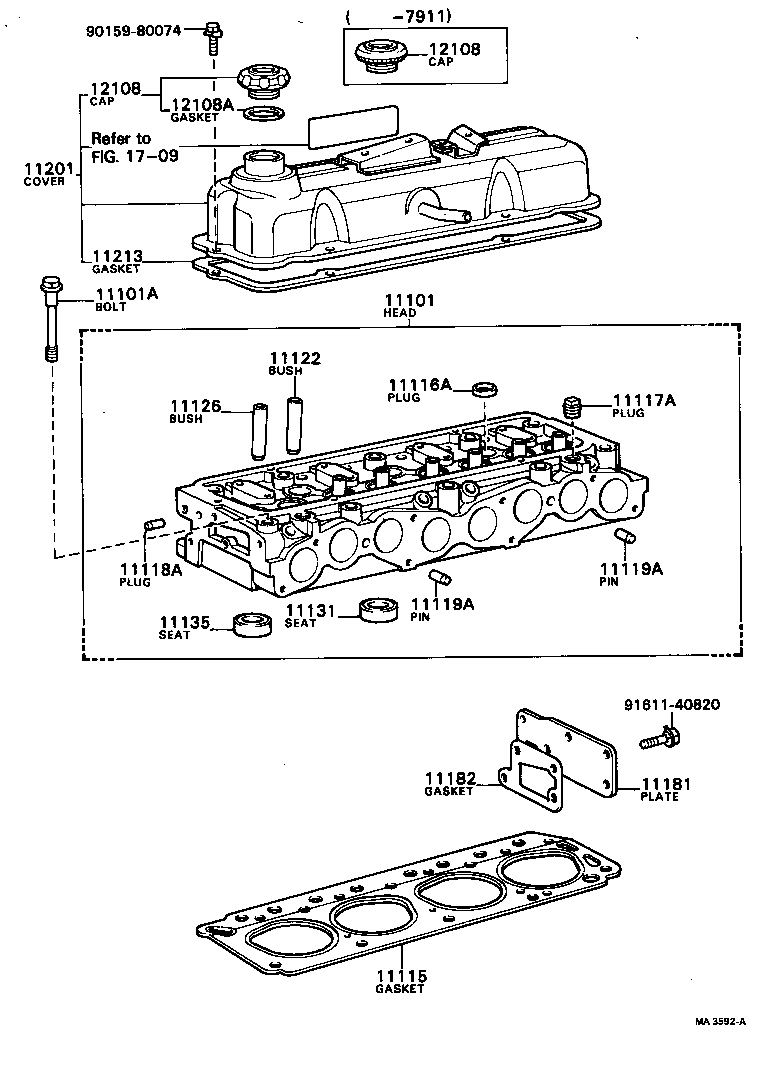

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11117A 11118A 11119A 11119A 11122 11126 11131 11135 11181 11182 11201 11213 12108 12108 12108A 1709 9015980074 9161140820
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-49217

5R..RK11#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02048

5R..RK11#

*12-1.25PX107-24

 10
11115 - GASKET, CYLINDER HEAD
11115-44024

5R..RK11#

 1
11116A - PLUG, TIGHT, NO.1
96411-42500

5R..RK11#

OD=25

 3
11118A - PLUG, STRAIGHT, NO.1
90334-08004

5R..RK11#

L=3.5,OD=6.7

 1
11119A - PIN, STRAIGHT, NO.1
90250-08054

5R..RK11#

長さ=23,外径=8,L=23,OD=8

 2
11119A - PIN, STRAIGHT, NO.1
90250-08054

5R..RK11#

長さ=23,外径=8,L=23,OD=8

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-44011

5R..RK11#

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-44011

5R..RK11#

STD

 4
11131 - SEAT, INTAKE VALVE
11131-44020

5R..RK11#

STD

 4
11132-44020

5R..RK11#

O/S 0.03

 4
11135 - SEAT, EXHAUST VALVE
11136-44021

5R..RK11#

O/S 0.03

 4
11135-44024

5R..RK11#

STD

 4
11181 - PLATE, CYLINDER HEAD, REAR
11181-44010

5R..RK11#

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-44010

5R..RK11#

 1
Common parts
90159-80074
91611-40820
Linked diagrams
1709
