RK111-JR3 (1982)

Toyota Stout

Production Jan 1982 - Jul 1985
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8604)

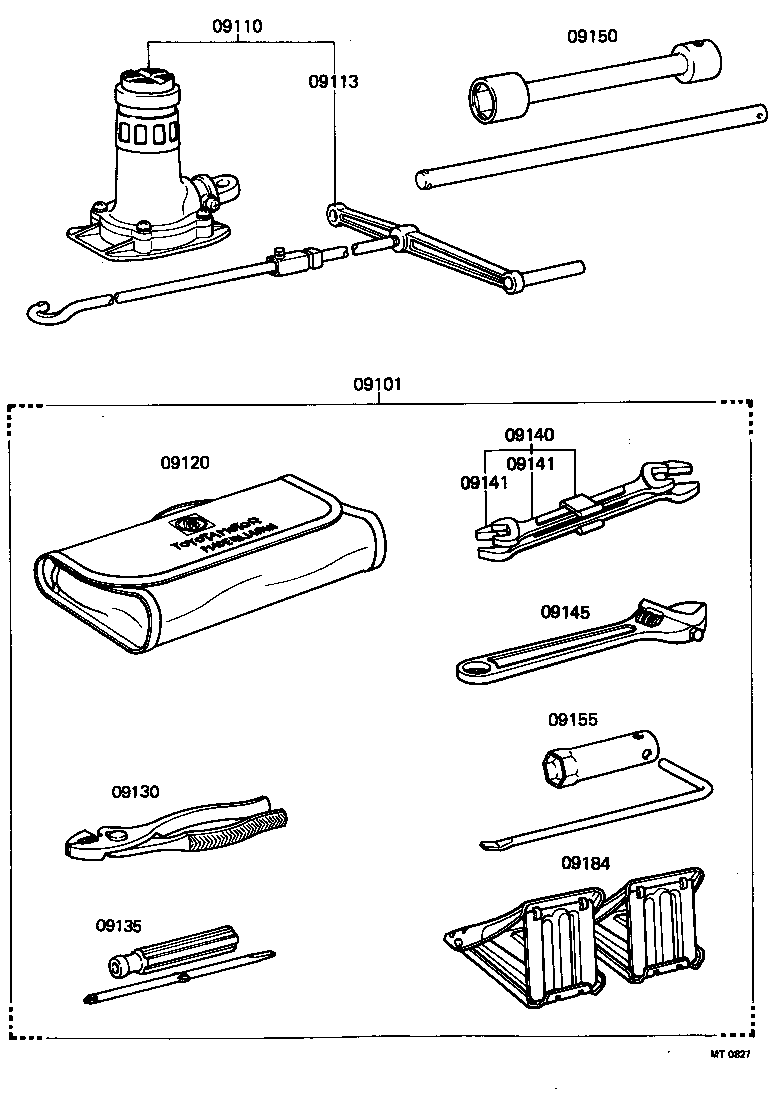

Click highlighted areas on diagram

diagram 09101 09110 09113 09120 09130 09135 09140 09141 09141 09145 09150 09155 09184
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09102-35010

RK11#

 1
09113 - HANDLE, JACK
09113-35100

RK11#

 1
09120 - BAG, TOOL
09120-36020

RK11#

 1
09130 - PLIERS
09130-00010

RK11#

 1
09135 - DRIVER, SCREW
99915-10700

RK11#

 1
09140 - SPANNER SET
09140-27010

RK11#

 1
09141 - SPANNER
99914-11012

RK11#

10 X 12,10X12

 1
99914-11417

RK11#

14 X 17,14X17

 1
09141 - SPANNER
99914-11012

RK11#

10 X 12,10X12

 1
99914-11417

RK11#

14 X 17,14X17

 1
09145 - WRENCH, MONKEY
99911-10200

RK11#

 1
09150 - WRENCH, HUB NUT BOX
09150-25010

RK11#..TW;RK11#..175

 1
09155 - WRENCH, SPARK PLUG
09155-44020

RK11#

 1
09184 - STOPPER, WHEEL
09184-00031

RK11#

 2
