RK110-JRP (1979)
Toyota Stout
Production
Mar 1979
-
Jan 1982
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )

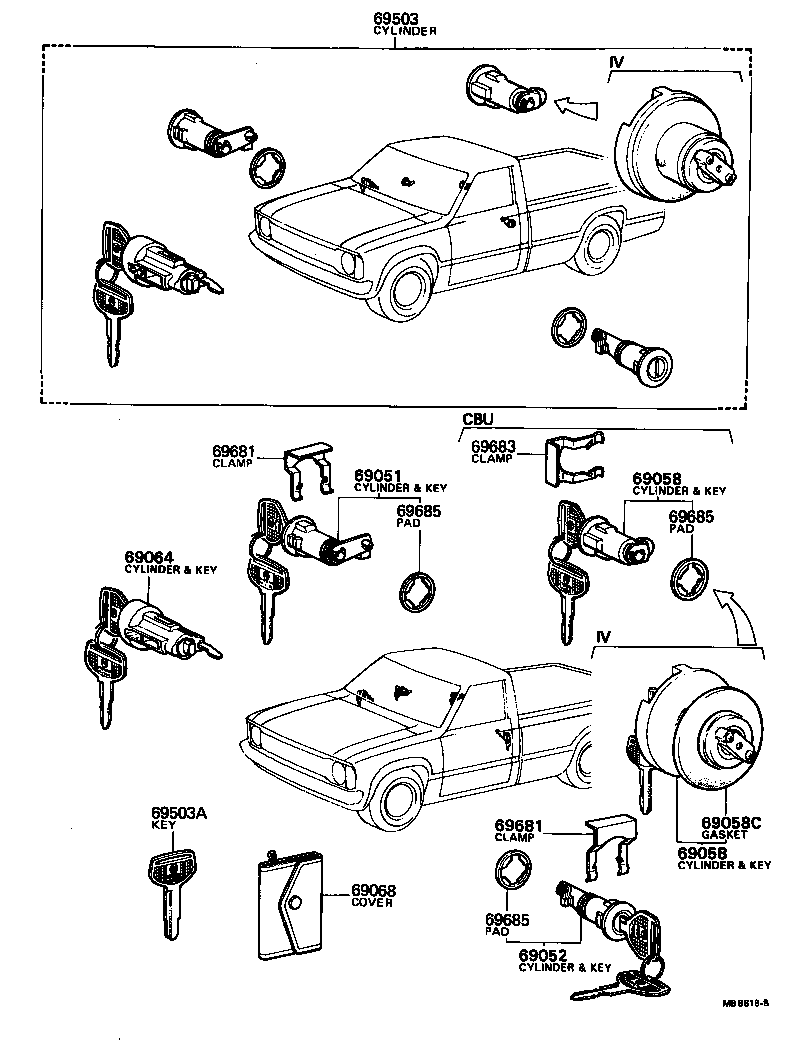

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-89106 |
RK110 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-89106 |
RK110 |
1 | ||
| 69058 - CYLINDER & KEY SET, FUEL FILLER LID | ||||
| 69058-89101 |
RK11#..CBU |
1 | ||
| 69058 - CYLINDER & KEY SET, FUEL FILLER LID | ||||
| 69058-89101 |
RK11#..CBU |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-12011 |
RK11# W/STEERING LOCK |
1 | ||
| 69057-89101 |
RK11# W/O STEERING LOCK |
1 | ||
| 69068 - COVER SUB-ASSY, KEY | ||||
| 84041-89102 |
RK11# |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-89106 |
RK110..CBU W/STEERING LOCK |
1 | ||
| 69005-89105 |
RK110..CBU W/O STEERING LOCK |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00066 |
RK11# ﾏｽﾀｰｷｰ |
2 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-20040 |
RK11# |
2 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-20040 |
RK11# |
2 | ||
| 69683 - CLAMP, FUEL LOCK CYLINDER | ||||
| 69681-20040 |
RK11# |
1 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69685-95400 |
RK11#..CBU W/FUEL INLET BOX |
1 | ||
| 69685-12010 |
RK11# |
2 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69685-95400 |
RK11#..CBU W/FUEL INLET BOX |
1 | ||
| 69685-12010 |
RK11# |
2 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69685-95400 |
RK11#..CBU W/FUEL INLET BOX |
1 | ||
| 69685-12010 |
RK11# |
2 | ||
