RK110-JRP (1979)
Toyota Stout
Production
Mar 1979
-
Jan 1982
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )

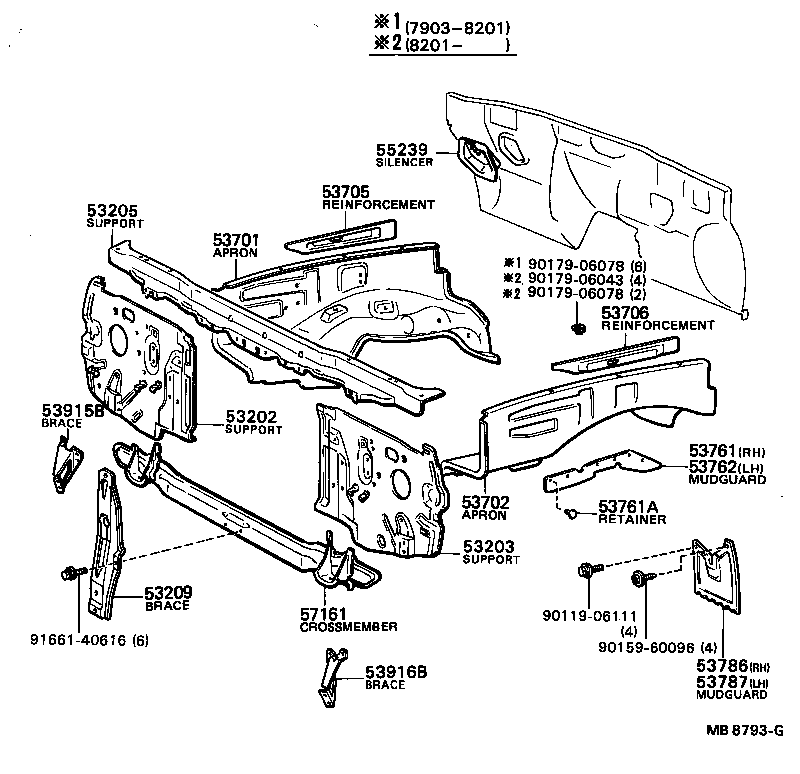

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-95111 |
RK110..TW |
1 | ||
| 53202-95111 |
RK110 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-95110 |
RK110 |
1 | ||
| 53203-95119 |
RK110 |
1 | ||
| 53203-95119 |
RK110..TW |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-89108 |
RK110 |
1 | ||
| 53209 - BRACE SUB-ASSY, HOOD LOCK | ||||
| 53217-95110 |
RK11# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-95118 |
RK110 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-95123 |
RK110 |
1 | ||
| 53702-95136 |
RK110 |
1 | ||
| 53705 - REINFORCEMENT SUB-ASSY, FRONT FENDER APRON, REAR RH | ||||
| 53745-95110 |
RK110 |
1 | ||
| 53706 - REINFORCEMENT SUB-ASSY, FRONT FENDER APRON, REAR LH | ||||
| 53746-95110 |
RK110 |
1 | ||
| 53761 - MUDGUARD, RH | ||||
| 53736-95111 |
RK11# |
1 | ||
| 53761A - RETAINER(FOR MUDGUARD) | ||||
| 90467-1000501 |
RK11# BLACK,BLACK |
11 | ||
| 53762 - MUDGUARD, LH | ||||
| 53737-95111 |
RK11# |
1 | ||
| 53915B - BRACE, VALANCE PANEL TO RADIATOR SUPPORT, RH | ||||
| 53915-95110 |
RK11# |
1 | ||
| 53916B - BRACE, VALANCE PANEL TO RADIATOR SUPPORT, LH | ||||
| 53916-95110 |
RK11# |
1 | ||
| 55239 - SILENCER, STEERING COLUMN HOLE COVER | ||||
| 55210-95116 |
RK11# |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57104-95110 |
RK110 |
1 | ||
| Common parts | ||||
| 90119-06111 | ||||
| 90159-60096 | ||||
| 90179-06043 | ||||
| 90179-06078 | ||||
| 91661-40616 | ||||
