RK110-JRH3 (1979)

Toyota Stout

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8604)

Click highlighted areas on diagram

diagram 27020 27039 27113 27212 27310 27310A 27310B 27310C 27315 27330 27330A 27350 27351 27357 27359 27370 27371 27372 2737831050 2738731011 27410 27411 27441 9009900862 9009901423 9009901423 9009904808 9009905060 9009905118 9009905118 9009905118 9009905119 9010108164 9011908127 9017906158 9017908146 9451100500 9451101400 9461210800
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-23022

5R..RK11#

12V 30A

 1
27020-40065

5R..RK110

12V 40A

 1
27039 - COVER, ALTERNATOR REAR END
27039-26020

5R..RK110

12V 40A

 1
27039-11014

5R..RK11#

12V 30A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-31011

5R..RK110

12V 40A

 1
27113-10012

5R..RK11#

12V 30A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050

5R..RK11#

12V 40A

 1
90099-19068

5R..RK11#

12V 30A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-34030

5R..RK110

12V 40A

 1
27310-22012

5R..RK11#

12V 30A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-56040

5R..RK11#

12V 30A

 1
90099-19075

5R..RK110

12V 40A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10012

5R..RK11#

12V 30A

 1
90099-10109

5R..RK110

12V 40A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02009

5R..RK11#

12V 30A

 1
90099-02004

5R..RK110

12V 40A

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27313-31011

5R..RK110

12V 40A

 1
27313-39010

5R..RK11#

12V 30A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-22012

5R..RK11#

12V 30A

 1
27330-33010

5R..RK110

12V 40A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
97110-06201

5R..RK11#

12V 30A

 1
90099-10103

5R..RK110

12V 40A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-31090

5R..RK11#

12V 30A

 1
27350-31101

5R..RK110

12V 40A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

5R..RK11#

12V 40A

 1
27351-24020

5R..RK11#

12V 30A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-11014

5R..RK11#

12V 30A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-36061

5R..RK110

12V 40A

 1
27359-31090

5R..RK11#

12V 30A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31090

5R..RK11#

12V 30A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

5R..RK11#

12V 30 & 40A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

5R..RK11#

12V 30 & 40A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-26020

5R..RK110

12V 40A

 1
27410-11014

5R..RK11#

12V 30A

 1
27411 - PULLEY, ALTERNATOR
27411-23022

5R..RK11#

12V 30A

 1
27411-45010

5R..RK11#

12V 40A

 1
27441 - FAN, ALTERNATOR
27441-31090

5R..RK11#

12V 30A

 1
27441-34030

5R..RK11#

12V 40A

 1
Common parts
27378-31050
27387-31011
90099-00862
90099-01423
90099-04808
90099-05060
90099-05118
90099-05119
90101-08164
90119-08127
90179-06158
90179-08146
94511-00500
94511-01400
94612-10800

(7903-8003)

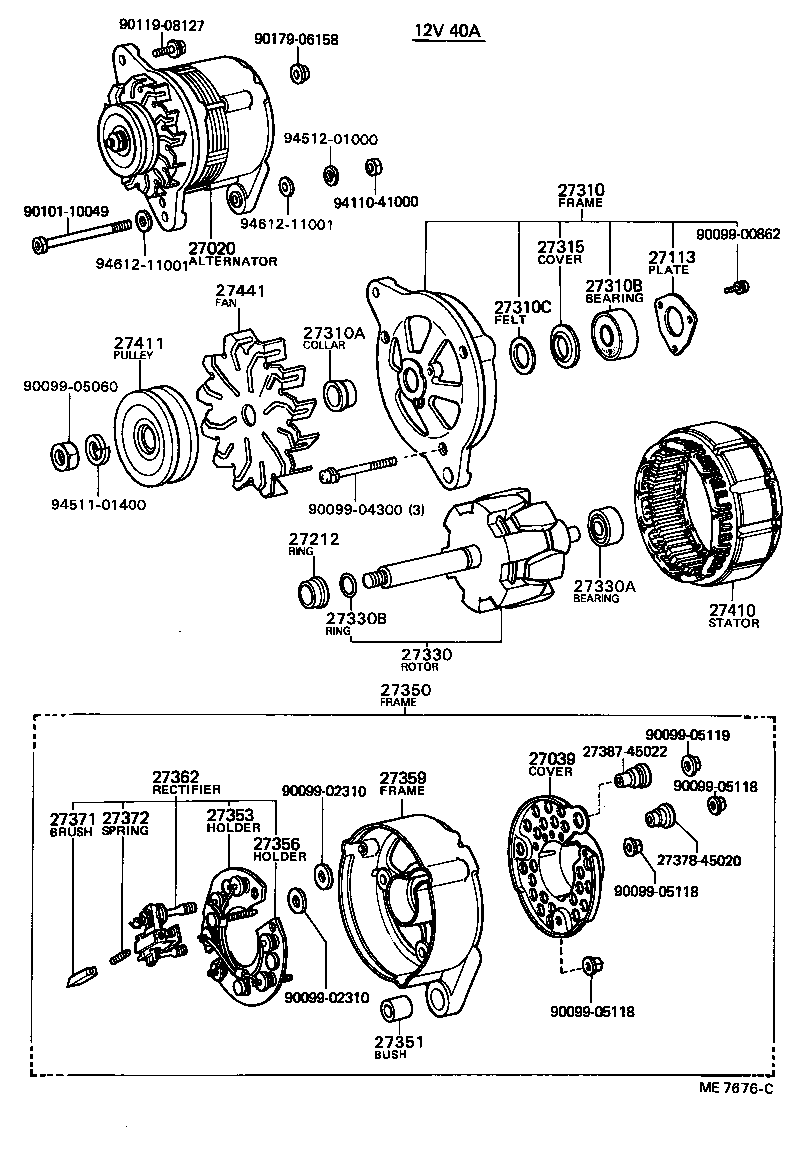

Click highlighted areas on diagram

diagram 27020 27039 27113 27212 27310 27310A 27310B 27310C 27315 27330 27330A 27330B 27350 27351 27353 27356 27359 27362 27371 27372 2737845020 2738745022 27410 27411 27441 9009900862 9009902310 9009902310 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110049 9011908127 9017906158 9411041000 9451101400 9451201000 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-23022

5R..RK11#

12V 30A

 1
27020-40065

5R..RK110

12V 40A

 1
27039 - COVER, ALTERNATOR REAR END
27039-26020

5R..RK110

12V 40A

 1
27039-11014

5R..RK11#

12V 30A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-31011

5R..RK110

12V 40A

 1
27113-10012

5R..RK11#

12V 30A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050

5R..RK11#

12V 40A

 1
90099-19068

5R..RK11#

12V 30A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-34030

5R..RK110

12V 40A

 1
27310-22012

5R..RK11#

12V 30A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-56040

5R..RK11#

12V 30A

 1
90099-19075

5R..RK110

12V 40A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10012

5R..RK11#

12V 30A

 1
90099-10109

5R..RK110

12V 40A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02009

5R..RK11#

12V 30A

 1
90099-02004

5R..RK110

12V 40A

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27313-31011

5R..RK110

12V 40A

 1
27313-39010

5R..RK11#

12V 30A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-22012

5R..RK11#

12V 30A

 1
27330-33010

5R..RK110

12V 40A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
97110-06201

5R..RK11#

12V 30A

 1
90099-10103

5R..RK110

12V 40A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048

5R..RK11#

12V 40A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-31090

5R..RK11#

12V 30A

 1
27350-31101

5R..RK110

12V 40A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

5R..RK11#

12V 40A

 1
27351-24020

5R..RK11#

12V 30A

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-26030

5R..RK110

12V 40A

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-26030

5R..RK110

12V 40A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-36061

5R..RK110

12V 40A

 1
27359-31090

5R..RK11#

12V 30A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-26040

5R..RK110

12V 40A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

5R..RK11#

12V 30 & 40A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

5R..RK11#

12V 30 & 40A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-26020

5R..RK110

12V 40A

 1
27410-11014

5R..RK11#

12V 30A

 1
27411 - PULLEY, ALTERNATOR
27411-23022

5R..RK11#

12V 30A

 1
27411-45010

5R..RK11#

12V 40A

 1
27441 - FAN, ALTERNATOR
27441-31090

5R..RK11#

12V 30A

 1
27441-34030

5R..RK11#

12V 40A

 1
Common parts
27378-45020
27387-45022
90099-00862
90099-02310
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90119-08127
90179-06158
94110-41000
94511-01400
94512-01000
94612-11001
