RK110-JRH (1979)
Toyota Stout
Production
Mar 1979
-
Jan 1982
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

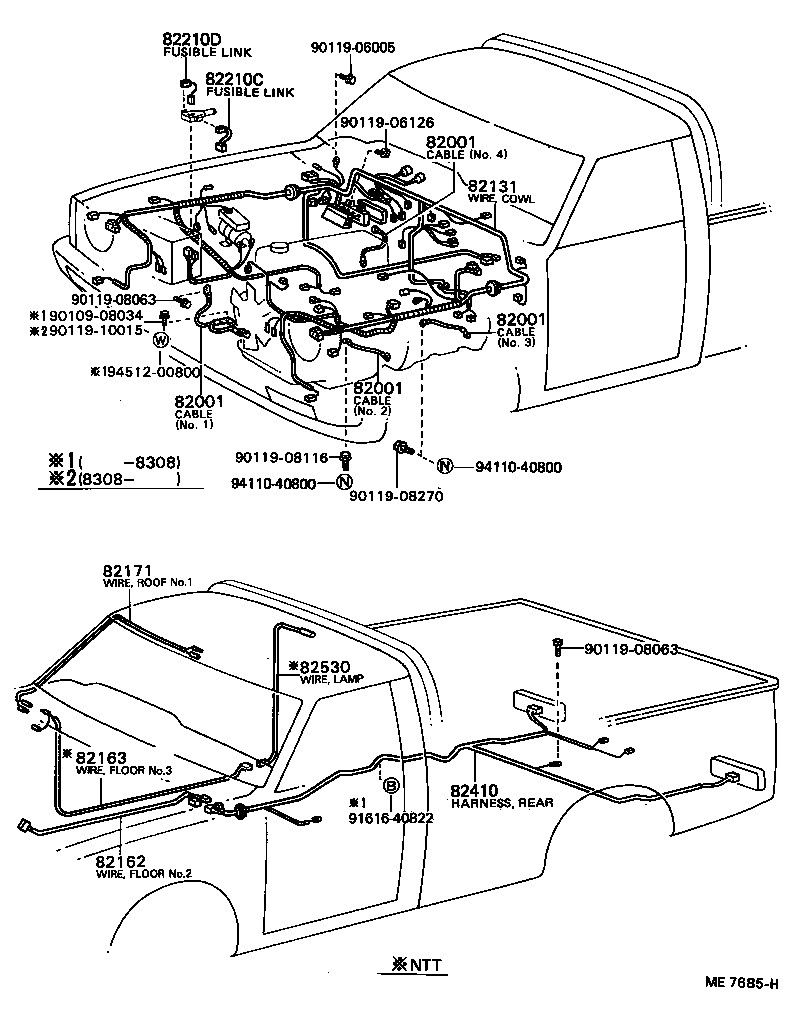

ILLUST NO. 1 OF 2(7903- )T1
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07031 |
RK110 NO.4(L=210) |
1 | ||
| 90980-07154 |
RK11# NO.1(L=190 & 320) |
1 | ||
| 90980-07163 |
RK11# NO.2(L=340) |
1 | ||
| 90980-07164 |
RK11# NO.3(L=320) |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07031 |
RK110 NO.4(L=210) |
1 | ||
| 90980-07154 |
RK11# NO.1(L=190 & 320) |
1 | ||
| 90980-07163 |
RK11# NO.2(L=340) |
1 | ||
| 90980-07164 |
RK11# NO.3(L=320) |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07031 |
RK110 NO.4(L=210) |
1 | ||
| 90980-07154 |
RK11# NO.1(L=190 & 320) |
1 | ||
| 90980-07163 |
RK11# NO.2(L=340) |
1 | ||
| 90980-07164 |
RK11# NO.3(L=320) |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07031 |
RK110 NO.4(L=210) |
1 | ||
| 90980-07154 |
RK11# NO.1(L=190 & 320) |
1 | ||
| 90980-07163 |
RK11# NO.2(L=340) |
1 | ||
| 90980-07164 |
RK11# NO.3(L=320) |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-95147 |
RK110 |
1 | ||
| 82210-95136 |
RK110..T1 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82510-89106 |
RK110..T1 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08078 |
RK11# |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08079 |
RK11# |
1 | ||
| 82410 - HARNESS ASSY, WIRING TO REAR LAMP | ||||
| 82410-95129 |
RK11#..T1 |
1 | ||
| Common parts | ||||
| 90109-08034 | ||||
| 90119-06005 | ||||
| 90119-06126 | ||||
| 90119-08063 | ||||
| 90119-08116 | ||||
| 90119-08270 | ||||
| 90119-10015 | ||||
| 91616-40822 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||

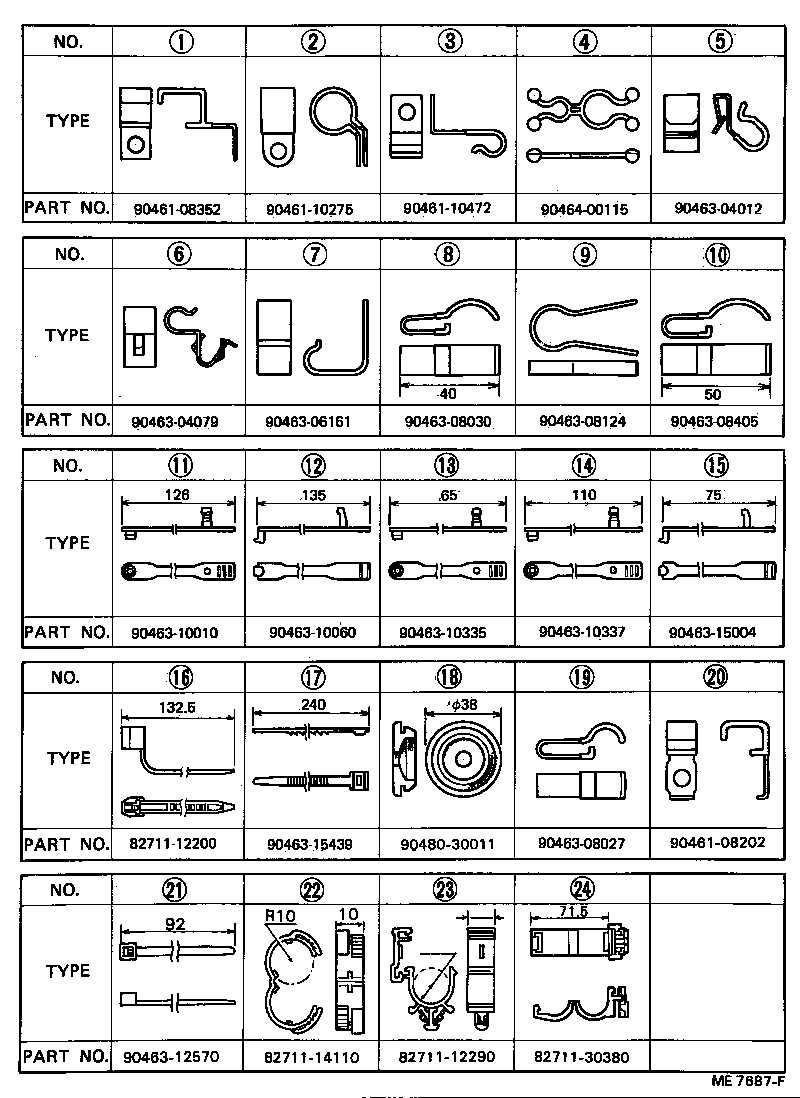

ILLUST NO. 2 OF 2(7903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12290 | ||||
| 82711-14110 | ||||
| 82711-30380 | ||||
| 90461-08202 | ||||
| 90461-08352 | ||||
| 90461-10275 | ||||
| 90461-10472 | ||||
| 90463-04012 | ||||
| 90463-04079 | ||||
| 90463-06161 | ||||
| 90463-08027 | ||||
| 90463-08030 | ||||
| 90463-08124 | ||||
| 90463-08405 | ||||
| 90463-10010 | ||||
| 90463-10060 | ||||
| 90463-10335 | ||||
| 90463-10337 | ||||
| 90463-12570 | ||||
| 90463-15004 | ||||
| 90463-15439 | ||||
| 90464-00115 | ||||
| 90480-30011 | ||||
