RK110-JRH (1979)

Toyota Stout

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

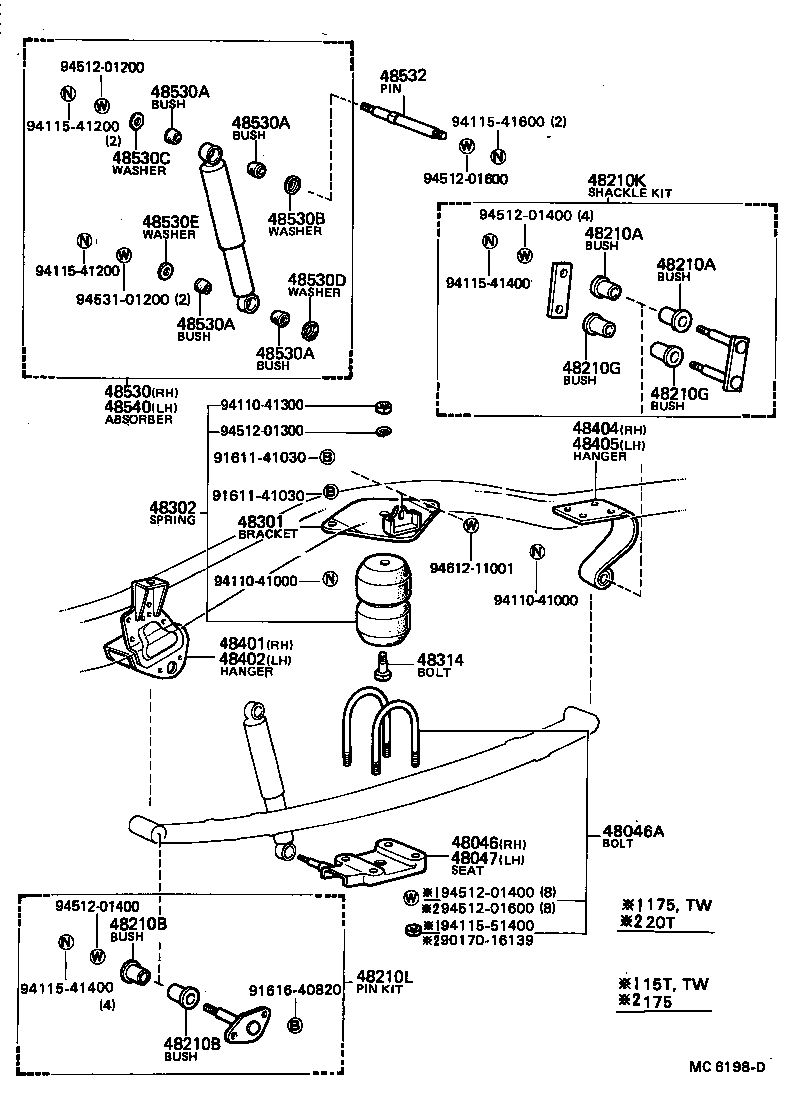

ILLUST NO. 1 OF 2(7903- )

Click highlighted areas on diagram

diagram 48046 48046A 48047 48210A 48210A 48210B 48210B 48210G 48210G 48210K 48210L 48301 48302 48314 48401 48402 48404 48405 48530 48530A 48530A 48530A 48530A 48530B 48530C 48530D 48530E 48532 48540 9017016139 9161141030 9161141030 9161640820 9411041000 9411041000 9411041300 9411541200 9411541200 9411541400 9411541400 9411541600 9411551400 9451201200 9451201300 9451201400 9451201400 9451201400 9451201600 9451201600 9453101200 9461211001
Part # Description Qty Price
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-35070

RK11#..20T

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-16178

RK11#..20T

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-35070

RK11#..20T

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18025

RK11#

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18025

RK11#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18025

RK11#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18025

RK11#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18025

RK11#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18025

RK11#

 4
48210K - SHACKLE KIT, REAR SPRING
04483-35020

RK110

 2
48210L - PIN KIT, REAR SPRING
04484-35020

RK110

 2
48301 - BRACKET SUB-ASSY, HOLLOW SPRING
48301-35010

RK11#

 2
48302 - SPRING SUB-ASSY, HOLLOW
48302-39045

RK11#..20T

 2
48314 - BOLT, HOLLOW SPRING SET
48314-35010

RK11#

 2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48404-35010

RK11#..T1

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48407-35010

RK11#..T1

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48405-35010

RK11#

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48406-35010

RK11#

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39365

RK11#

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

RK11#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

RK11#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

RK11#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

RK11#

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

RK11#

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03003

RK11#

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03004

RK11#

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03003

RK11#

 2
48532 - PIN, REAR SHOCK ABSORBER PIVOT
48532-35030

RK11#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39365

RK11#

 1
Common parts
90170-16139
91611-41030
91616-40820
94110-41000
94110-41300
94115-41200
94115-41400
94115-41600
94115-51400
94512-01200
94512-01300
94512-01400
94512-01600
94531-01200
94612-11001

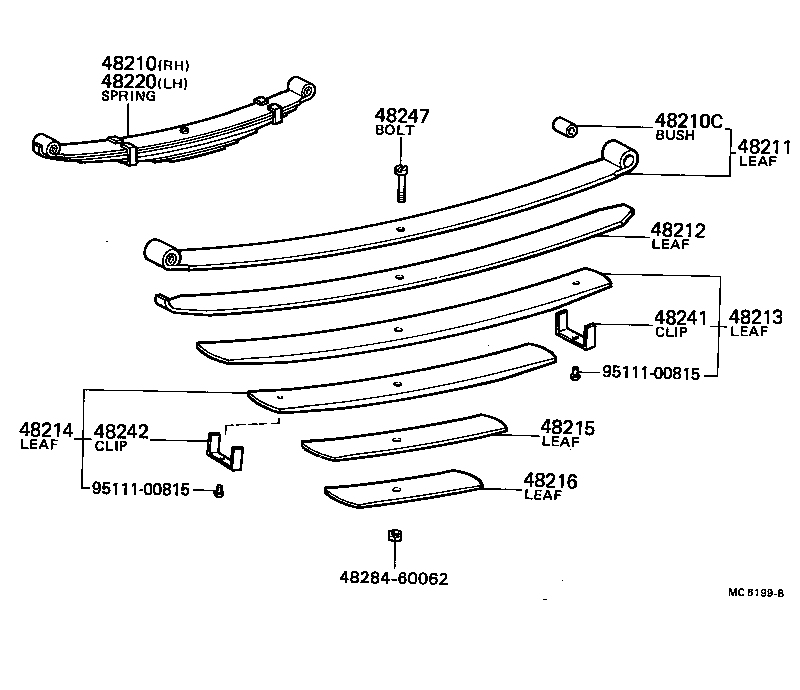

ILLUST NO. 2 OF 2(7903- )

Click highlighted areas on diagram

diagram 48210 48210C 48211 48212 48213 48214 48215 48216 48220 48241 48242 48247 4828460062 9511100815 9511100815
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-35190

RK11#

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90387-30011

RK11#

 4
48211 - LEAF, REAR SPRING, NO.1
48201-35190

RK11#

 2
48212 - LEAF, REAR SPRING, NO.2
48212-35190

RK11#

 2
48213 - LEAF, REAR SPRING, NO.3
48202-35190

RK11#

 2
48214 - LEAF, REAR SPRING, NO.4
48203-35190

RK11#

 2
48215 - LEAF, REAR SPRING, NO.5
48215-35190

RK11#

 2
48216 - LEAF, REAR SPRING, NO.6
48216-35190

RK11#

 2
48220 - SPRING ASSY, REAR LH
48210-35190

RK11#

 1
48241 - CLIP, REAR SPRING, NO.1
48141-60120

RK110

 2
48242 - CLIP, REAR SPRING, NO.2
48241-35190

RK110

 2
48247 - BOLT, REAR SPRING, CENTER
48247-60160

RK11#

 2
Common parts
48284-60062
95111-00815
