RK110-JRH (1979)
Toyota Stout
Production
Mar 1979
-
Jan 1982
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )

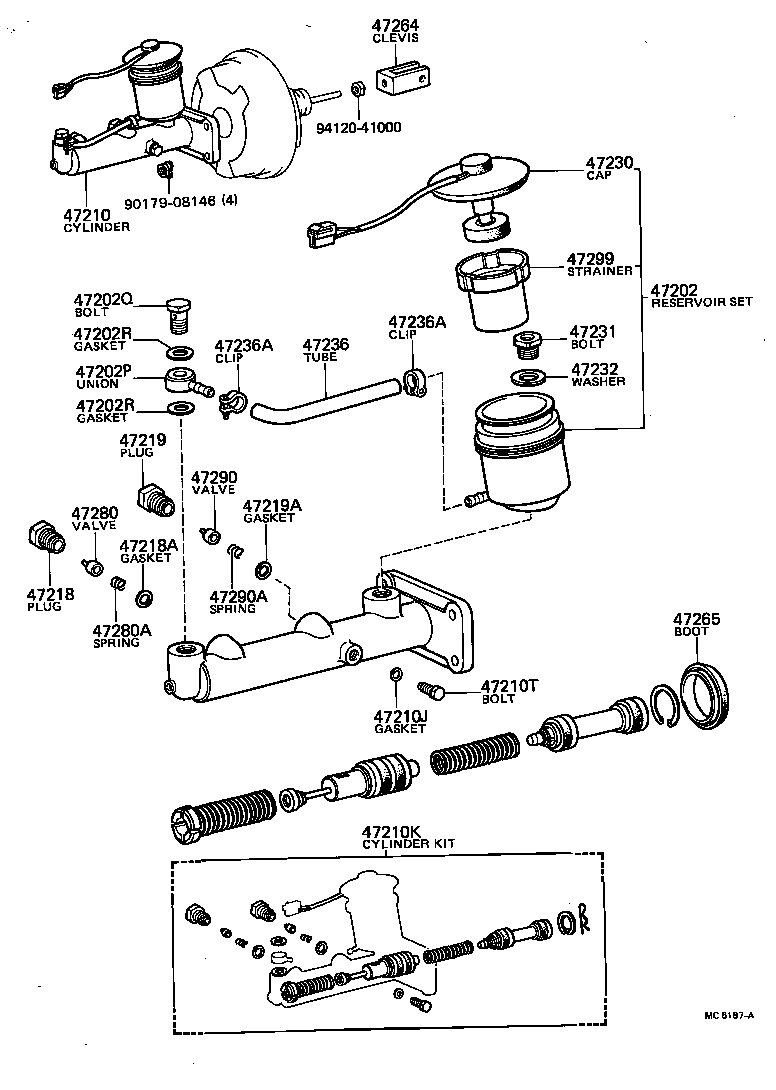

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-35060 |
RK11# |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10003 |
RK11# |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16002 |
RK11# |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
RK11# |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
RK11# |
2 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-35190 |
RK11# |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
RK11# |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-35080 |
RK11# |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
RK11# |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-25010 |
RK11# |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-15001 |
RK11# |
1 | ||
| 47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE) | ||||
| 47218-25010 |
RK11# |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-15001 |
RK11# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 84460-12011 |
RK11# |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
RK11# |
1 | ||
| 47232 - WASHER, BRAKE RESERVOIR SET BOLT | ||||
| 47232-30010 |
RK11# |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-35020 |
RK11# |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16141 |
RK11# |
2 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16141 |
RK11# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-26020 |
RK11# |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-35030 |
RK11# |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
RK11# |
1 | ||
| 47280A - SPRING, COMPRESSION | ||||
| 90504-05004 |
RK11# |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47281-30020 |
RK11# |
1 | ||
| 47290A - SPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE) | ||||
| 90504-05004 |
RK11# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20010 |
RK110 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||
