RK110-JRH (1979)
Toyota Stout
Production
Mar 1979
-
Jan 1982
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903-8201)

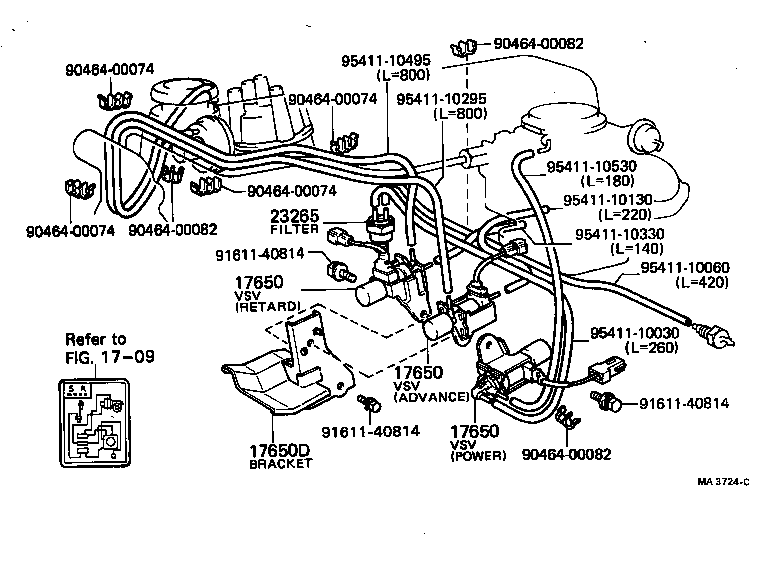

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-35100 |
5R..RK110 ADVANCE |
1 | ||
| 89570-35110 |
5R..RK110 RETARD |
1 | ||
| 89570-25030 |
5R..RK110 POWER |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-35100 |
5R..RK110 ADVANCE |
1 | ||
| 89570-35110 |
5R..RK110 RETARD |
1 | ||
| 89570-25030 |
5R..RK110 POWER |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-35100 |
5R..RK110 ADVANCE |
1 | ||
| 89570-35110 |
5R..RK110 RETARD |
1 | ||
| 89570-25030 |
5R..RK110 POWER |
1 | ||
| 17650D - BRACKET, VACUUM SWITCHING VALVE | ||||
| 21999-44010 |
5R..RK110 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
5R..RK110 |
1 | ||
| Common parts | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 91611-40814 | ||||
| 95411-10030 | ||||
| 95411-10060 | ||||
| 95411-10130 | ||||
| 95411-10295 | ||||
| 95411-10330 | ||||
| 95411-10495 | ||||
| 95411-10530 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7903-8604)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01004 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01008 | ||||
| 90925-01009 | ||||
| 90925-01011 | ||||
| 90925-01014 | ||||
| 90925-01015 | ||||
| 90925-01018 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01032 | ||||
| 90925-01035 | ||||
| 90925-01036 | ||||
| 90925-01037 | ||||
| 90925-01038 | ||||
| 90925-01040 | ||||
| 90925-01041 | ||||
| 90925-01042 | ||||
| 90925-01043 | ||||
| 90925-01045 | ||||
| 90925-01046 | ||||
| 90925-01047 | ||||
| 90925-01052 | ||||
| 90925-01053 | ||||
| 90925-01055 | ||||
| 90925-01056 | ||||
| 90925-01058 | ||||
| 90925-01059 | ||||
| 90925-01060 | ||||
