RK110-JR3 (1979)

Toyota Stout

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

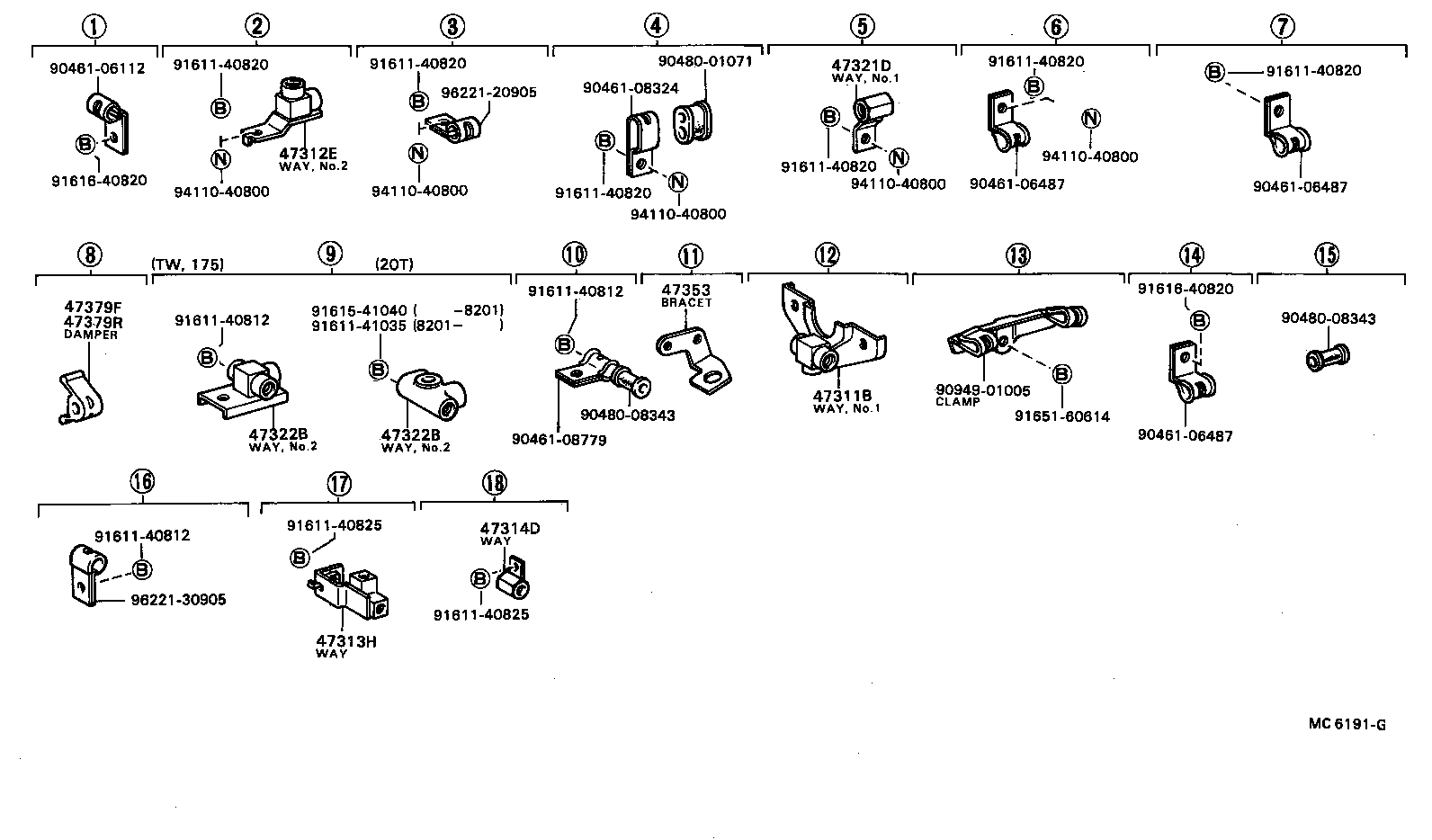

ILLUST NO. 2 OF 3(7903- )

Click highlighted areas on diagram

diagram 47311B 47312E 47313H 47314D 47321D 47322B 47322B 47353 47379F 47379R 9046106112 9046106487 9046106487 9046106487 9046108324 9046108779 9048001071 9048008343 9048008343 9094901005 9161140812 9161140812 9161140812 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140825 9161140825 9161141035 9161541040 9161640820 9161640820 9165160614 9411040800 9411040800 9411040800 9411040800 9411040800 9622120905 9622130905
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10058

RK11#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10053

RK11#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10040

RK11#

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10054

RK11#..TW;RK11#..175

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10054

RK11#..TW;RK11#..175

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47352-35060

RK11#

 1
Common parts
90461-06112
90461-06487
90461-08324
90461-08779
90480-01071
90480-08343
90949-01005
91611-40812
91611-40820
91611-40825
91611-41035
91615-41040
91616-40820
91651-60614
94110-40800
96221-20905
96221-30905

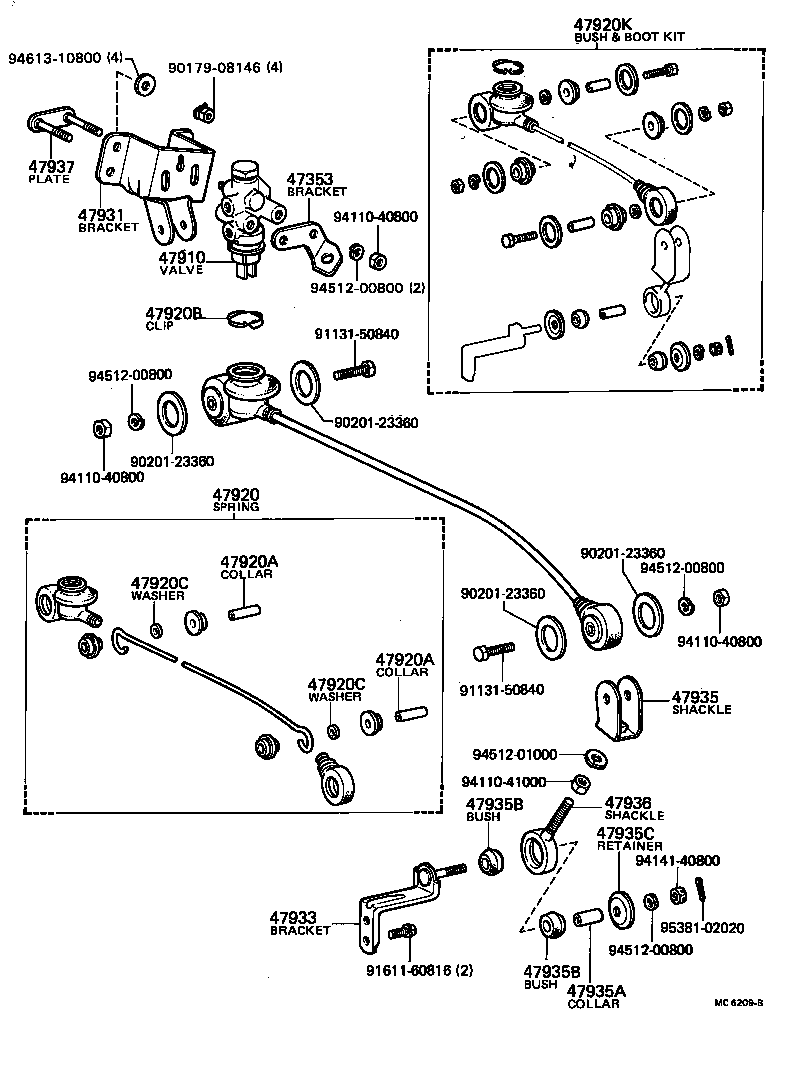

ILLUST NO. 3 OF 3(7903- )

Click highlighted areas on diagram

diagram 47353 47910 47920 47920A 47920A 47920B 47920C 47920C 47920K 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9017908146 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161160816 9411040800 9411040800 9411040800 9411041000 9414140800 9451200800 9451200800 9451200800 9451200800 9451201000 9461310800 9538102020
Part # Description Qty Price
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47352-35060

RK11#

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-25050

RK11#

 1
47920 - SPRING ASSY, LOAD SENSING
47920-35030

RK11#

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

RK11#

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

RK11#

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

RK11#

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

RK11#

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

RK11#

 2
47920K - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-35010

RK11#

 1
47931 - BRACKET, LOAD SENSING VALVE
47931-35040

RK11#

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-36030

RK11#

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

RK11#

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

RK11#

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

RK11#

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

RK11#

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

RK11#

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35010

RK11#

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-26010

RK11#

 1
Common parts
90179-08146
90201-23360
91131-50840
91611-60816
94110-40800
94110-41000
94141-40800
94512-00800
94512-01000
94613-10800
95381-02020

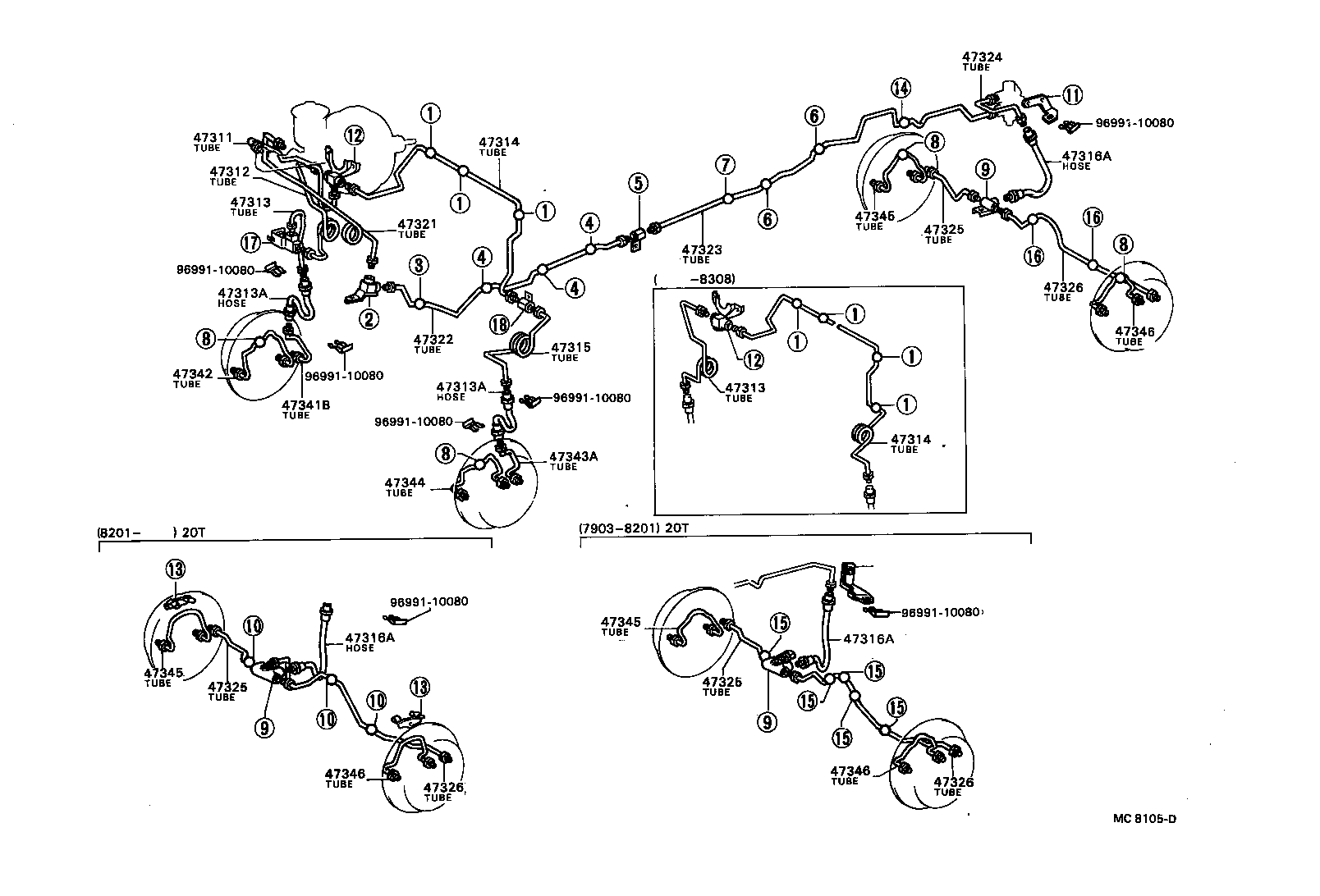

ILLUST NO. 1 OF 3(7903- )

Click highlighted areas on diagram

diagram 47311 47312 47313 47313 47313A 47313A 47314 47314 47315 47316A 47316A 47316A 47321 47322 47323 47324 47325 47325 47325 47326 47326 47326 47341B 47342 47343A 47344 47345 47345 47345 47346 47346 47346 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35280

RK11#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47312-35220

RK11#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47312-35220

RK11#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33605

RK11#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33605

RK11#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47313-35160

RK11#

 1
47314 - TUBE, FRONT BRAKE, NO.4
47313-35160

RK11#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96910-34205

RK11#..TW;RK11#..175

L=420

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96910-34205

RK11#..TW;RK11#..175

L=420

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96910-34205

RK11#..TW;RK11#..175

L=420

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35070

RK11#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35110

RK11#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35050

RK11#

 1
47324 - TUBE, REAR BRAKE, NO.4
47323-35020

RK11#

 1
47325 - TUBE, REAR BRAKE, NO.5
47324-35040

RK11#..TW;RK11#..175

 1
47325 - TUBE, REAR BRAKE, NO.5
47324-35040

RK11#..TW;RK11#..175

 1
47325 - TUBE, REAR BRAKE, NO.5
47324-35040

RK11#..TW;RK11#..175

 1
47326 - TUBE, REAR BRAKE, NO.6
47325-35050

RK11#..TW;RK11#..175

 1
47326 - TUBE, REAR BRAKE, NO.6
47325-35050

RK11#..TW;RK11#..175

 1
47326 - TUBE, REAR BRAKE, NO.6
47325-35050

RK11#..TW;RK11#..175

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-35050

RK11#

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-25011

RK11#

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-35050

RK11#

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47344-25011

RK11#

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-25030

RK11#..TW;RK11#..175

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-25030

RK11#..TW;RK11#..175

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-25030

RK11#..TW;RK11#..175

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-25030

RK11#..TW;RK11#..175

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-25030

RK11#..TW;RK11#..175

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-25030

RK11#..TW;RK11#..175

 1
Common parts
96991-10080
