RK110-JR (1979)

Toyota Stout

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )T1

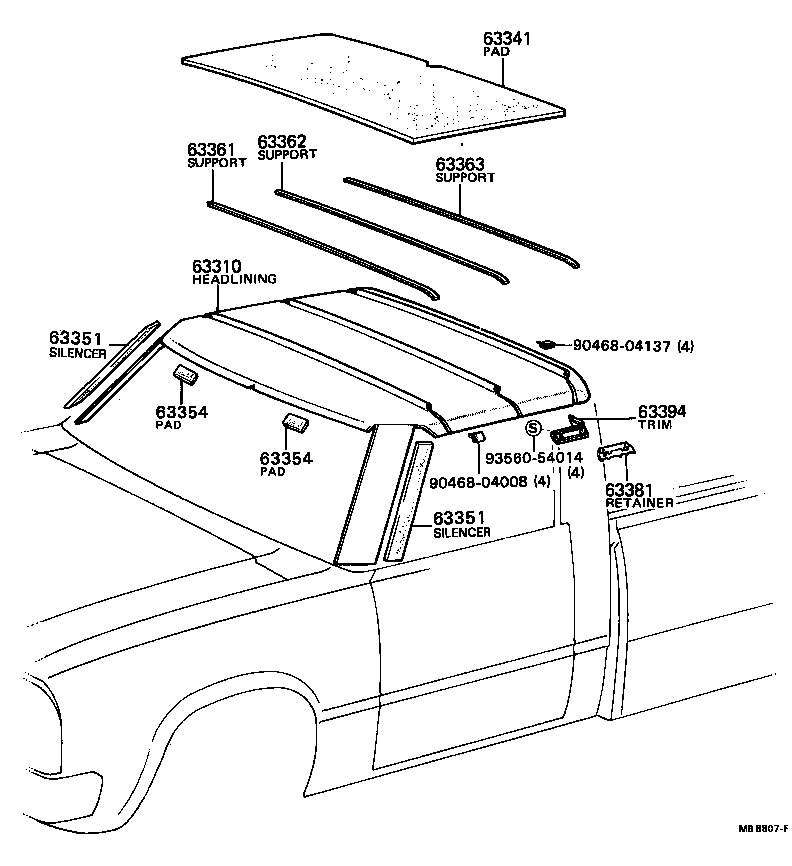

Click highlighted areas on diagram

diagram 63310 63341 63351 63351 63354 63354 63361 63362 63363 63381 63394 9046804008 9046804137 9356054014
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63311-8910203

RK11#..T1

GRAY,GRAY

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-89108

RK11#

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-89101

RK11#..T1

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63361-89101

RK11#..T1

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63361-89102

RK11#..T1

 1
63381 - RETAINER, HEADLINING, FRONT
63381-95111

RK11#..T1

 2
63394 - TRIM, ROOF HEADLINING
63393-8910203

RK11#..T1

RH,GRAY,GRAY

 1
63394-8910203

RK11#..T1

LH,GRAY,GRAY

 1
Common parts
90468-04008
90468-04137
93560-54014
