NP90-AHPDS (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 1N
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

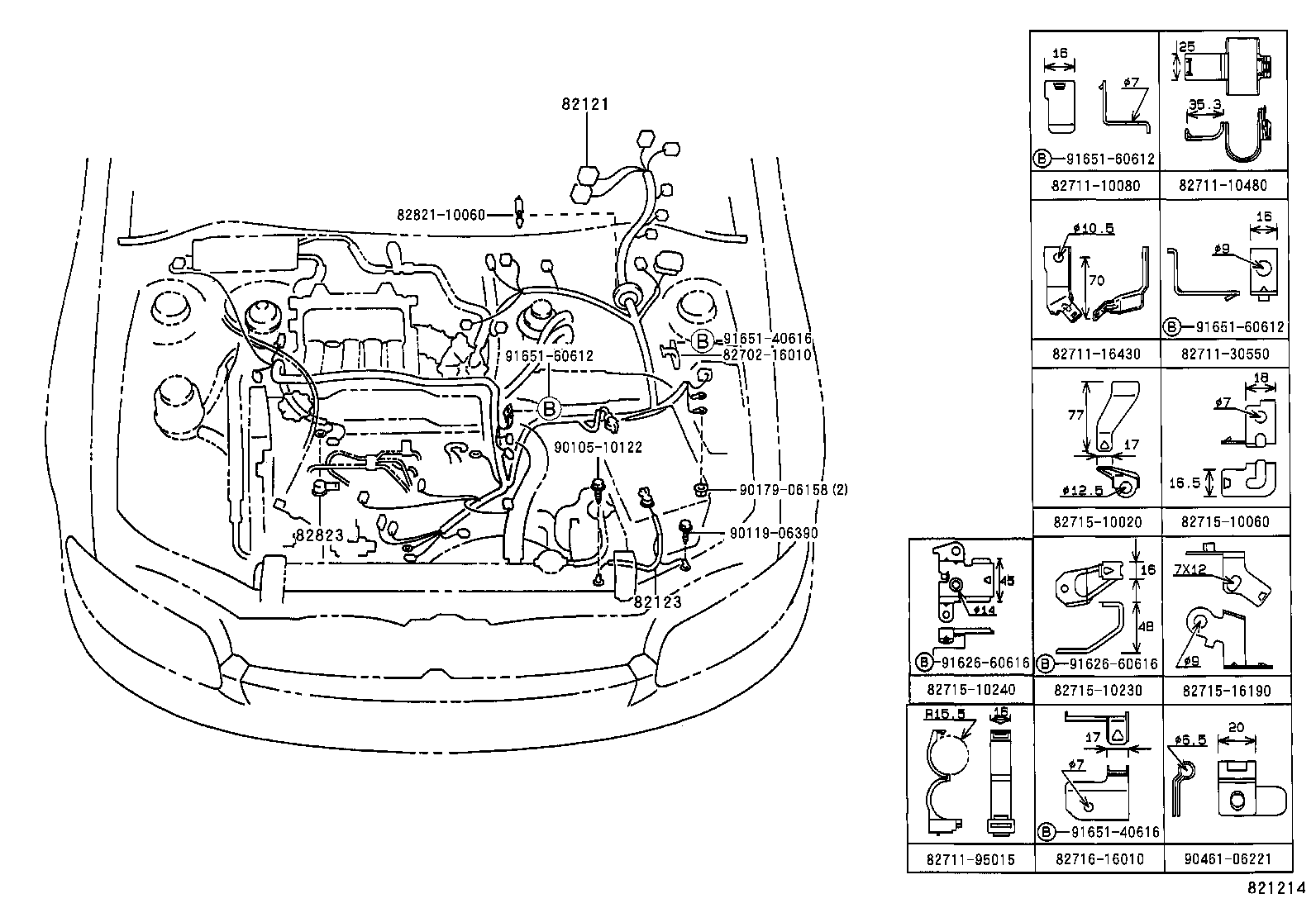

ILLUST NO. 2 OF 7(9601- )NP90

Click highlighted areas on diagram

ENGINE WIRE

diagram 82121 82123 8270216010 8271110080 8271110480 8271116430 8271130550 8271195015 8271510020 8271510060 8271510230 8271510240 8271516190 8271616010 8282110060 82823 9010510122 9011906390 9017906158 9046106221 9162660616 9162660616 9165140616 9165140616 9165160612 9165160612 9165160612
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-1C170

NP90..4FC

 1
82121-1C300

NP90..4FC

 1
82123 - WIRE, ENGINE, NO.3
82123-10130

NP90

 1
82823 - CAP, TERMINAL, NO.1
82823-22050

EP9#,NP90

 1
Common parts
82702-16010
82711-10080
82711-10480
82711-16430
82711-30550
82711-95015
82715-10020
82715-10060
82715-10230
82715-10240
82715-16190
82716-16010
82821-10060
90105-10122
90119-06390
90179-06158
90461-06221
91626-60616
91651-40616
91651-60612

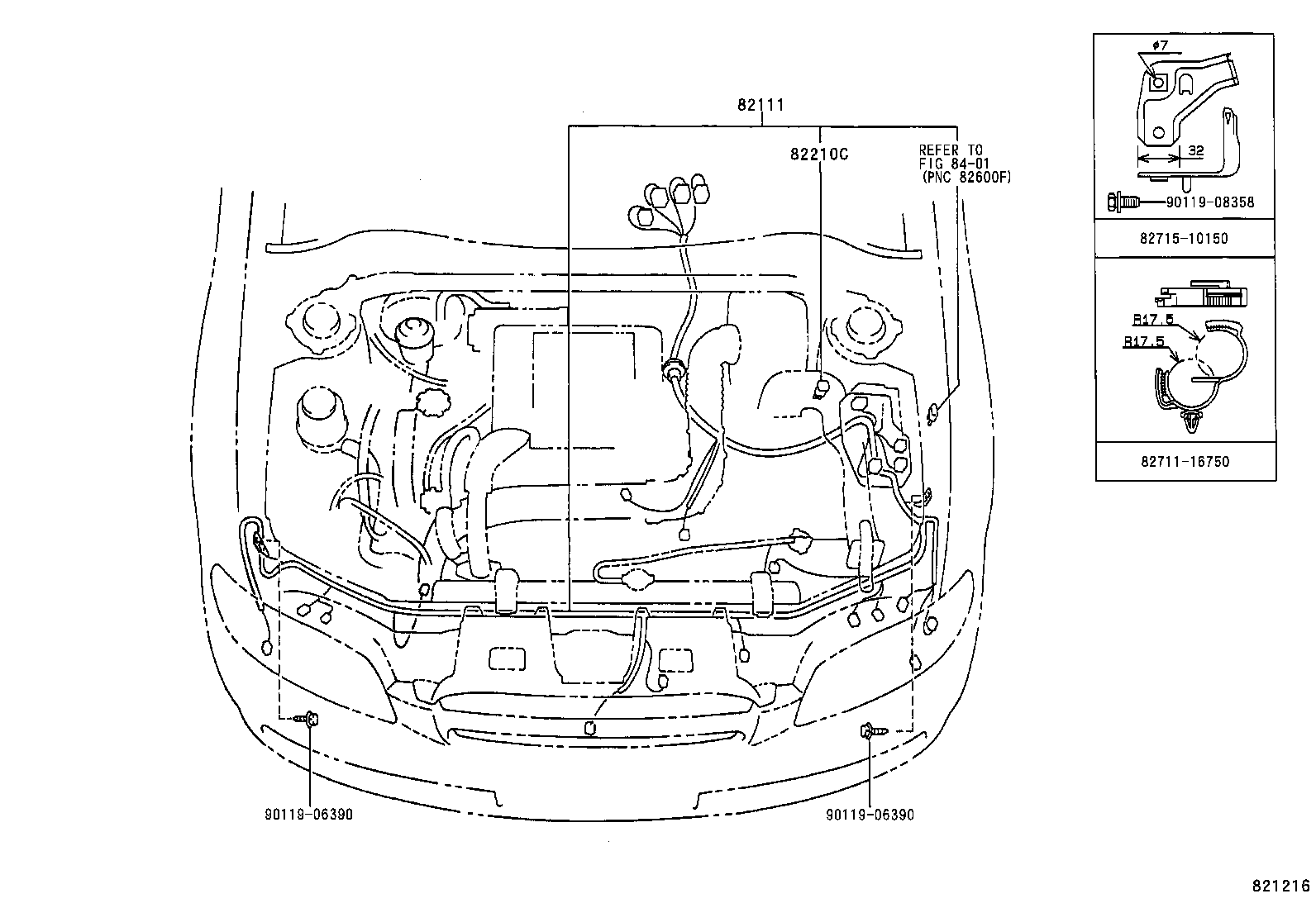

ILLUST NO. 3 OF 7(9601- )NP90

Click highlighted areas on diagram

E/G ROOM WIRE

diagram 82111 82210C 8271116750 8271510150 8401 9011906390 9011906390 9011908358
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-1C041

NP90..4FC

 1
82111-1C040

NP90..4FC

 1
82111-1C430

NP90

ｱﾘ(ABS)

 1
82111-1C420

NP90

 1
82210C - FUSIBLE LINK
90982-08246

EP9#,NP90

100A,ｵｽ端子,青

 1
90982-08285

EP9#,NP90

50A,ﾒｽ端子,赤

 1
90982-08283

EP9#,NP90

30A,ﾒｽ端子,桃

 1
90982-08284

EP9#,NP90

40A,ﾒｽ端子,緑

 1
Common parts
82711-16750
82715-10150
90119-06390
90119-08358
Linked diagrams
8401

ILLUST NO. 4 OF 7(9601- )

Click highlighted areas on diagram

INSTRUMENT PANEL WIRE

diagram 82141 8266610010 8266610020 8271110460 827111E350 827113A740 827113F230 8271510200 8271510220 8271510250 8401 9011906120 9015970003 9015970003 9016850041 9162660616 9356855014 9359056020
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-10120

NP90

 1
82141-10200

NP90

ｱﾘ(*80,ﾃﾞﾝｷｼｷ ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)

 1
82141-10081

NP90

ｱﾘ(*80,ﾃﾞﾝｷｼｷ ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)

 1
82141-10071

NP90

 1
82141-10451

NP90

 1
82141-10450

NP90

 1
Common parts
82666-10010
82666-10020
82711-10460
82711-1E350
82711-3A740
82711-3F230
82715-10200
82715-10220
82715-10250
90119-06120
90159-70003
90168-50041
91626-60616
93568-55014
93590-56020
Linked diagrams
8401

ILLUST NO. 6 OF 7(9601- )

Click highlighted areas on diagram

FLOOR,BACK DOOR WIRE

diagram 82161 82185 82412 82561 827111A750 827111E340 827113F230 8271510280 8271510290 82817E 9011906067 9011906067 9011906067 9165140616 9165140616
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-10830

EP91,NP90..RFL

 1
82161-10821

EP91,NP90..5D..RFL

 1
82161-10820

EP91,NP90..RFL

ｱﾘ(ABS)

 1
82161-10841

EP91,NP90..5D..RFL

ｱﾘ(ABS)

 1
82161-1C080

EP91,NP90..5D..RFL

 1
82161-1C071

EP91,NP90..5D..(RFL,RFLF,RFLX)

ｱﾘ(ABS)

 1
82161-1C070

EP91,NP90..5D..RFL

ｱﾘ(ABS)

 1
82185 - WIRE, BACK DOOR, NO.2
82185-10220

EP9#,NP90..RFL,RFLF

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ)

 1
82185-10210

EP9#,NP90..RFL,RFLF

 1
82185-10240

EP9#,NP90..RFL,RFLF

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ & ﾘﾔ ﾜｲﾊﾟ)

 1
82185-10230

EP9#,NP90..RFL,RFLF

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ)

 1
82185-10220

EP91,NP90..RFL,RFLF

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ)

 1
82185-10210

EP91,NP90..RFL,RFLF

 1
82412 - WIRE, FUEL GAGE
82412-10040

NP90

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-30150

EP91,NP90

 1
Common parts
82711-1A750
82711-1E340
82711-3F230
82715-10280
82715-10290
90119-06067
91651-40616

ILLUST NO. 7 OF 7(9601- )

Click highlighted areas on diagram

CONNECTOR

diagram 9098010481 9098010619 9098011019 9098011162 9098011314
Part # Description Qty Price
Common parts
90980-10481
90980-10619
90980-11019
90980-11162
90980-11314

ILLUST NO. 5 OF 7(9601- )

Click highlighted areas on diagram

DOOR,ROOF WIRE

diagram 82151 82152 82153 82154 82171 8271110470 8271116790 827111E300 827111E340 827112A720
Part # Description Qty Price
82171 - WIRE, ROOF, NO.1
82171-10150

EP9#,NP90..RFL,RFLF

 1
82171-10240

EP9#,NP90..RFL,RFLF

ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ OR ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ)

 1
82171-10230

EP91,NP90..RFL,RFLF

 1
82171-10160

EP9#,NP90..RFL,RFLF

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ)

 1
Common parts
82711-10470
82711-16790
82711-1E300
82711-1E340
82711-2A720

ILLUST NO. 1 OF 7(9601- )CARAT,GLZS,REMIX,RFL,RFLF,RFLX

Click highlighted areas on diagram

CABLE BOND

diagram 82001 82001C 9011906390 9011908413
Part # Description Qty Price
82001C - CABLE, BOND, NO.2
90980-07318

EP9#,NP90

 1
Common parts
90119-06390
90119-08413
