NP90-AHPDS (1996)
Toyota Starlet
Production
Jan 1996
-
Jul 1999
Engine
1N
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

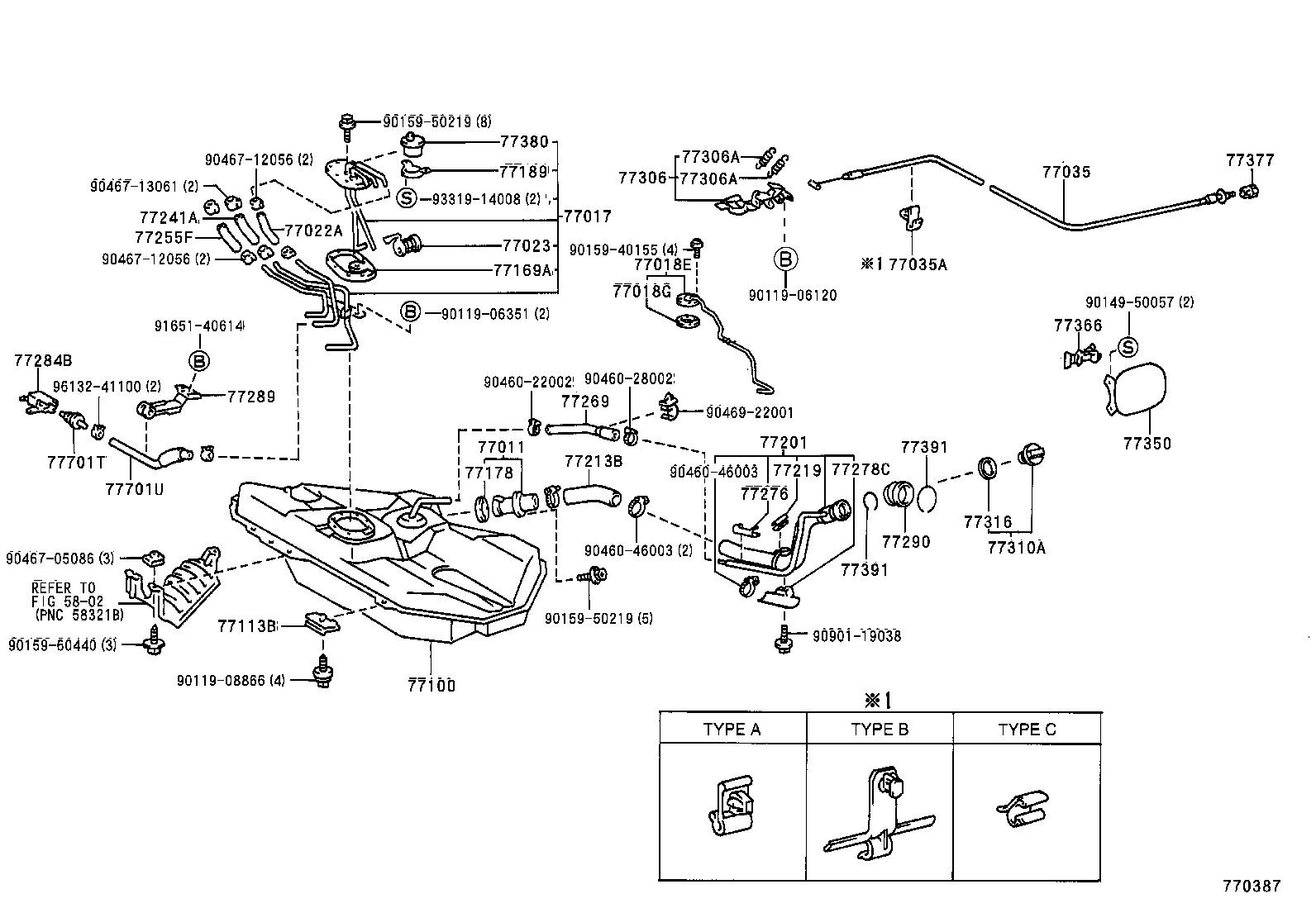

ILLUST NO. 1 OF 2(9601-9704)NP90
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-10060 |
EP9#,NP90 |
1 | ||
| 77011-16100 |
EP91,NP90 |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-16140 |
NP90 |
1 | ||
| 77017-16170 |
NP90 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-16060 |
EP91,NP90 |
1 | ||
| 77018G - GASKET, FUEL TANK EVAP/VENT TUBE | ||||
| 77179-26010 |
EP91,NP90 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06020 |
NP90 *H,L=130 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32010 |
NP90 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-10090 |
EP9#,NP90 |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 69749-12010 |
EP9#,NP90 TYPE A:ο½²οΎο½½οΎο½»οΎο½ΌοΎο½³ |
1 | ||
| 90463-05004 |
EP9#,NP90 TYPE C:ο½²οΎο½½οΎο½»οΎο½ΌοΎο½³ |
1 | ||
| 82711-12800 |
EP9#,NP90 TYPE B:ο½²οΎο½½οΎο½»οΎο½ΌοΎο½³ |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-16250 |
EP91,NP90 |
1 | ||
| 77001-16220 |
EP91,NP90 |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-10020 |
EP91,NP90 |
4 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-16030 |
EP91,NP90 |
1 | ||
| 77169-20050 |
EP91,NP90 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
EP9#,NP90 |
1 | ||
| 77189 - RETAINER, FUEL CHECK VALVE | ||||
| 77189-18010 |
EP91,NP90 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-10200 |
EP91,NP90 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-10090 |
EP91,NP90 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-10020 |
EP91,NP90 |
2 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
NP90 *H,L=120,ε εΎ=7.6 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06010 |
NP90 *H,L=100 |
1 | ||
| 77269 - TUBE, FUEL CONNECTING | ||||
| 77269-10010 |
EP91,NP90 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-10050 |
EP91,NP90 |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-10030 |
EP91,NP90 |
1 | ||
| 77284B - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-32020 |
NP90 |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-10011 |
NP90 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12110 |
EP9#,NP90 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-12060 |
EP9#,NP90 |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09034 |
EP9#,NP90 |
2 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09034 |
EP9#,NP90 |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-32011 |
NP90 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
EP9#,NP90 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-10070 |
EP9#,NP90 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-10030 |
EP9#,NP90 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
EP9#,NP90 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
EP9#,NP90 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
EP9#,NP90 ε€ε΄ |
1 | ||
| 77391-12010 |
EP9#,NP90 ε ε΄ |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
EP9#,NP90 ε€ε΄ |
1 | ||
| 77391-12010 |
EP9#,NP90 ε ε΄ |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10082 |
NP90 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 77249-10080 |
NP90 |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90119-06351 | ||||
| 90119-08866 | ||||
| 90149-50057 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90159-60440 | ||||
| 90460-22002 | ||||
| 90460-28002 | ||||
| 90460-46003 | ||||
| 90467-05086 | ||||
| 90467-12056 | ||||
| 90467-13061 | ||||
| 90469-22001 | ||||
| 90901-19038 | ||||
| 91651-40614 | ||||
| 93319-14008 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 5802 | ||||

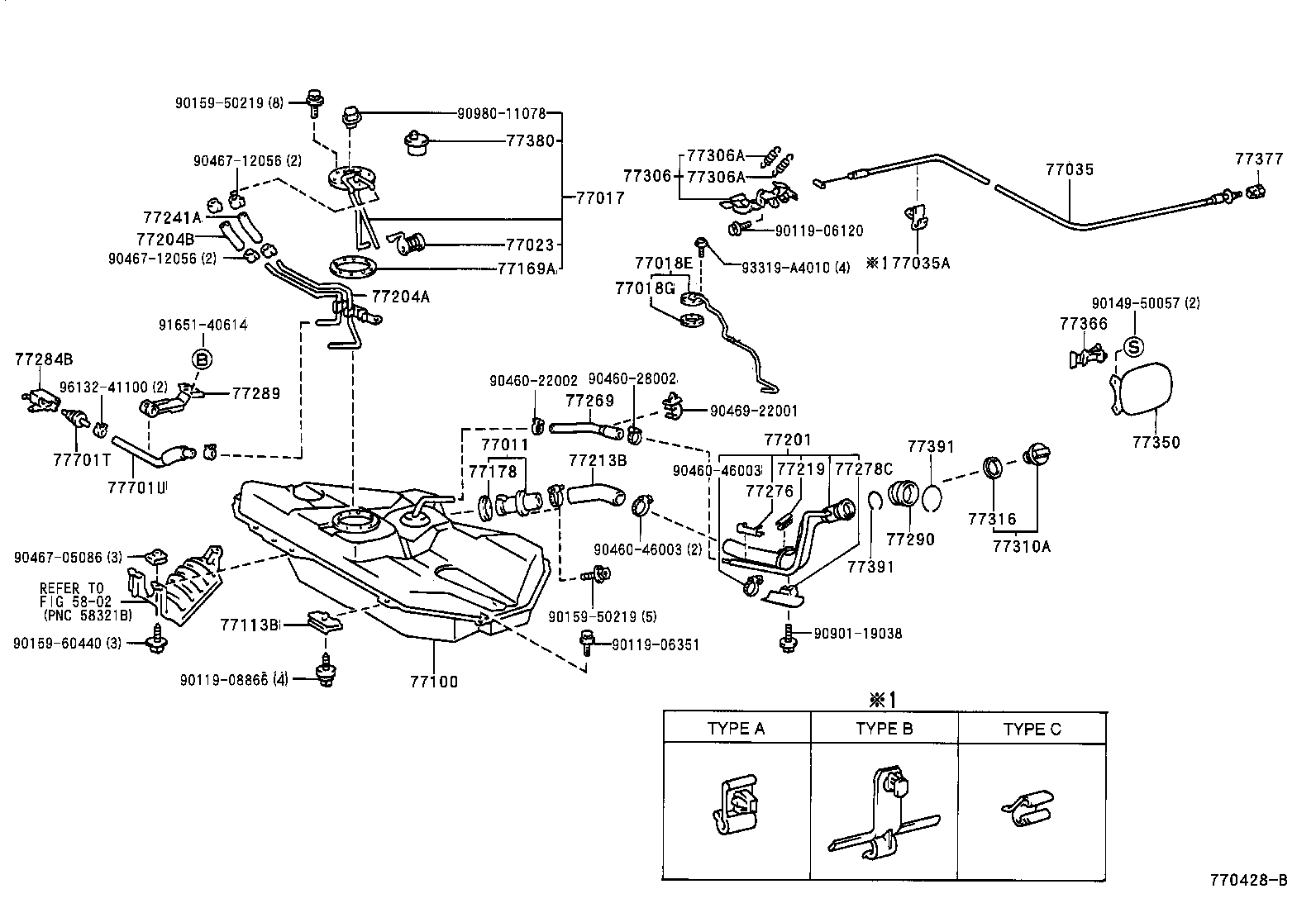

ILLUST NO. 1 OF 2(9704- )NP90
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-10060 |
EP9#,NP90 |
1 | ||
| 77011-16100 |
EP91,NP90 |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-16140 |
NP90 |
1 | ||
| 77017-16170 |
NP90 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-16060 |
EP91,NP90 |
1 | ||
| 77018G - GASKET, FUEL TANK EVAP/VENT TUBE | ||||
| 77179-26010 |
EP91,NP90 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32010 |
NP90 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-10090 |
EP9#,NP90 |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 69749-12010 |
EP9#,NP90 TYPE A:ο½²οΎο½½οΎο½»οΎο½ΌοΎο½³ |
1 | ||
| 90463-05004 |
EP9#,NP90 TYPE C:ο½²οΎο½½οΎο½»οΎο½ΌοΎο½³ |
1 | ||
| 82711-12800 |
EP9#,NP90 TYPE B:ο½²οΎο½½οΎο½»οΎο½ΌοΎο½³ |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-16250 |
EP91,NP90 |
1 | ||
| 77001-16220 |
EP91,NP90 |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-10020 |
EP91,NP90 |
4 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-16030 |
EP91,NP90 |
1 | ||
| 77169-20050 |
EP91,NP90 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
EP9#,NP90 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-10200 |
EP91,NP90 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-16020 |
NP90 |
1 | ||
| 77204B - HOSE, FUEL(FOR FUEL RETURN) | ||||
| 95333-06010 |
NP90 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-10090 |
EP91,NP90 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-10020 |
EP91,NP90 |
2 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
NP90 *H,L=120,ε εΎ=7.6 |
1 | ||
| 77269 - TUBE, FUEL CONNECTING | ||||
| 77269-10010 |
EP91,NP90 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-10050 |
EP91,NP90 |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-10030 |
EP91,NP90 |
1 | ||
| 77284B - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-32020 |
NP90 |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-10011 |
NP90 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12110 |
EP9#,NP90 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-12060 |
EP9#,NP90 |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09034 |
EP9#,NP90 |
2 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09034 |
EP9#,NP90 |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-32011 |
NP90 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
EP9#,NP90 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-10070 |
EP9#,NP90 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-10030 |
EP9#,NP90 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
EP9#,NP90 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
EP9#,NP90 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
EP9#,NP90 ε€ε΄ |
1 | ||
| 77391-12010 |
EP9#,NP90 ε ε΄ |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
EP9#,NP90 ε€ε΄ |
1 | ||
| 77391-12010 |
EP9#,NP90 ε ε΄ |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10082 |
NP90 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 77249-10080 |
NP90 |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90119-06351 | ||||
| 90119-08866 | ||||
| 90149-50057 | ||||
| 90159-50219 | ||||
| 90159-60440 | ||||
| 90460-22002 | ||||
| 90460-28002 | ||||
| 90460-46003 | ||||
| 90467-05086 | ||||
| 90467-12056 | ||||
| 90469-22001 | ||||
| 90901-19038 | ||||
| 90980-11078 | ||||
| 91651-40614 | ||||
| 93319-A4010 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 5802 | ||||
ILLUST NO. 2 OF 2(9601- )NP90
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-10320 |
NP90 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95333-08020 |
NP90 *H,L=160,ε εΎ=7.6 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 77259-10040 |
NP90 ι·γ=140 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-10290 |
NP90 |
1 | ||
| 77255G - HOSE, FUEL RETURN, NO.1 (FOR FUEL RETURN TUBE) | ||||
| 90447-12123 |
NP90 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06020 |
NP90 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-10020 |
EP9#,NP90 |
3 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-10030 |
EP9#,NP90 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-10040 |
EP9#,NP90 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-10020 |
EP9#,NP90 |
1 | ||
| Common parts | ||||
| 90119-06642 | ||||
| 96132-30600 | ||||
| 96132-41100 | ||||
| 96132-41300 | ||||
