NP90-AHMDS (1996)
Toyota Starlet
ILLUST NO. 1 OF 3(9601- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-10640 |
EP9#,NP90..5D..(CARAT,RFL,RFLF,RFLX) |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
EP9#,NP90..5D |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-10640 |
EP9#,NP90..5D..(CARAT,RFL,RFLF,RFLX) |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-10090 |
EP9#,NP90..5D |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-10090 |
EP9#,NP90..5D |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-10060 |
EP9#,NP90 |
2 | ||
| 67489A - SEAL, FRONT DOOR FRONT LOWER FRAME COVER | ||||
| 67489-10020 |
EP9#,NP90 |
2 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-10060 |
EP91,NP90..RFL |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-10060 |
EP91,NP90..RFL |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-10170 |
EP9#,NP90..5D |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-10170 |
EP9#,NP90..5D |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-10220 |
EP9#,NP90..5D |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-10220 |
EP9#,NP90..5D |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
EP9#,NP90..5D |
17 | ||
| 67867-12150 |
EP9#,NP90..5D |
16 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
EP9#,NP90..5D |
17 | ||
| 67867-12150 |
EP9#,NP90 |
18 | ||
| 67869E - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
EP9#,NP90..5D |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-10430 |
EP9#,NP90..5D..(RFL,RFLF,RFLX) *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-10390 |
EP9#,NP90..5D..(RFL,RFLF,RFLX) *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-10210 |
EP9#,NP90..5D |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-10060 |
EP9#,NP90..5D |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-10160 |
EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX) |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68212-16030 |
EP9#,NP90..5D |
12 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-10140 |
EP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX) |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-10070 |
EP9#,NP90 |
1 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-12030 |
EP9#,NP90 |
2 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-10070 |
EP9#,NP90 |
1 | ||
| Common parts | ||||
| 90159-60490 | ||||
| 90159-60550 | ||||
| 90333-30002 | ||||
| 90950-01429 | ||||
| 91651-60614 | ||||
ILLUST NO. 3 OF 3(9601- )
ﾄﾘﾑｺｰﾄﾞ
| Part # | Description | Qty | Price |
|---|

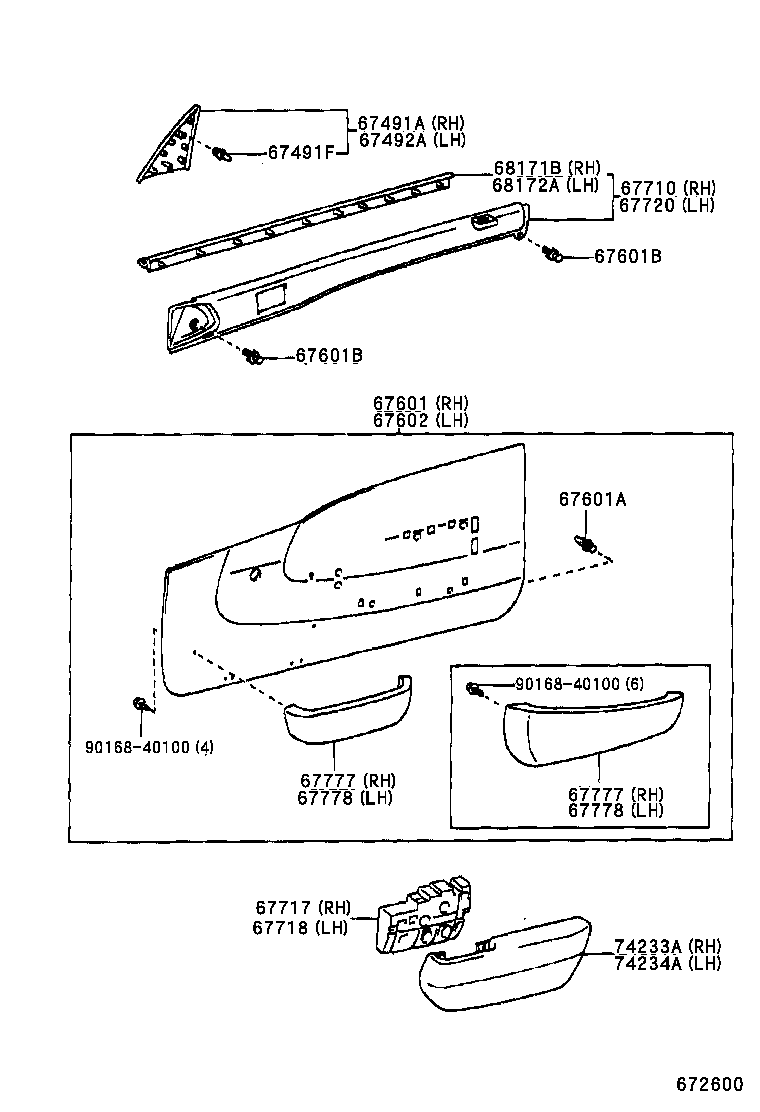

ILLUST NO. 2 OF 3(9601- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-10150 |
EP9#,NP90 |
1 | ||
| 67491F - CLIP(FOR DOOR TRIM) | ||||
| 67771-30070 |
EP9#,NP90 |
2 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-10150 |
EP9#,NP90 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1M800B0 |
EP91,NP90..5D..RFL LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16120 |
EP9#,NP90..5D ｸﾞﾚｰ |
16 | ||
| 90467-08179 |
EP9#,NP90 ｲｴﾛｰ |
6 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07152B1 |
EP9#,NP90 BLUISH GRAY,TRIM1# |
4 | ||
| 90467-07152B1 |
EP9#,NP90..5D BLUISH GRAY,TRIM1# |
3 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07152B1 |
EP9#,NP90 BLUISH GRAY,TRIM1# |
4 | ||
| 90467-07152B1 |
EP9#,NP90..5D BLUISH GRAY,TRIM1# |
3 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67050-10340B0 |
EP91,NP90..5D..RFL LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67710 - PANEL ASSY, FRONT DOOR TRIM, UPPER RH | ||||
| 67710-10040B0 |
EP9#,NP90..5D BLUISH GRAY,TRIM1# |
1 | ||
| 67717 - PAD, FRONT DOOR TRIM, CENTER RH | ||||
| 67717-10040 |
EP9#,NP90..5D |
1 | ||
| 67718 - PAD, FRONT DOOR TRIM, CENTER LH | ||||
| 67718-10020 |
EP9#,NP90..5D |
1 | ||
| 67720 - PANEL ASSY, FRONT DOOR TRIM, UPPER LH | ||||
| 67720-10040B0 |
EP9#,NP90..5D BLUISH GRAY,TRIM1# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-10050B2 |
EP9#,NP90..CARAT,RFL,RFLF LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67777-10050B2 |
EP9#,NP90..RFL,RFLF LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-10050B2 |
EP9#,NP90..CARAT,RFL,RFLF LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67777-10050B2 |
EP9#,NP90..RFL,RFLF LT.BLUISH GRAY,TRIM1# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-10140 |
EP9#,NP90..5D |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-10120 |
EP9#,NP90..5D |
1 | ||
| 74233A - PANEL, FRONT DOOR ARMREST BASE, LOWER RH | ||||
| 74233-10030B0 |
EP9#,NP90..5D..(RFL,RFLF,RFLX) LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74234A - PANEL, FRONT DOOR ARMREST BASE, LOWER LH | ||||
| 74234-10030B0 |
EP9#,NP90..5D..(RFL,RFLF,RFLX) LT.BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90168-40100 | ||||
