NP90-AGPDS (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 1N
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )CARAT,RFL,RFLF,RFLX

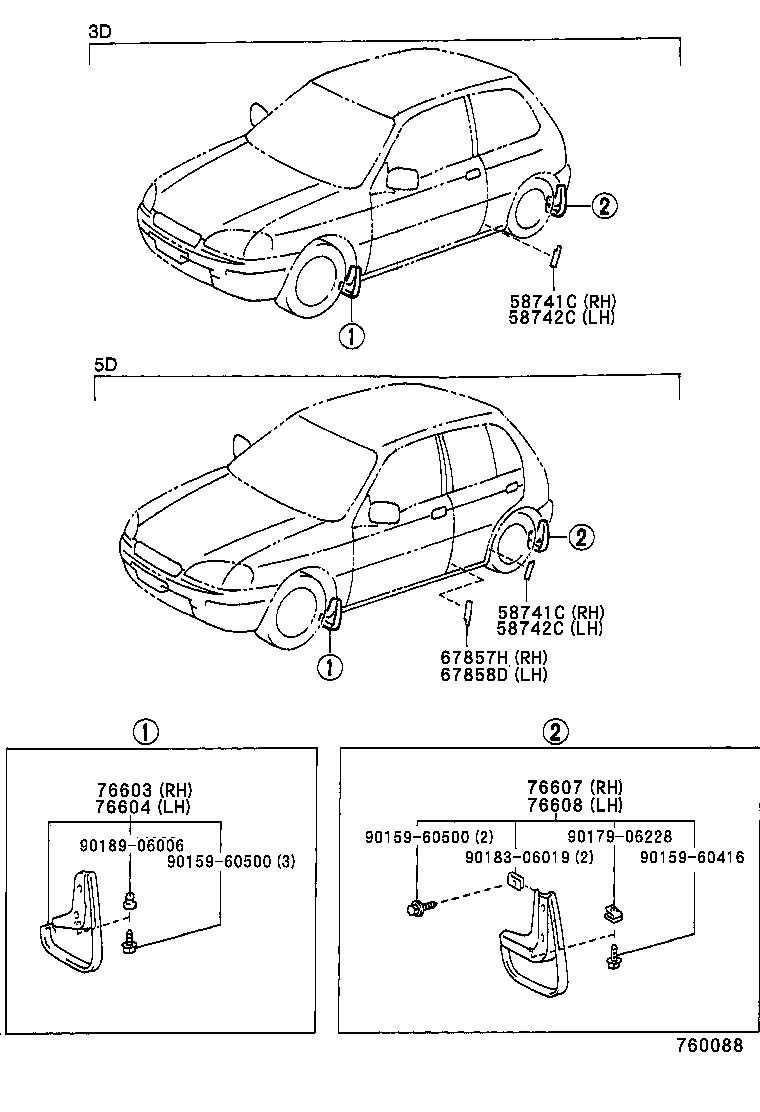

Click highlighted areas on diagram

diagram 58741C 58741C 58742C 58742C 67857H 67858D 76603 76604 76607 76608 9015960416 9015960500 9015960500 9017906228 9018306019 9018906006
Part # Description Qty Price
58741C - PROTECTOR, QUARTER PANEL, RH
58741-10050

EP9#,NP90..3D..(CARAT,GLZS,RFL,RFLF,RFLX)

 1
58741C - PROTECTOR, QUARTER PANEL, RH
58741-10050

EP9#,NP90..3D..(CARAT,GLZS,RFL,RFLF,RFLX)

 1
58742C - PROTECTOR, QUARTER PANEL, LH
58742-10050

EP9#,NP90..3D..(CARAT,GLZS,RFL,RFLF,RFLX)

 1
58742C - PROTECTOR, QUARTER PANEL, LH
58742-10050

EP9#,NP90..3D..(CARAT,GLZS,RFL,RFLF,RFLX)

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-19305

EP9#,NP90..CARAT,RFL,RFLF,RFLX

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-19305

EP9#,NP90..CARAT,RFL,RFLF,RFLX

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-19595

EP9#,NP90..RFL,RFLF,RFLX

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-19595

EP9#,NP90..RFL,RFLF,RFLX

 1
Common parts
90159-60416
90159-60500
90179-06228
90183-06019
90189-06006
