NP80-AHPDS (1989)

Toyota Starlet

Production Dec 1989 - Sep 1995
Engine 1N
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

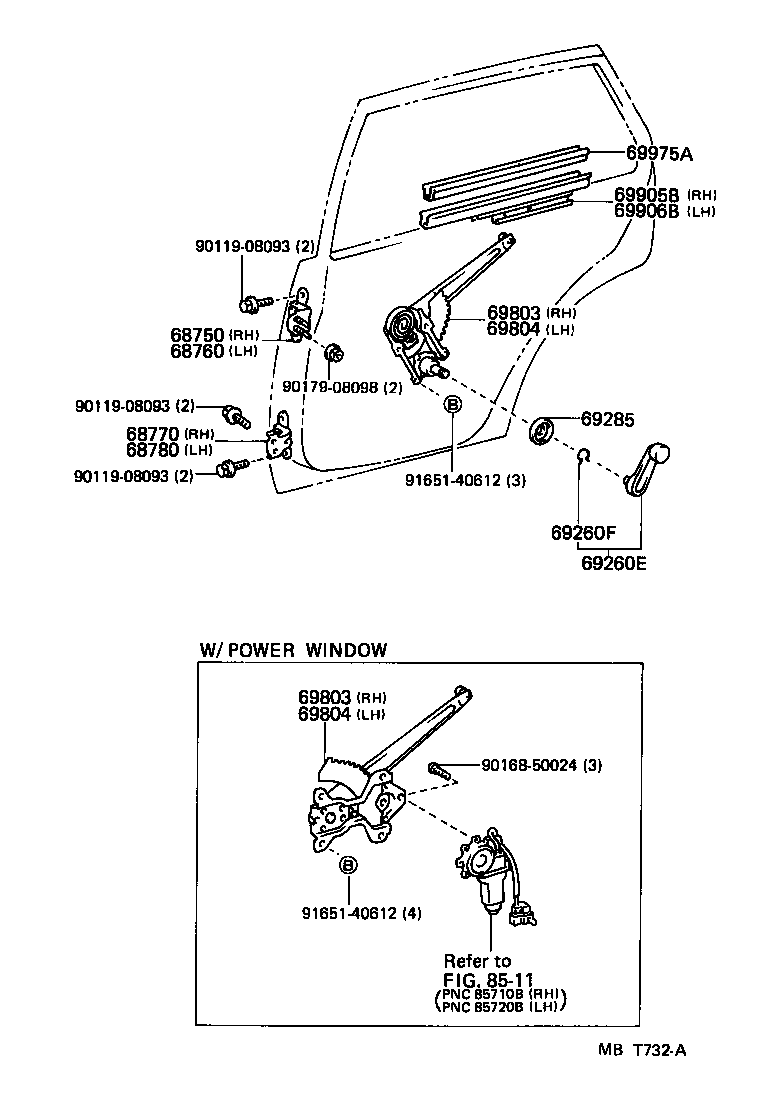

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69260F 69285 69803 69803 69804 69804 69905B 69906B 69975A 8511 9011908093 9011908093 9011908093 9016850024 9017908098 9165140612 9165140612
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-10020

EP8#,NP80..5D

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-10020

EP8#,NP80..5D

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-20040

EP8#,NP80..5D

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-20040

EP8#,NP80..5D

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-1004043

EP85..5D..CBR;EP85..5D..SOLL..EFI;EP82,NP80..5D..(SI,SOL,SOLL,X)

GRAY,TRIM1#

 2
69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

EP8#,NP80..5D

 2
69285 - PLATE, DOOR VENT WINDOW CONTROL HANDLE
69285-2201008

EP82,NP80..5D..SOL

NATURAL WHITE,TRIM1#

 2
69285-2201008

EP82,NP80..5D..SOL

NATURAL WHITE,TRIM1#

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-10040

EP85..5D..CBR;EP85..5D..SOLL..EFI;EP82,NP80..5D..(SI,SOL,SOLL,X)

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-10040

EP85..5D..CBR;EP85..5D..SOLL..EFI;EP82,NP80..5D..(SI,SOL,SOLL,X)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-10040

EP85..5D..CBR;EP85..5D..SOLL..EFI;EP82,NP80..5D..(SI,SOL,SOLL,X)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-10040

EP85..5D..CBR;EP85..5D..SOLL..EFI;EP82,NP80..5D..(SI,SOL,SOLL,X)

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-10060

EP8#,NP80..5D

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-10060

EP8#,NP80..5D

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-10010

EP8#,NP80..5D

 2
Common parts
90119-08093
90168-50024
90179-08098
91651-40612
Linked diagrams
8511
