NP80-AHPDS (1989)
Toyota Starlet
Production
Dec 1989
-
Sep 1995
Engine
1N
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8912-9405)NP80

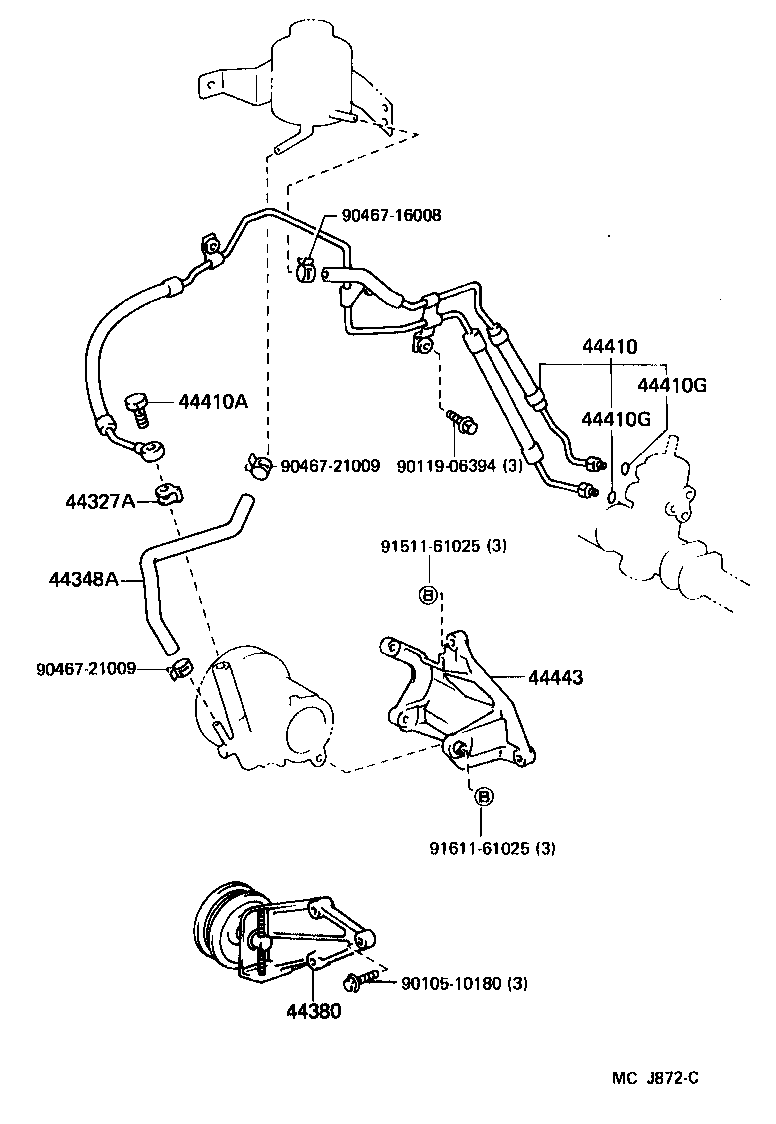

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
EP8#,NP80 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-10070 |
NP80 |
1 | ||
| 44348-10071 |
NP80 |
1 | ||
| 44380 - PULLEY ASSY, POWER STEERING IDLE W/BRACKET | ||||
| 44380-16010 |
NP80 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-10060 |
NP80 |
1 | ||
| 44410-10061 |
NP80 |
1 | ||
| 44410-10063 |
NP80 |
1 | ||
| 44410-10160 |
NP80..SOL ｱﾘ(ABS) |
1 | ||
| 44410-10062 |
NP80 |
1 | ||
| 44410-16142 |
NP80..SOL ｱﾘ(ABS) |
1 | ||
| 44410-10150 |
NP80..SOL |
1 | ||
| 44410-10151 |
NP80 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
EP8#,NP80 |
1 | ||
| 44410G - RING, O(FOR PRESSURE FEED TUBE) | ||||
| 90301-07009 |
EP8#,NP80 |
2 | ||
| 44410G - RING, O(FOR PRESSURE FEED TUBE) | ||||
| 90301-07009 |
EP8#,NP80 |
2 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-16030 |
NP80 |
1 | ||
| Common parts | ||||
| 90105-10180 | ||||
| 90119-06394 | ||||
| 90467-16008 | ||||
| 90467-21009 | ||||
| 91511-61025 | ||||
| 91611-61025 | ||||
(9405- )NP80

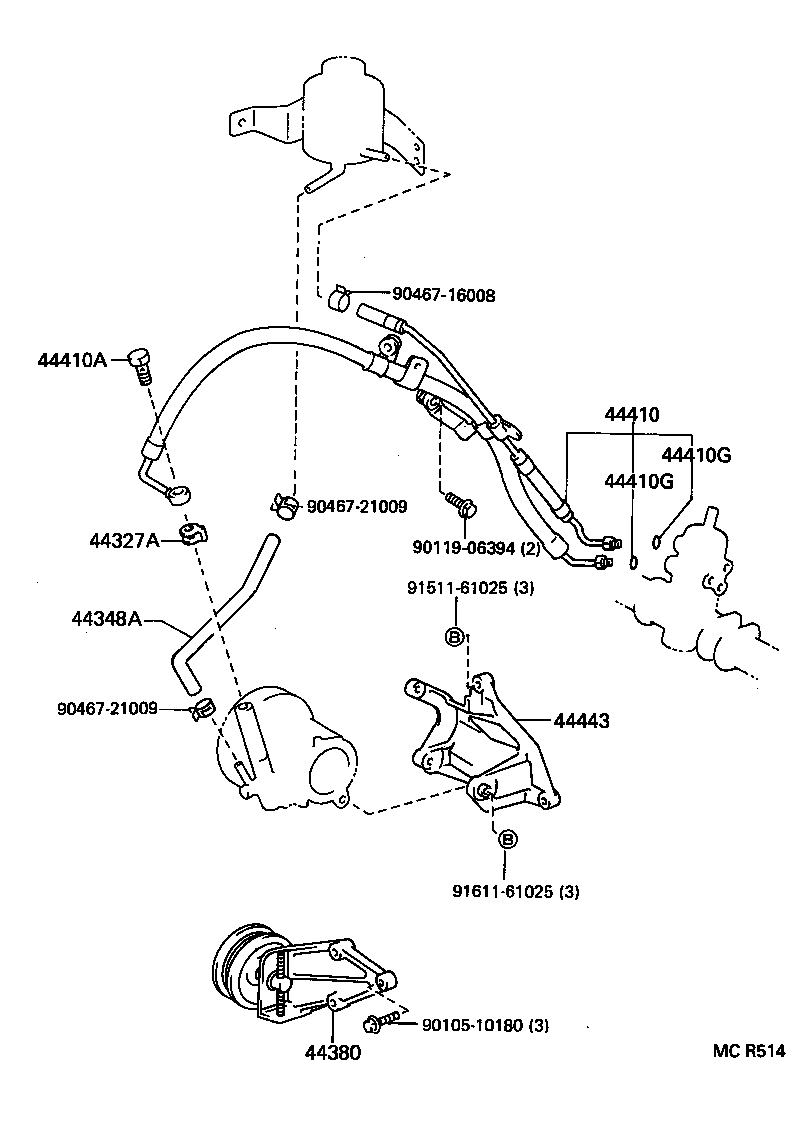

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
EP8#,NP80 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-10070 |
NP80 |
1 | ||
| 44348-10071 |
NP80 |
1 | ||
| 44380 - PULLEY ASSY, POWER STEERING IDLE W/BRACKET | ||||
| 44380-16010 |
NP80 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-10060 |
NP80 |
1 | ||
| 44410-10061 |
NP80 |
1 | ||
| 44410-10063 |
NP80 |
1 | ||
| 44410-10160 |
NP80..SOL ｱﾘ(ABS) |
1 | ||
| 44410-10062 |
NP80 |
1 | ||
| 44410-16142 |
NP80..SOL ｱﾘ(ABS) |
1 | ||
| 44410-10150 |
NP80..SOL |
1 | ||
| 44410-10151 |
NP80 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
EP8#,NP80 |
1 | ||
| 44410G - RING, O(FOR PRESSURE FEED TUBE) | ||||
| 90301-07009 |
EP8#,NP80 |
2 | ||
| 44410G - RING, O(FOR PRESSURE FEED TUBE) | ||||
| 90301-07009 |
EP8#,NP80 |
2 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-16030 |
NP80 |
1 | ||
| Common parts | ||||
| 90105-10180 | ||||
| 90119-06394 | ||||
| 90467-16008 | ||||
| 90467-21009 | ||||
| 91511-61025 | ||||
| 91611-61025 | ||||
