NP80-AHMGS (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1992
Engine
1N
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912-9201)

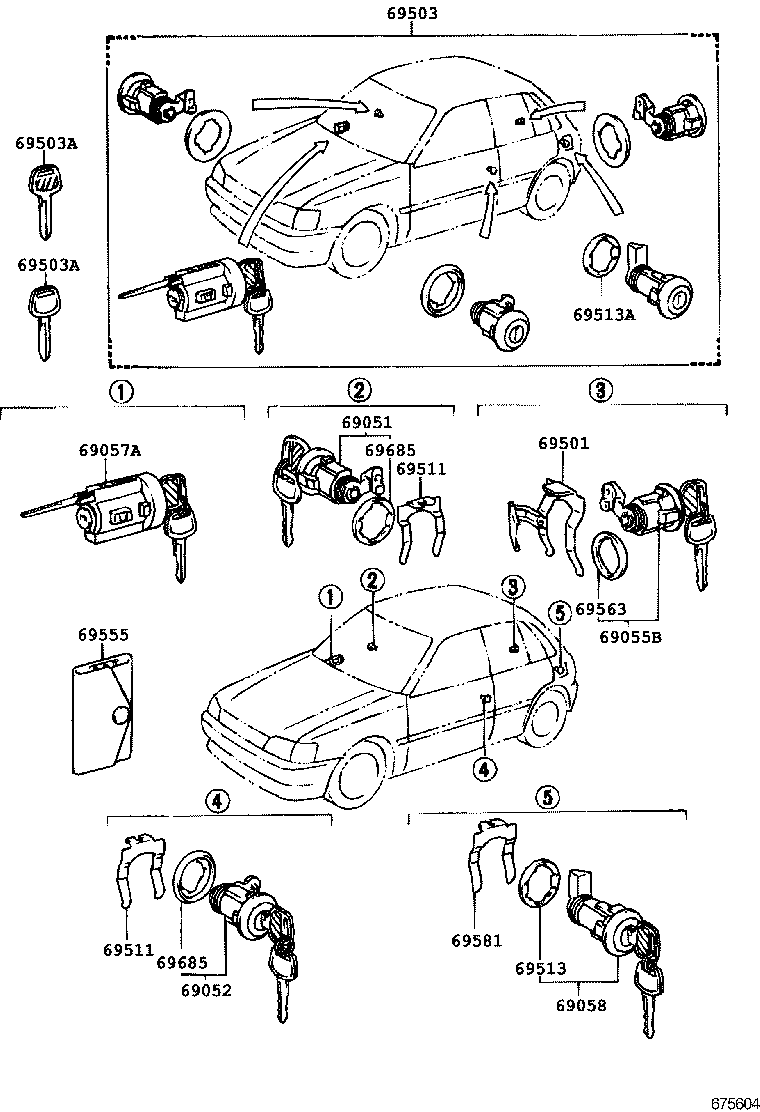

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-10180 |
EP8#,NP80 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-10180 |
EP8#,NP80 |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-10170 |
EP8#,NP80 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-10160 |
EP8#,NP80 |
1 | ||
| 69501 - RETAINER SUB-ASSY, BACK DOOR CYLINDER | ||||
| 69501-10030 |
EP8#,NP80 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-10240 |
EP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00164 |
EP8#,NP80 ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00163 |
EP8#,NP80 ﾏｽﾀｰｷｰ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00164 |
EP8#,NP80 ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00163 |
EP8#,NP80 ﾏｽﾀｰｷｰ |
1 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-32020 |
EP8#,NP80 |
2 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-32020 |
EP8#,NP80 |
2 | ||
| 69555 - COVER, KEY | ||||
| 69555-17020 |
EP8#,NP80 |
1 | ||
