NP80-AHMGS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )EP82,NP80

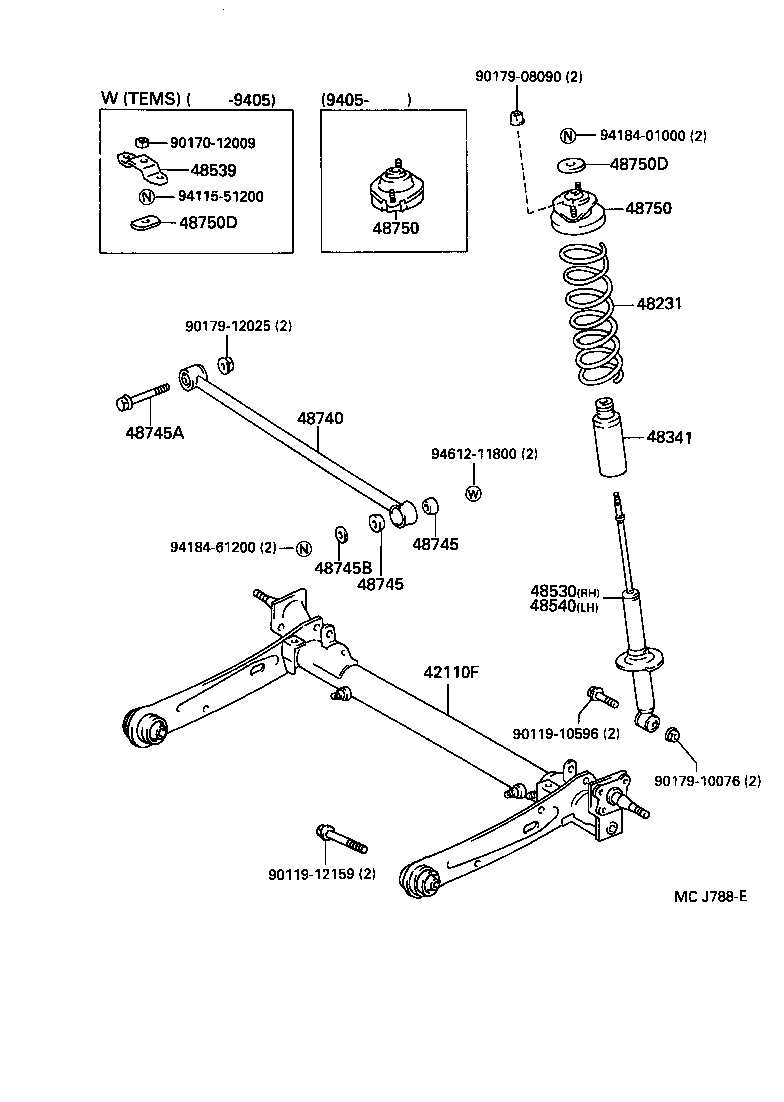

Click highlighted areas on diagram

diagram 42110F 48231 48341 48530 48539 48540 48740 48745 48745 48745A 48745B 48750 48750 48750D 48750D 9011910596 9011912159 9017012009 9017908090 9017910076 9017912025 9411551200 9418401000 9418461200 9461211800
Part # Description Qty Price
42110F - BEAM ASSY, REAR AXLE
42110-10080

NP80;EP82..CAN,CANSI,GI,GT,S,SI,X

 1
48231 - SPRING, COIL, REAR
48231-10220

EP82,NP80..X

 2
48341 - BUMPER, REAR SPRING
48341-10090

EP82,NP80

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-10110

NP80

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-10110

NP80

 1
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-10020

EP82,NP80

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-18015

EP82,NP80

 2
48745 - BUSH, LATERAL CONTROL ROD
90385-18015

EP82,NP80

 2
48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD)
90105-12070

EP82,NP80

 1
90105-12212

EP82,NP80

 1
48745B - WASHER, LATERAL CONTROL ROD CUSHION
90201-12037

EP8#,NP80

 1
48750 - SUPPORT ASSY, REAR SUSPENSION
48750-10030

EP82,NP80

 2
48750 - SUPPORT ASSY, REAR SUSPENSION
48750-10030

EP82,NP80

 2
48750D - RETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
90948-02082

EP82,NP80

 2
48750D - RETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
90948-02082

EP82,NP80

 2
Common parts
90119-10596
90119-12159
90170-12009
90179-08090
90179-10076
90179-12025
94115-51200
94184-01000
94184-61200
94612-11800
