NP80-AHMGS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9409)EP82,NP80

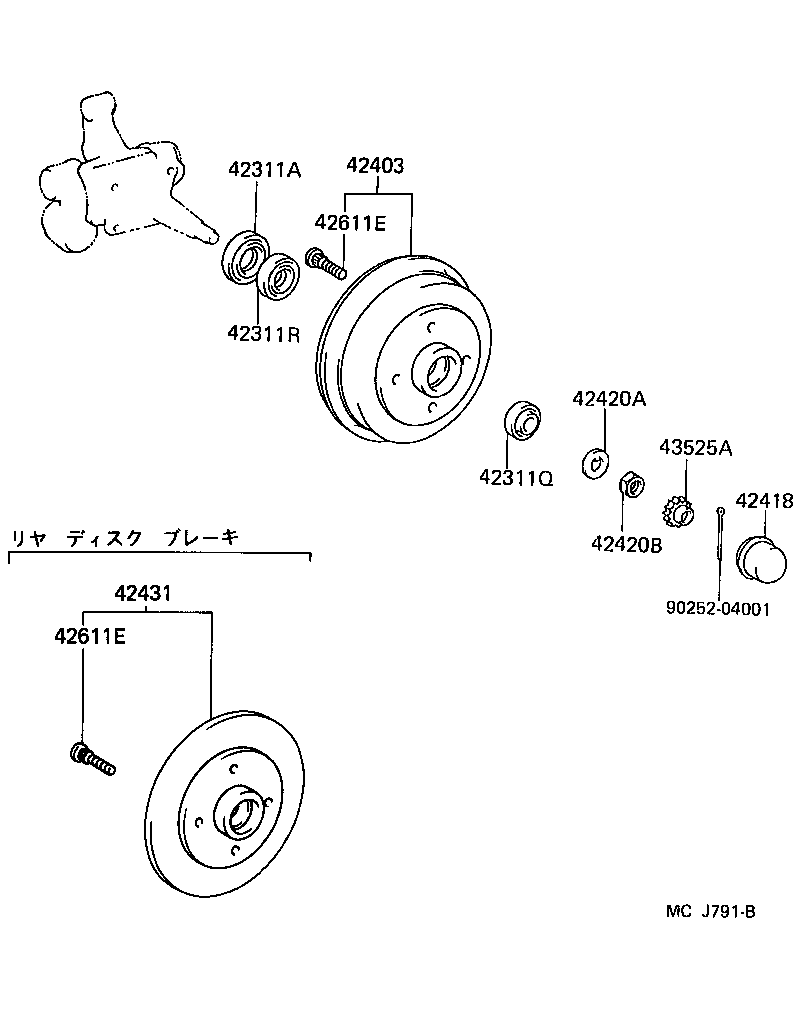

Click highlighted areas on diagram

diagram 42311A 42311Q 42311R 42403 42418 42420A 42420B 42431 42611E 42611E 43525A 9025204001
Part # Description Qty Price
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-38037

EP82,NP80

 2
42311Q - BEARING (FOR REAR AXLE SHAFT OUTER)
90368-17017

EP82,NP80

 2
42311R - BEARING (FOR REAR AXLE SHAFT INNER)
90366-27001

EP82,NP80

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42403-10020

EP82,NP80..CBR,DSL,EFI

 2
42418 - CAP, REAR HUB GREASE
43514-10030

EP82,NP80

 2
42420A - WASHER, CLAW (FOR REAR AXLE SHAFT)
90214-16010

EP82,NP80

 2
42420B - NUT (FOR REAR AXLE SHAFT)
90170-16137

EP82,NP80

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02047

EP8#,NP80

 8
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02047

EP8#,NP80

 8
43525A - CAP, REAR WHEEL ADJUSTING LOCK
43525-20011

EP82,NP80

 2
Common parts
90252-04001
