NP80-AHMGS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )1N

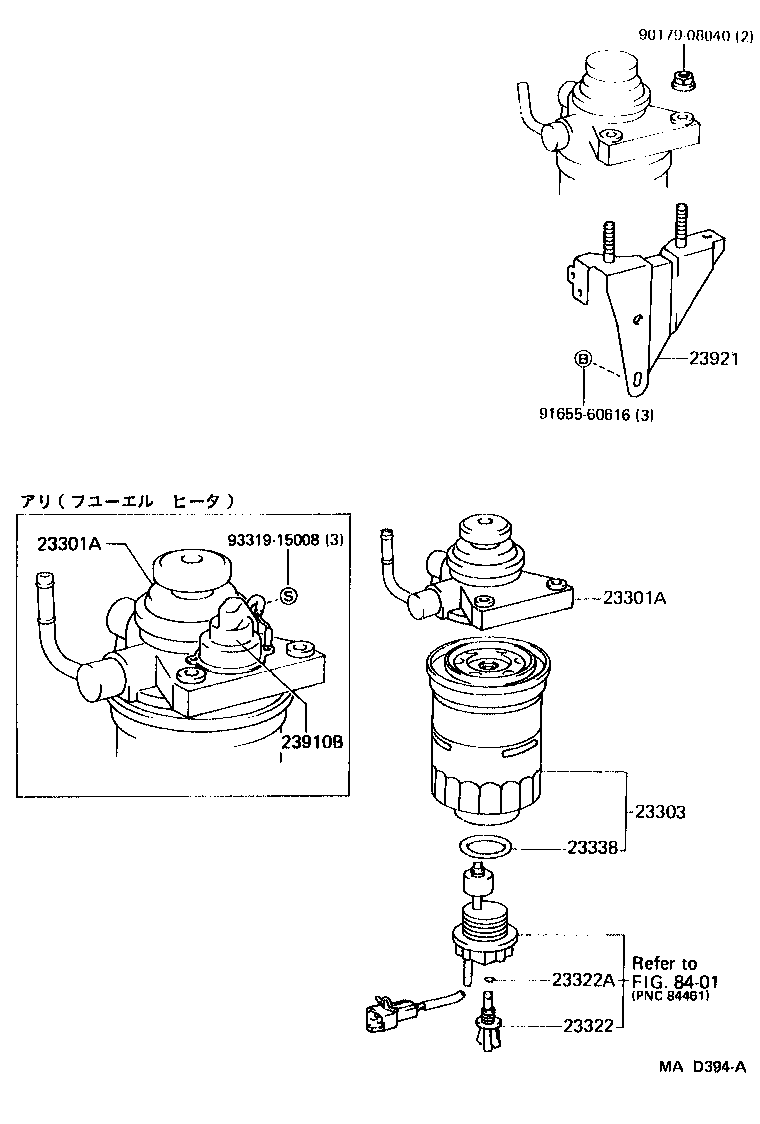

Click highlighted areas on diagram

diagram 23301A 23301A 23303 23322 23322A 23338 23910B 23921 8401 9017908040 9165560616 9331915008
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-55050

1N..NP80

 1
23301-55060

1N..NP80

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23301A - CAP ASSY, FUEL FILTER
23301-55050

1N..NP80

 1
23301-55060

1N..NP80

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

1N..NP80

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

1N..NP80

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1N..NP80

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1N..NP80

 1
23910B - HEATER ASSY, FUEL
23910-55010

1N..NP80

 1
23921 - SUPPORT, FUEL FILTER
23921-55040

1N..NP80

 1
Common parts
90179-08040
91655-60616
93319-15008
Linked diagrams
8401
