NP80-AGPDS (1989)

Toyota Starlet

Production Dec 1989 - Sep 1995
Engine 1N
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9201-9405)CAN,S,SOL,SOLL,XLTD

Click highlighted areas on diagram

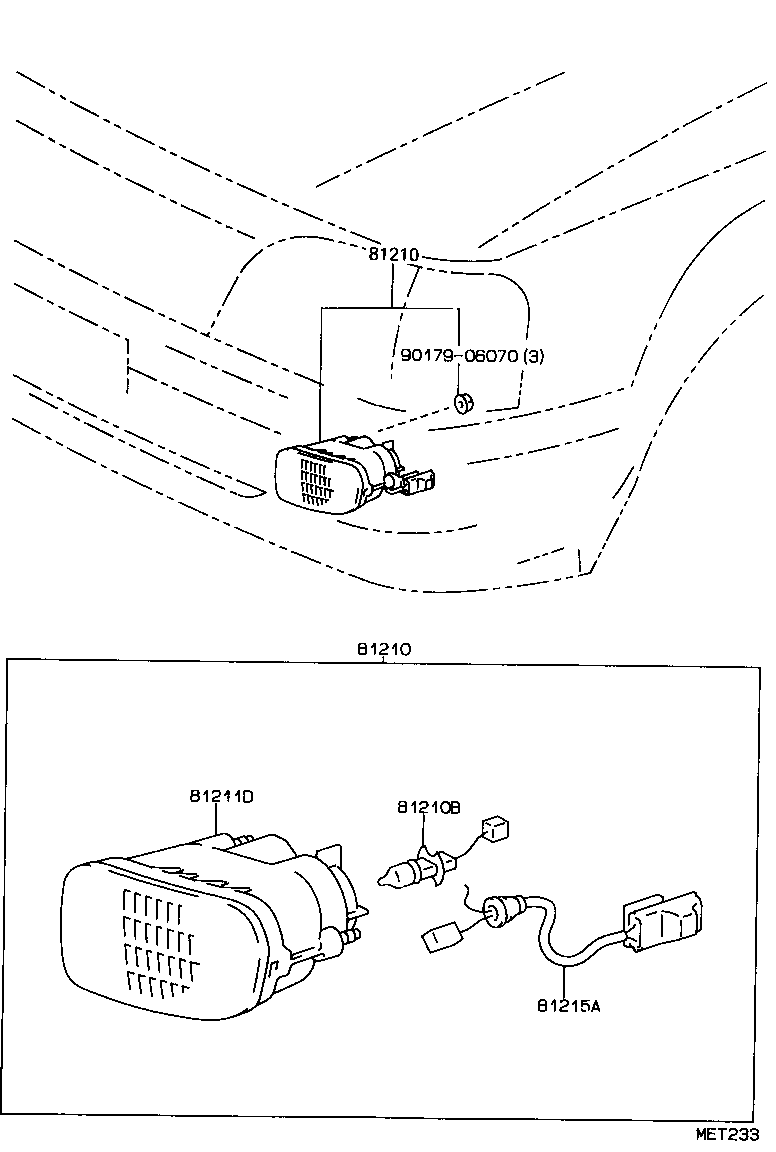

diagram 81210 81210 81210B 81211D 81215A 9017906070
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81220-19135

EP8#,NP80..CAN,S,SOL,SOLL,XLTD

左側

 1
81210-19225

EP8#,NP80..CAN,S,SOL,SOLL,XLTD

右側

 1
81210 - LAMP ASSY, FOG
81220-19135

EP8#,NP80..CAN,S,SOL,SOLL,XLTD

左側

 1
81210-19225

EP8#,NP80..CAN,S,SOL,SOLL,XLTD

右側

 1
81210B - BULB, FOG LAMP
90981-13040

EP8#,NP80

12V 35W,ﾊﾛｹﾞﾝ

 2
81211D - LAMP UNIT, FOG LAMP
81221-10030

EP8#,NP80..CAN,S,SOL,SOLL,XLTD

左側

 1
81211-10110

EP8#,NP80..CAN,S,SOL,SOLL,XLTD

右側

 1
81215A - SOCKET & WIRE, FOG LAMP
81215-10110

EP8#,NP80..CAN,S,SOL,SOLL,XLTD

 2
Common parts
90179-06070
