NP80-AGPDS (1989)
Toyota Starlet
Production
Dec 1989
-
Sep 1995
Engine
1N
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )

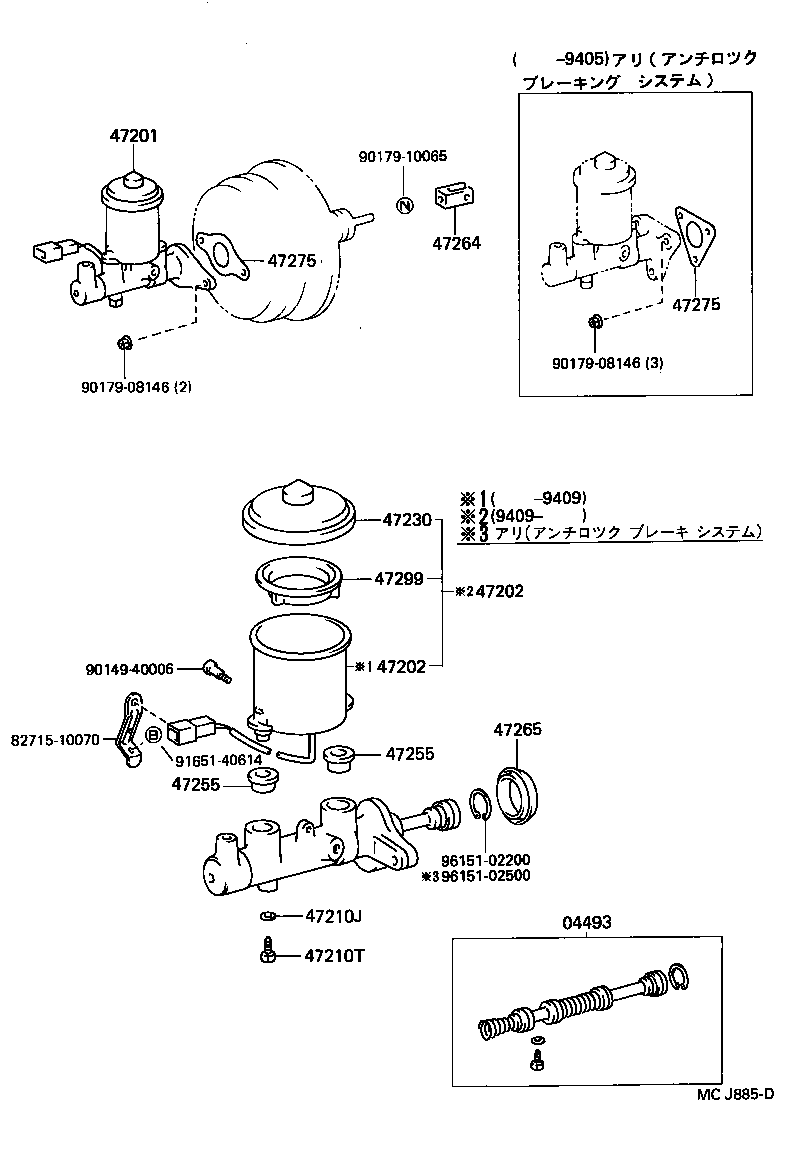

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-10120 |
EP82,NP80..DSL,EFI ｱﾘ(ABS) |
1 | ||
| 04493-10110 |
EP82,NP80..CBR,DSL,EFI |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-10130 |
EP82,NP80..CBR,DSL,EFI |
1 | ||
| 47201-10150 |
EP82,NP80..DSL,EFI ｱﾘ(ABS) |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47203-10010 |
EP8#,NP80 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47203-10010 |
EP8#,NP80 |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
EP8#,NP80 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
EP8#,NP80 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-16010 |
EP8#,NP80 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
EP8#,NP80 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
EP8#,NP80 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-20040 |
EP8#,NP80 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
EP8#,NP80 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-32010 |
EP8#,NP80 ｱﾘ(ABS) |
1 | ||
| 47275-14010 |
EP8#,NP80 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-32010 |
EP8#,NP80 ｱﾘ(ABS) |
1 | ||
| 47275-14010 |
EP8#,NP80 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-16010 |
EP8#,NP80 |
1 | ||
| Common parts | ||||
| 82715-10070 | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
| 91651-40614 | ||||
| 96151-02200 | ||||
| 96151-02500 | ||||
