NP80-AGMDS (1989)
Toyota Starlet

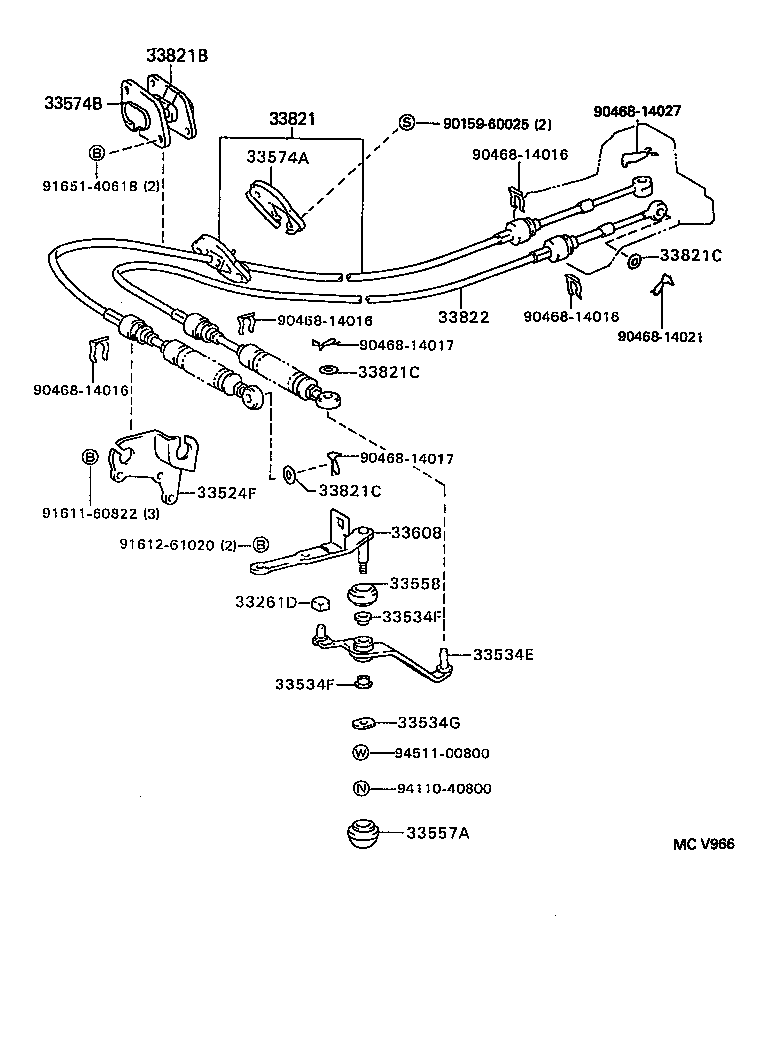

ILLUST NO. 2 OF 2(9012- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33261D - BUSH (FOR SHIFT & SELECT LEVER) | ||||
| 90389-10009 |
EP8#,NP80..MTM |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-16020 |
NP80..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-16050 |
EP8#,NP80..MTM |
1 | ||
| 33534-16010 |
NP80..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
EP8#,NP80..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
EP8#,NP80..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
EP8#,NP80..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
EP8#,NP80..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
EP8#,NP80..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-10010 |
EP8#,NP80..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-10010 |
EP8#,NP80..MTM |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-10030 |
EP8#,NP80 |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-10031 |
EP82,NP80..MTM..(CBR,DSL,EFI) |
1 | ||
| 33608-10030 |
NP80..5F |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-16150 |
EP8#,NP80..MTM CHUO HATSUJO |
1 | ||
| 33821-16140 |
EP8#,NP80..MTM NIPPON CABLE |
1 | ||
| 33821-10190 |
NP80..5F |
1 | ||
| 33821-10190 |
EP8#,NP80..MTM |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-16150 |
EP8#,NP80..MTM CHUO HATSUJO |
1 | ||
| 33821-16140 |
EP8#,NP80..MTM NIPPON CABLE |
1 | ||
| 33821-10190 |
NP80..5F |
1 | ||
| 33821-10190 |
EP8#,NP80..MTM |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-16150 |
EP8#,NP80..MTM CHUO HATSUJO |
1 | ||
| 33821-16140 |
EP8#,NP80..MTM NIPPON CABLE |
1 | ||
| 33821-10190 |
NP80..5F |
1 | ||
| 33821-10190 |
EP8#,NP80..MTM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01291 |
EP8#,NP80..MTM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08023 |
EP8#,NP80..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
EP8#,NP80..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08023 |
EP8#,NP80..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
EP8#,NP80..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08023 |
EP8#,NP80..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
EP8#,NP80..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-10060 |
NP80..5F |
1 | ||
| 33822-18021 |
EP8#,NP80..MTM |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14021 | ||||
| 90468-14027 | ||||
| 90468-14034 | ||||
| 90468-14035 | ||||
| 91611-60822 | ||||
| 91612-61020 | ||||
| 91651-40618 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

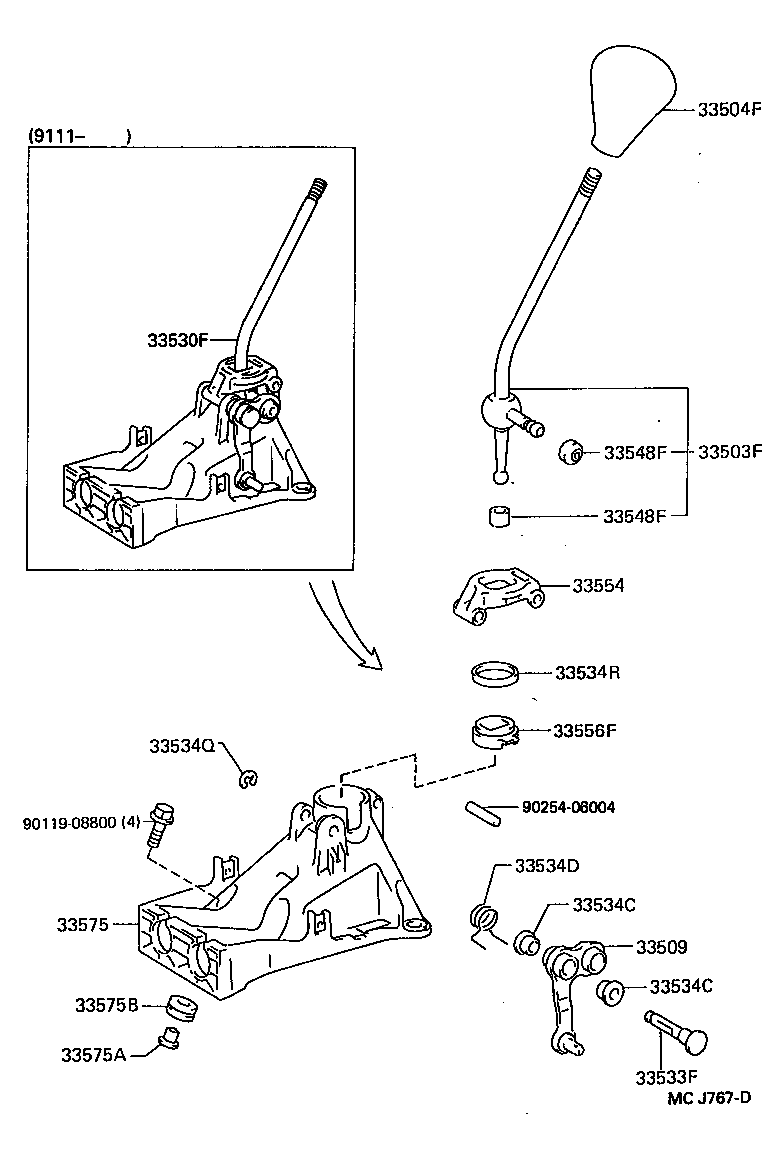

ILLUST NO. 1 OF 2(8912- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-10140 |
EP8#,NP80..MTM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2401020 |
EP85..5D..5F..XLTD;EP82,NP80..5F..(CANSI,S,SI,X) GRAY,TRIM1# |
1 | ||
| 33504-1405043 |
NP80..5F..SOL GRAY,TRIM1# |
1 | ||
| 33504-14050B0 |
NP80..5F..SOL SHADOW GRAY,TRIM1# |
1 | ||
| 33504-14050B1 |
NP80..5F..SOL DARK SMOKE GRAY,TRIM1# |
1 | ||
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-10030 |
EP8#,NP80..MTM |
1 | ||
| 33533F - SHAFT, BELLCRANK (FOR FLOOR SHIFT) | ||||
| 33533-10010 |
EP8#,NP80..MTM |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12038 |
EP8#,NP80..MTM |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12038 |
EP8#,NP80..MTM |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-23112 |
EP8#,NP80..MTM |
1 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00700 |
EP8#,NP80..MTM |
1 | ||
| 33534R - CUSHION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90540-35001 |
EP8#,NP80..MTM |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-10030 |
EP8#,NP80..MTM |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-10030 |
EP8#,NP80..MTM |
2 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-10040 |
EP8#,NP80..MTM |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-10010 |
EP8#,NP80..MTM |
1 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-10080 |
EP8#,NP80..MTM |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08085 |
EP8#,NP80..MTM |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-10029 |
EP8#,NP80..MTM |
4 | ||
| Common parts | ||||
| 90119-08800 | ||||
| 90254-06004 | ||||

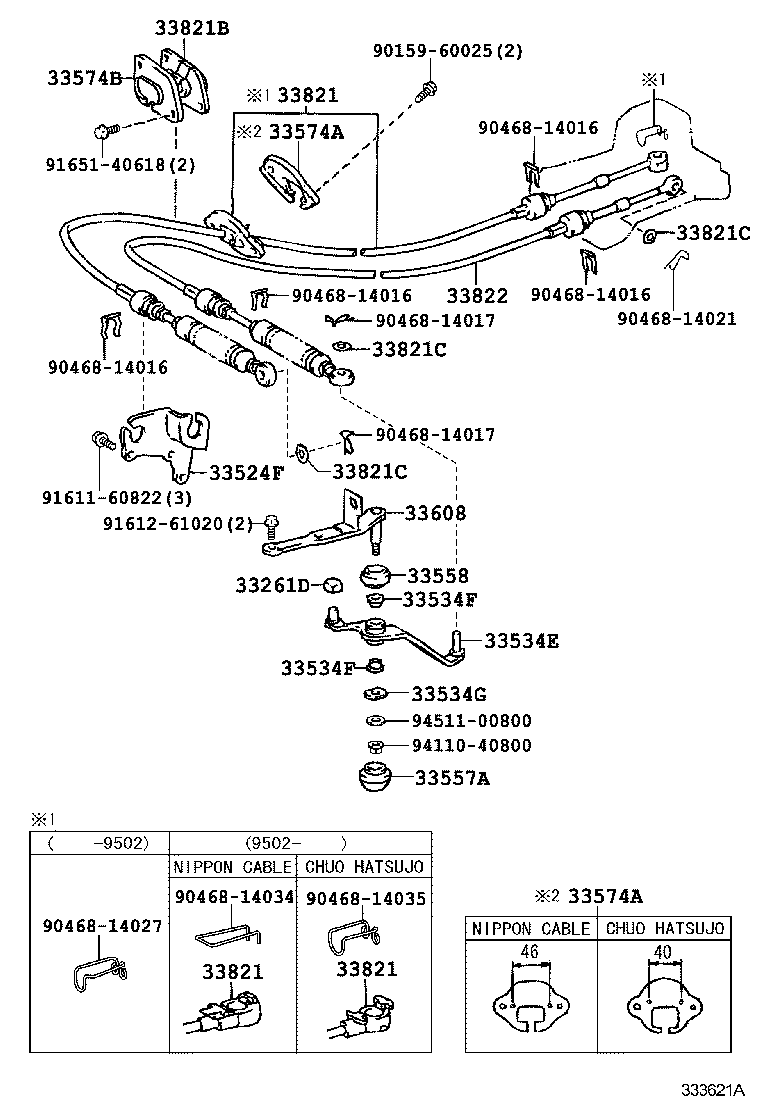

ILLUST NO. 2 OF 2(8912-9012)MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33261D - BUSH (FOR SHIFT & SELECT LEVER) | ||||
| 90389-10009 |
EP8#,NP80..MTM |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-16020 |
NP80..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-16050 |
EP8#,NP80..MTM |
1 | ||
| 33534-16010 |
NP80..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
EP8#,NP80..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
EP8#,NP80..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
EP8#,NP80..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
EP8#,NP80..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
EP8#,NP80..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-10010 |
EP8#,NP80..MTM |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-10030 |
EP8#,NP80 |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-10031 |
EP82,NP80..MTM..(CBR,DSL,EFI) |
1 | ||
| 33608-10030 |
NP80..5F |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-16150 |
EP8#,NP80..MTM CHUO HATSUJO |
1 | ||
| 33821-16140 |
EP8#,NP80..MTM NIPPON CABLE |
1 | ||
| 33821-10190 |
NP80..5F |
1 | ||
| 33821-10190 |
EP8#,NP80..MTM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01291 |
EP8#,NP80..MTM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08023 |
EP8#,NP80..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
EP8#,NP80..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08023 |
EP8#,NP80..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
EP8#,NP80..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08023 |
EP8#,NP80..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
EP8#,NP80..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-10060 |
NP80..5F |
1 | ||
| 33822-18021 |
EP8#,NP80..MTM |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14021 | ||||
| 90468-14027 | ||||
| 91611-60822 | ||||
| 91612-61020 | ||||
| 91651-40618 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
