NP80-AGMDS (1989)

Toyota Starlet

Production Dec 1989 - Sep 1995
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )1N

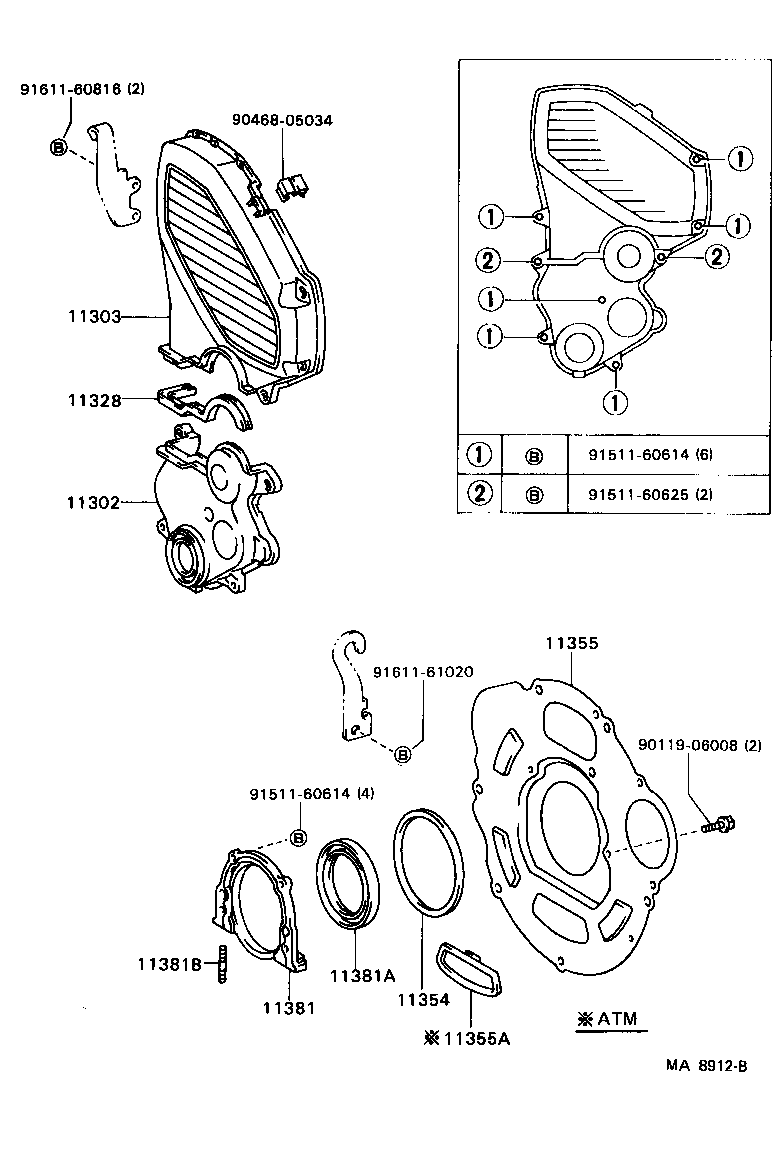

Click highlighted areas on diagram

diagram 11302 11303 11328 11354 11355 11355A 11381 11381A 11381B 9011906008 9046805034 9151160614 9151160614 9151160625 9161160816 9161161020
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-55011

1N..NP80

 1
11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11303-55020

1N..NP80

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-55010

1N..NP80

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-55010

1N..NP80

 1
11355 - PLATE, REAR END
11355-55012

1N..NP80..5F

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-55010

1N..NP80

 1
11381A - SEAL, ENGINE REAR OIL
90311-80009

1N..NP80

 1
90311-80005

1N..NP80

 1
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90116-06022

1N..NP80

 2
Common parts
90119-06008
90468-05034
91511-60614
91511-60625
91611-60816
91611-61020
