NP76V-PVMRS (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8612- )NP7#

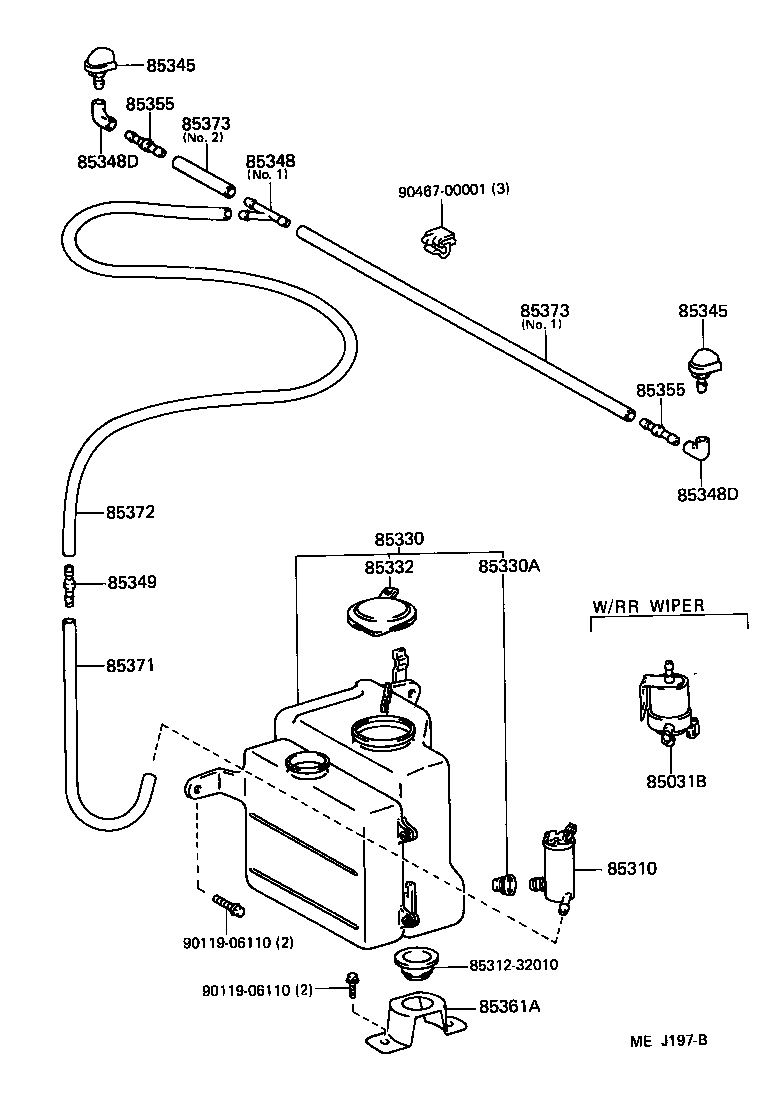

Click highlighted areas on diagram

diagram 85031B 85310 8531232010 85330 85330A 85332 85345 85345 85348 85348D 85348D 85349 85355 85355 85361A 85371 85372 85373 85373 9011906110 9011906110 9046700001
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85031-10011

EP7#,NP7#..CD,CS,DX,RI,SE,SI,TBS,TOR,XL

W/RR WIPER

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

EP7#,NP7#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-10280

NP7#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

NP7#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-12320

EP7#,NP7#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

EP7#,NP7#

NO.1

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

EP7#,NP7#

 2
85355-20070

EP7#,NP7#

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

EP7#,NP7#

 2
85355-20070

EP7#,NP7#

 2
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

NP7#..CD,CS,DX,XL

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-10130

NP7#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33382

NP7#

 1
Common parts
85312-32010
90119-06110
90467-00001
