NP76V-PVMRS (1986)
Toyota Starlet
Production
Dec 1986
-
Dec 1989
Engine
1N
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

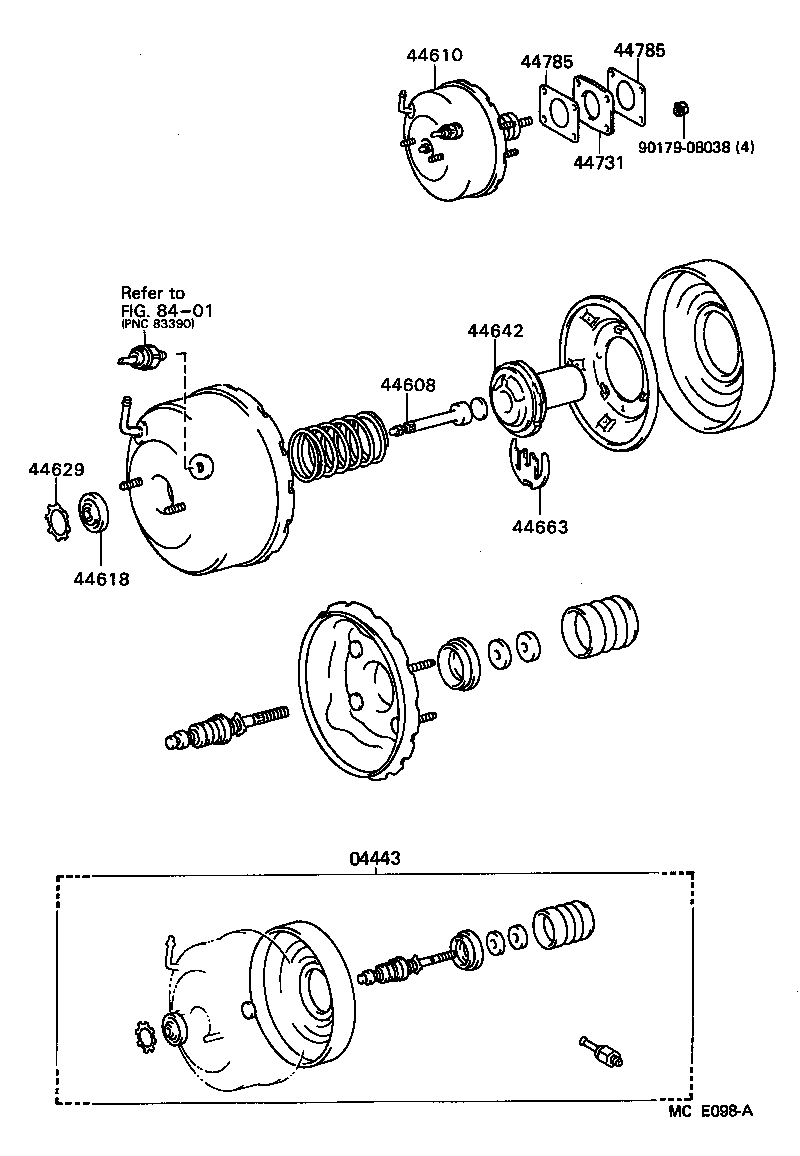

(8612- )NP7#
Click highlighted areas on diagram
6 INCHES
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-10120 |
NP7# 7 INCHES |
1 | ||
| 04443-10140 |
NP7# 6 INCHES |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
EP7#,NP7# JKC |
1 | ||
| 44606-12520 |
NP7# AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-10110 |
NP7# 6 INCHES |
1 | ||
| 44610-10120 |
NP7# 7 INCHES |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
NP7# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
NP7# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-10110 |
NP7# |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-12480 |
NP7# |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-10030 |
EP71,NP7#..DSL,TBO |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-14010 |
EP7#,NP7# |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-14010 |
EP7#,NP7# |
2 | ||
| Common parts | ||||
| 90179-08038 | ||||
| Linked diagrams | ||||
| 8401 | ||||

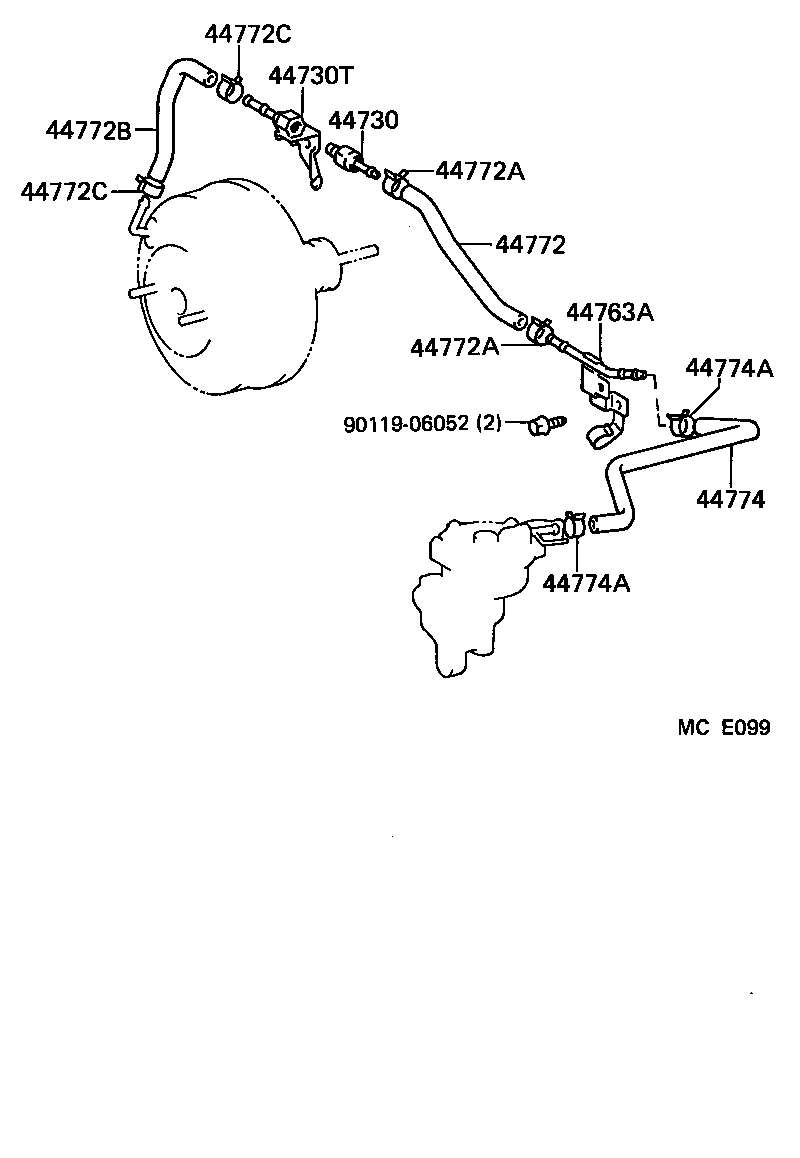

(8612- )NP7#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
NP7# |
1 | ||
| 44730-60040 |
NP7# |
1 | ||
| 44730T - UNION(FOR VACUUM CHECK VALVE) | ||||
| 90404-52027 |
NP7# |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-10010 |
NP7# |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44773-10150 |
NP7# |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16002 |
NP7# |
2 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16002 |
NP7# |
2 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-10110 |
EP71,NP7#..DSL,EFI,TBO |
1 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
EP7#,NP7# |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
EP7#,NP7# |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-10010 |
NP7# |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16002 |
NP7# |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16002 |
NP7# |
2 | ||
| Common parts | ||||
| 90119-06052 | ||||

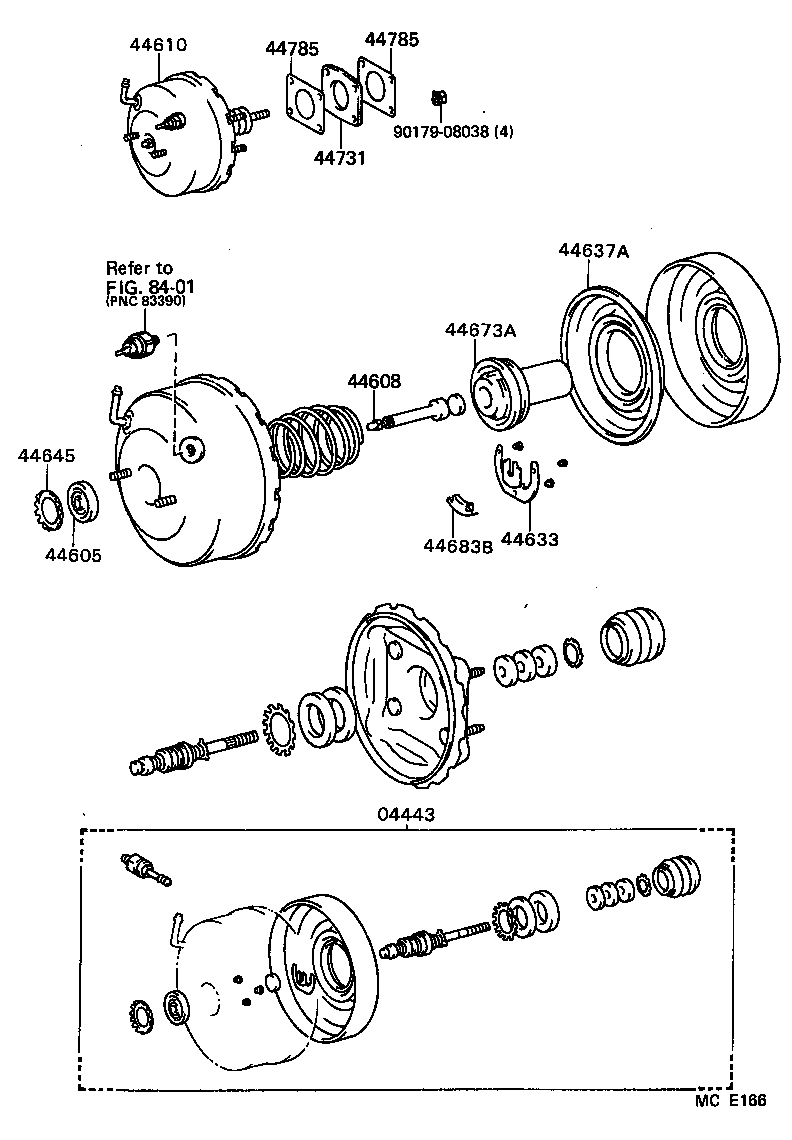

(8612- )NP7# ; (8612- )5F..TBO ; (8612-)EP71..4FC
Click highlighted areas on diagram
7 INCHES
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-10120 |
NP7# 7 INCHES |
1 | ||
| 04443-10140 |
NP7# 6 INCHES |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-10080 |
EP7#,NP7# |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
EP7#,NP7# JKC |
1 | ||
| 44606-12520 |
NP7# AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-10110 |
NP7# 6 INCHES |
1 | ||
| 44610-10120 |
NP7# 7 INCHES |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28190 |
EP71,NP7#..DSL,TBO |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-16060 |
EP71,NP7#..DSL,TBO 7 INCHES |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-10080 |
EP7#,NP7# |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-16170 |
EP71,NP7#..DSL,TBO 7 INCHES |
1 | ||
| 44683B - RETAINER, BOOSTER KEY | ||||
| 44683-28190 |
EP71,NP7#..DSL,TBO |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-10030 |
EP71,NP7#..DSL,TBO |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-14010 |
EP7#,NP7# |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-14010 |
EP7#,NP7# |
2 | ||
| Common parts | ||||
| 90179-08038 | ||||
| Linked diagrams | ||||
| 8401 | ||||
