NP76V-PVMDS (1986)
Toyota Starlet
Production
Dec 1986
-
Dec 1989
Engine
1N
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8612- )1N

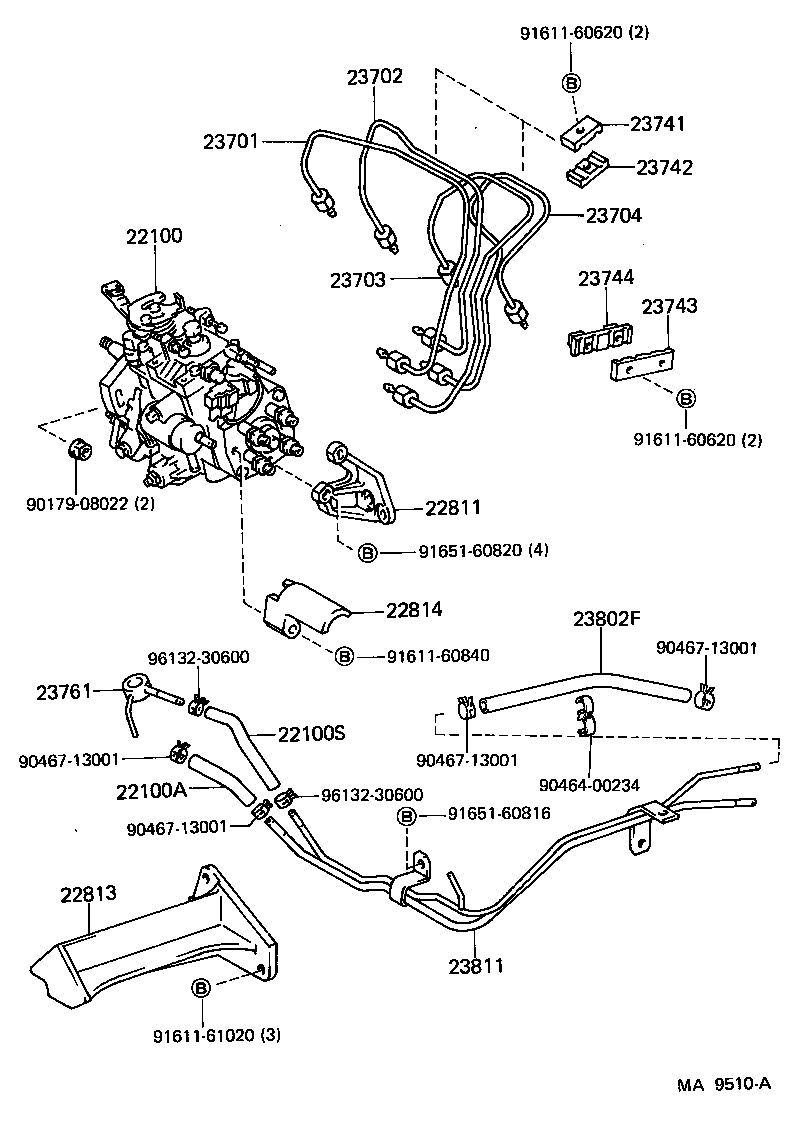

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-55140 |
1N..NP7#..5F..(CD,CS,DX,XL) |
1 | ||
| 22100-55100 |
1N..NP7#..5F..(CD,CS,DX,XL) |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 95332-08010 |
1N..NP7# *H,L=100,内径=7.6 |
1 | ||
| 95333-08010 |
1N..NP7# *H,L=100 |
1 | ||
| 22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) | ||||
| 23273-55010 |
1N..NP7# |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-55010 |
1N..NP7# |
1 | ||
| 22813 - PROTECTOR, INJECTION PUMP, NO.1 | ||||
| 22813-55010 |
1N..NP7# |
1 | ||
| 22814 - PROTECTOR, INJECTION PUMP, NO.2 | ||||
| 22814-55010 |
1N..NP7# |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-55010 |
1N..NP7# SANOU |
1 | ||
| 23701-55010 |
1N..NP7# |
1 | ||
| 23701-55020 |
1N..NP7# MARUYASU |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-55020 |
1N..NP7# MARUYASU |
1 | ||
| 23702-55010 |
1N..NP7# SANOU |
1 | ||
| 23702-55010 |
1N..NP7# |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-55010 |
1N..NP7# SANOU |
1 | ||
| 23703-55020 |
1N..NP7# MARUYASU |
1 | ||
| 23703-55010 |
1N..NP7# |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-55010 |
1N..NP7# SANOU |
1 | ||
| 23704-55010 |
1N..NP7# |
1 | ||
| 23704-55020 |
1N..NP7# MARUYASU |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-54010 |
1N..NP7# |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-54010 |
1N..NP7# |
2 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23741-64020 |
1N..NP7# |
1 | ||
| 23744 - CLAMP, INJECTION PIPE, NO.4 | ||||
| 23742-55010 |
1N..NP7# |
1 | ||
| 23761 - PIPE, NOZZLE LEAKAGE, NO.1 | ||||
| 23764-55020 |
1N..NP7# |
1 | ||
| 23802F - HOSE, FUEL | ||||
| 95332-08040 |
1N..NP7# *H,L=320 |
1 | ||
| 90447-14049 |
1N..NP7# |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-55020 |
1N..NP7# |
1 | ||
| Common parts | ||||
| 90179-08022 | ||||
| 90464-00234 | ||||
| 90467-13001 | ||||
| 91611-60620 | ||||
| 91611-60840 | ||||
| 91611-61020 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 96132-30600 | ||||
