NP76V-PVMDS (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8612- )1N

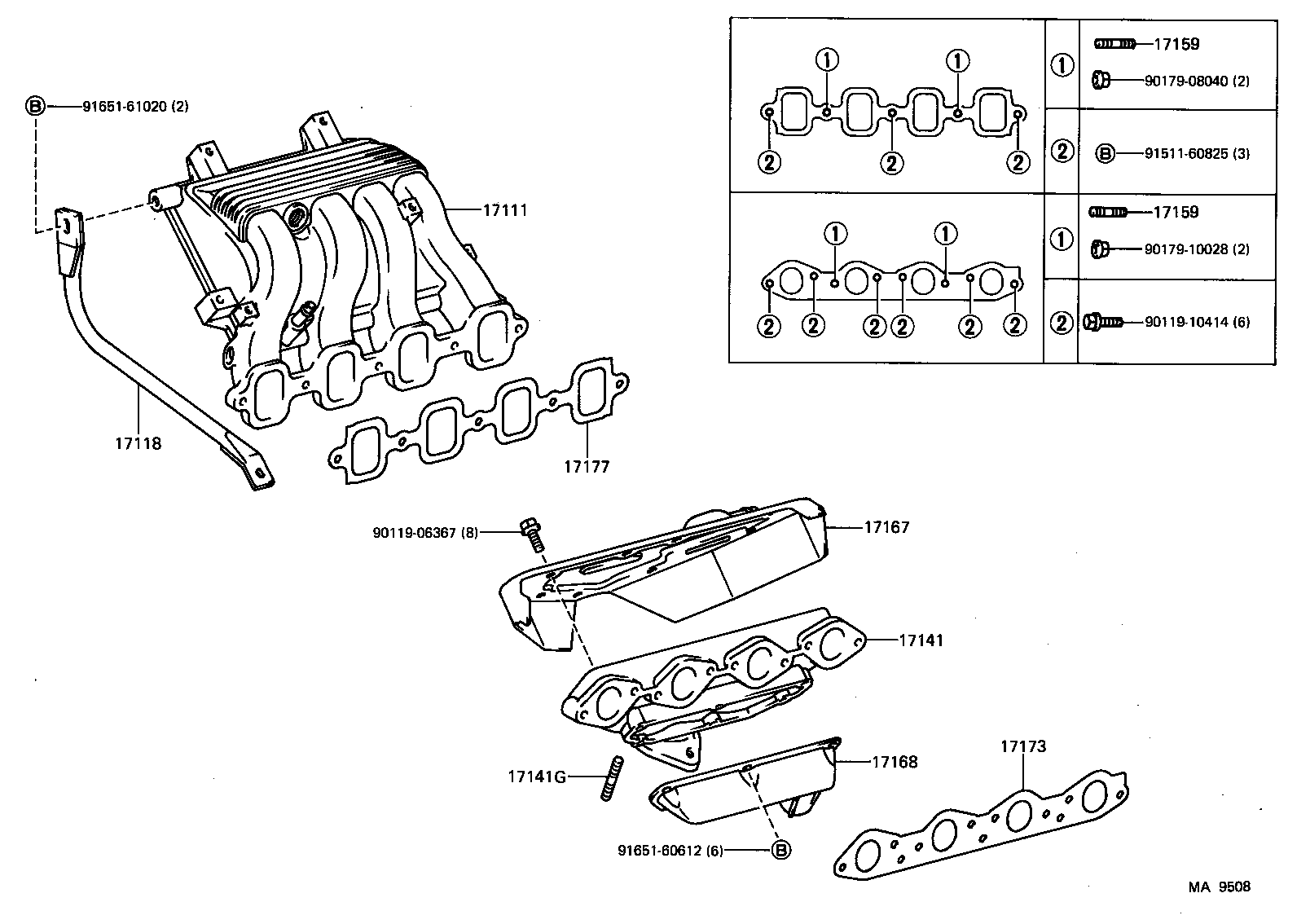

Click highlighted areas on diagram

diagram 17111 17118 17141 17141G 17159 17159 17167 17168 17173 17177 9011906367 9011910414 9017908040 9017910028 9151160825 9165160612 9165161020
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-55020

1N..NP7#

 1
17118 - STAY, MANIFOLD
17118-55020

1N..NP7#

 1
17141 - MANIFOLD, EXHAUST
17141-55020

1N..NP7#

 1
17141G - BOLT, STUD(FOR TURBOCHARGER)
90116-10087

1N..NP7#

 2
90116-10056

1N..NP7#

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60822

1N..NP7#

INTAKE MANIFOLD SIDE

 2
92112-61040

1N..NP7#

EXHAUST MANIFOLD SIDE

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60822

1N..NP7#

INTAKE MANIFOLD SIDE

 2
92112-61040

1N..NP7#

EXHAUST MANIFOLD SIDE

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-55030

1N..NP7#..5F

COLD SPEC

 1
17167-55020

1N..NP7#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-55020

1N..NP7#..5F

COLD SPEC

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-55010

1N..NP7#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-55011

1N..NP7#

 1
17177-55012

1N..NP7#

 1
17177-55010

1N..NP7#

 1
Common parts
90119-06367
90119-10414
90179-08040
90179-10028
91511-60825
91651-60612
91651-61020
