KP62V-PXKRS (1978)

Toyota Starlet

Production Oct 1978 - Sep 1984
Engine 3KHJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8005)

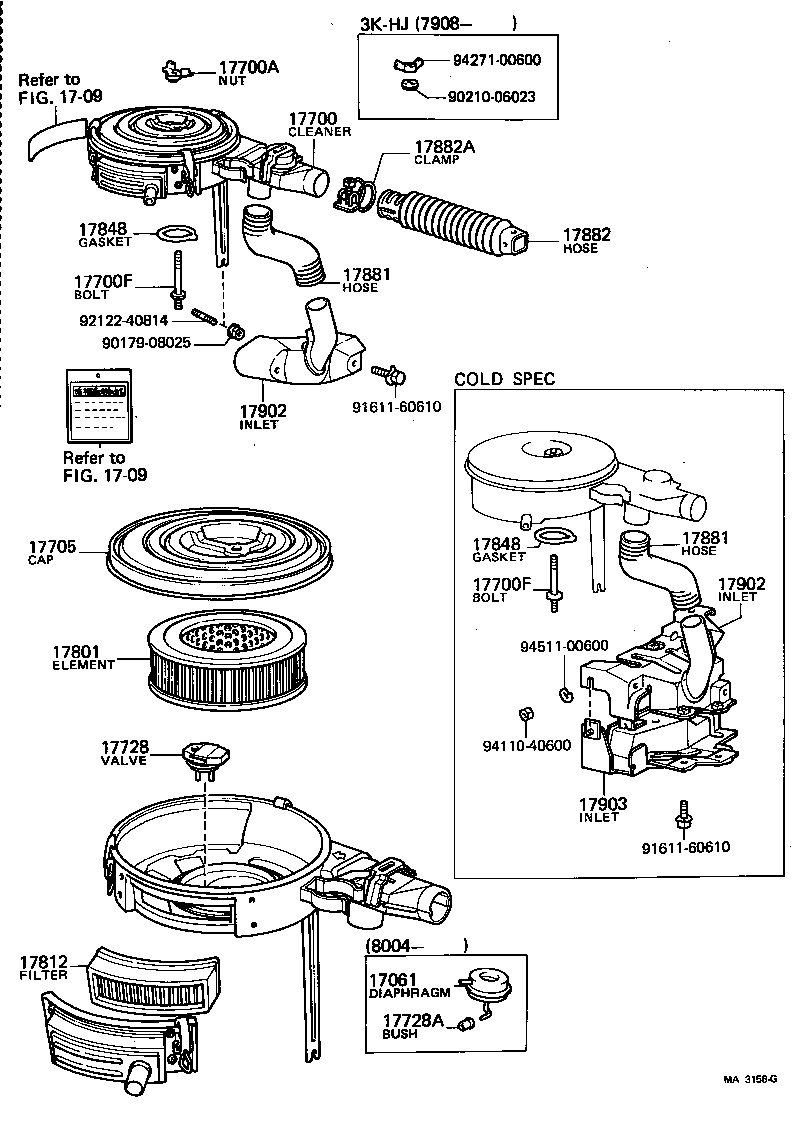

Click highlighted areas on diagram

diagram 17061 1709 1709 17700 17700A 17700F 17700F 17705 17728 17728A 17801 17812 17848 17848 17881 17881 17882 17882A 17902 17902 17903 9017908025 9021006023 9161160610 9161160610 9212240814 9411040600 9427100600 9451100600
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-13010

3KHJ..KP62

COLD SPEC

 1
17700 - CLEANER ASSY, AIR
17700-24520

3KHJ..KP62

 1
17700-24590

3KHJ..KP62

 1
17700-24581

3KHJ..KP62

COLD SPEC

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00600

3KHJ..KP62

 1
90175-06003

3KHJ,4KU..KP6#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06142

3KHJ,4KU,4KJ..KP6#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06142

3KHJ,4KU,4KJ..KP6#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-13010

3KHJ,4KU..KP6#

 1
17705-13050

3KHJ..KP62

 1
17728 - VALVE, THERMOSTATIC
17728-24011

3KHJ..KP62

COLD SPEC

 1
17728A - BUSH
90386-03001

3KHJ..KP62

COLD SPEC

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-13010

3KHJ,4KU,4KJ..KP6#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63187

3KHJ..KP62

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63187

3KHJ..KP62

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-13010

3KHJ,4KU..KP6#

L=120

 1
17881-13050

3KHJ..KP62

 1
17881-13010

3KHJ..KP62

L=120

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-13010

3KHJ,4KU..KP6#

L=120

 1
17881-13050

3KHJ..KP62

 1
17881-13010

3KHJ..KP62

L=120

 1
17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1
17167-24020

3KHJ..KP62

COLD SPEC

 1
17167-13010

3KHJ..KP62

 1
17895-24010

3KHJ..KP62

 1
17167-13040

3KHJ..KP62

COLD SPEC

 1
17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1
17167-24020

3KHJ..KP62

COLD SPEC

 1
17167-13010

3KHJ..KP62

 1
17895-24010

3KHJ..KP62

 1
17167-13040

3KHJ..KP62

COLD SPEC

 1
17903 - INLET SUB-ASSY, HOT AIR INTAKE, NO.2
17168-24020

3KHJ..KP62

COLD SPEC

 1
Common parts
90179-08025
90210-06023
91611-60610
92122-40814
94110-40600
94271-00600
94511-00600
Linked diagrams
1709

(8005-8201)3KHJ

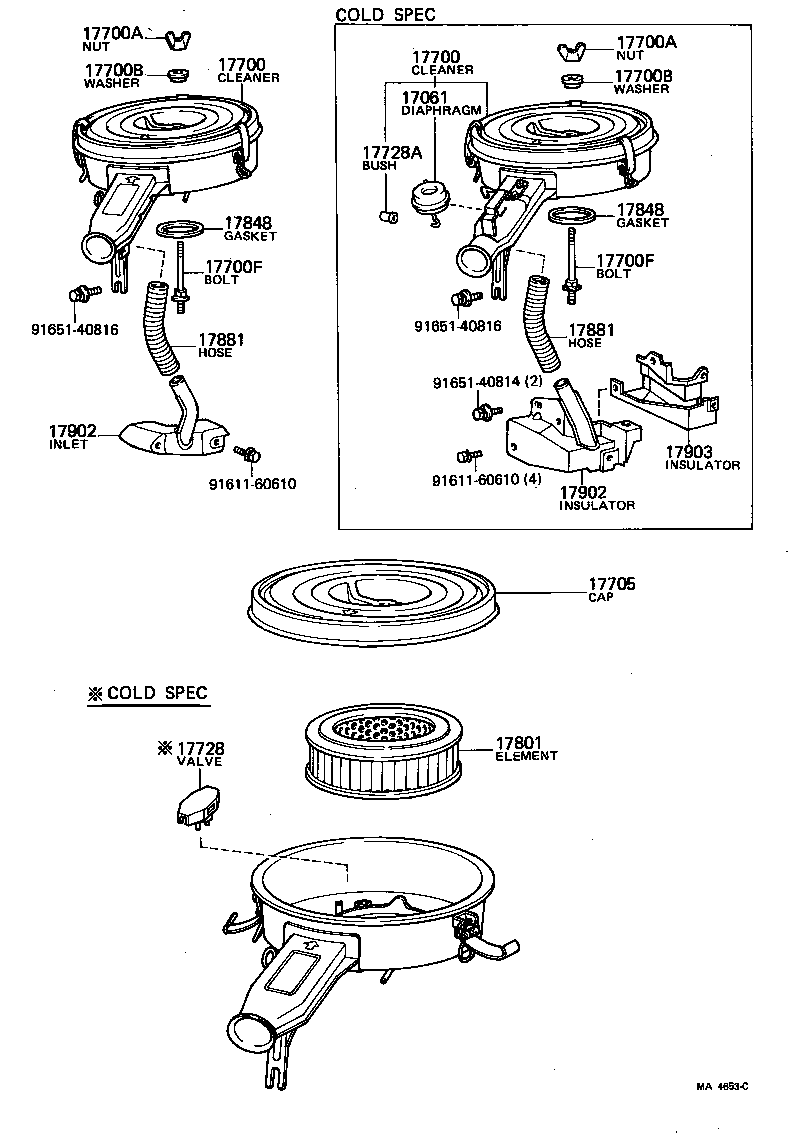

Click highlighted areas on diagram

diagram 17061 17700 17700 17700A 17700A 17700B 17700B 17700F 17700F 17705 17728 17728A 17801 17848 17848 17881 17881 17902 17902 17903 9161160610 9161160610 9165140814 9165140816 9165140816
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-13010

3KHJ..KP62

COLD SPEC

 1
17700 - CLEANER ASSY, AIR
17700-24520

3KHJ..KP62

 1
17700-24590

3KHJ..KP62

 1
17700-24581

3KHJ..KP62

COLD SPEC

 1
17700 - CLEANER ASSY, AIR
17700-24520

3KHJ..KP62

 1
17700-24590

3KHJ..KP62

 1
17700-24581

3KHJ..KP62

COLD SPEC

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00600

3KHJ..KP62

 1
90175-06003

3KHJ,4KU..KP6#

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00600

3KHJ..KP62

 1
90175-06003

3KHJ,4KU..KP6#

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-06023

3KHJ..KP62

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-06023

3KHJ..KP62

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06142

3KHJ,4KU,4KJ..KP6#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06142

3KHJ,4KU,4KJ..KP6#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-13010

3KHJ,4KU..KP6#

 1
17705-13050

3KHJ..KP62

 1
17728 - VALVE, THERMOSTATIC
17728-24011

3KHJ..KP62

COLD SPEC

 1
17728A - BUSH
90386-03001

3KHJ..KP62

COLD SPEC

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-13010

3KHJ,4KU,4KJ..KP6#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63187

3KHJ..KP62

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63187

3KHJ..KP62

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-13010

3KHJ,4KU..KP6#

L=120

 1
17881-13050

3KHJ..KP62

 1
17881-13010

3KHJ..KP62

L=120

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-13010

3KHJ,4KU..KP6#

L=120

 1
17881-13050

3KHJ..KP62

 1
17881-13010

3KHJ..KP62

L=120

 1
17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1
17167-24020

3KHJ..KP62

COLD SPEC

 1
17167-13010

3KHJ..KP62

 1
17895-24010

3KHJ..KP62

 1
17167-13040

3KHJ..KP62

COLD SPEC

 1
17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1
17167-24020

3KHJ..KP62

COLD SPEC

 1
17167-13010

3KHJ..KP62

 1
17895-24010

3KHJ..KP62

 1
17167-13040

3KHJ..KP62

COLD SPEC

 1
17903 - INLET SUB-ASSY, HOT AIR INTAKE, NO.2
17168-24020

3KHJ..KP62

COLD SPEC

 1
Common parts
91611-60610
91651-40814
91651-40816
