KP62V-PXKNS (1978)
Toyota Starlet
Production
Oct 1978
-
Jan 1982
Engine
3KHJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7802-8005)

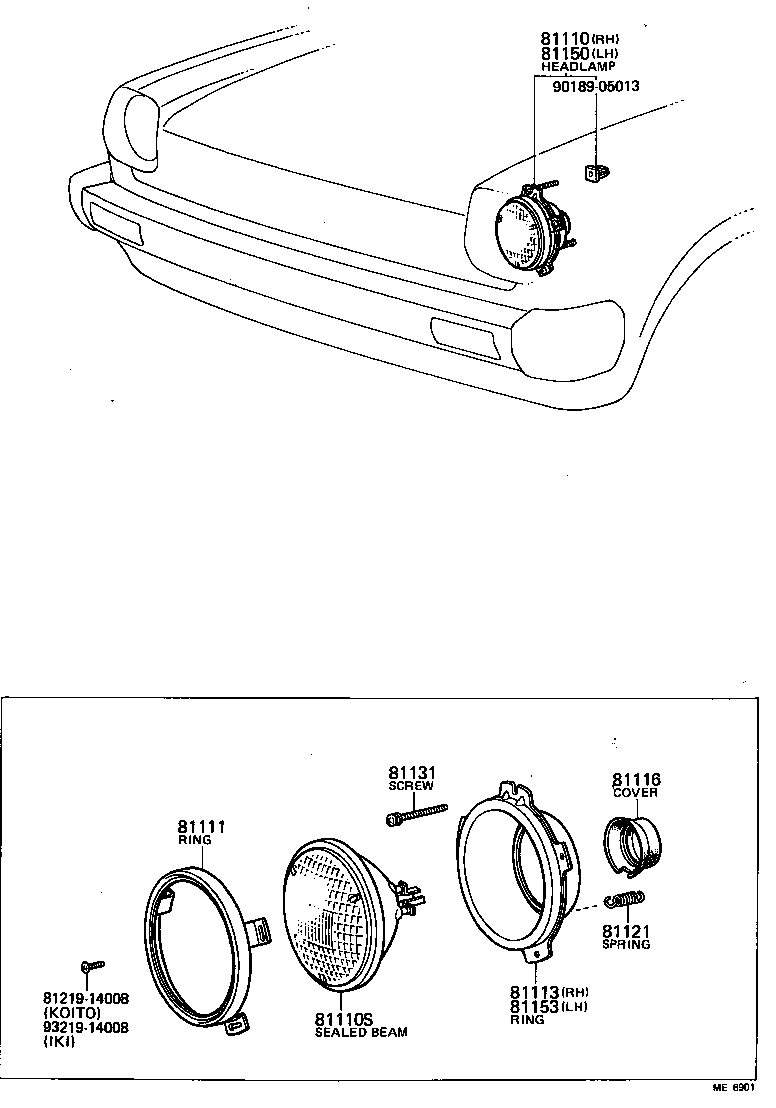

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-10150 |
KP6# KOITO |
1 | ||
| 81110-80077 |
KP62 IKI |
1 | ||
| 81110-19735 |
KP6# IKI |
1 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-01015 |
KP6# 12V 50/40W,KOITO |
2 | ||
| 90981-01030 |
KP62 12V 50/40W,*WB,12V 50/40W,IKI |
2 | ||
| 90981-01030 |
KP6# 12V 50/40W,*WB,12V 50/40W,IKI |
2 | ||
| 81111 - RING, SEALED BEAM RETAINING | ||||
| 81111-12421 |
KP62 IKI |
2 | ||
| 81111-12421 |
KP6# IKI |
2 | ||
| 81111-22150 |
KP6# KOITO |
2 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-96440 |
KP62 IKI |
1 | ||
| 81113-10061 |
KP6# IKI |
1 | ||
| 81113-12070 |
KP6# KOITO |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 90506-18018 |
KP62 IKI |
2 | ||
| 81121-62010 |
KP6# KOITO |
2 | ||
| 81121-10170 |
KP6# IKI |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-10150 |
KP6# KOITO |
4 | ||
| 81131-10170 |
KP6# IKI |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-80074 |
KP62 IKI |
1 | ||
| 81150-10100 |
KP6# KOITO |
1 | ||
| 81150-19675 |
KP6# IKI |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-96440 |
KP62 IKI |
1 | ||
| 81153-12010 |
KP6# KOITO |
1 | ||
| 81153-10021 |
KP6# IKI |
1 | ||
| Common parts | ||||
| 81219-14008 | ||||
| 90189-05013 | ||||
| 93219-14008 | ||||
