KP62V-PXKNS (1978)
Toyota Starlet
Production
Oct 1978
-
Jan 1982
Engine
3KHJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7810- )4D..05S

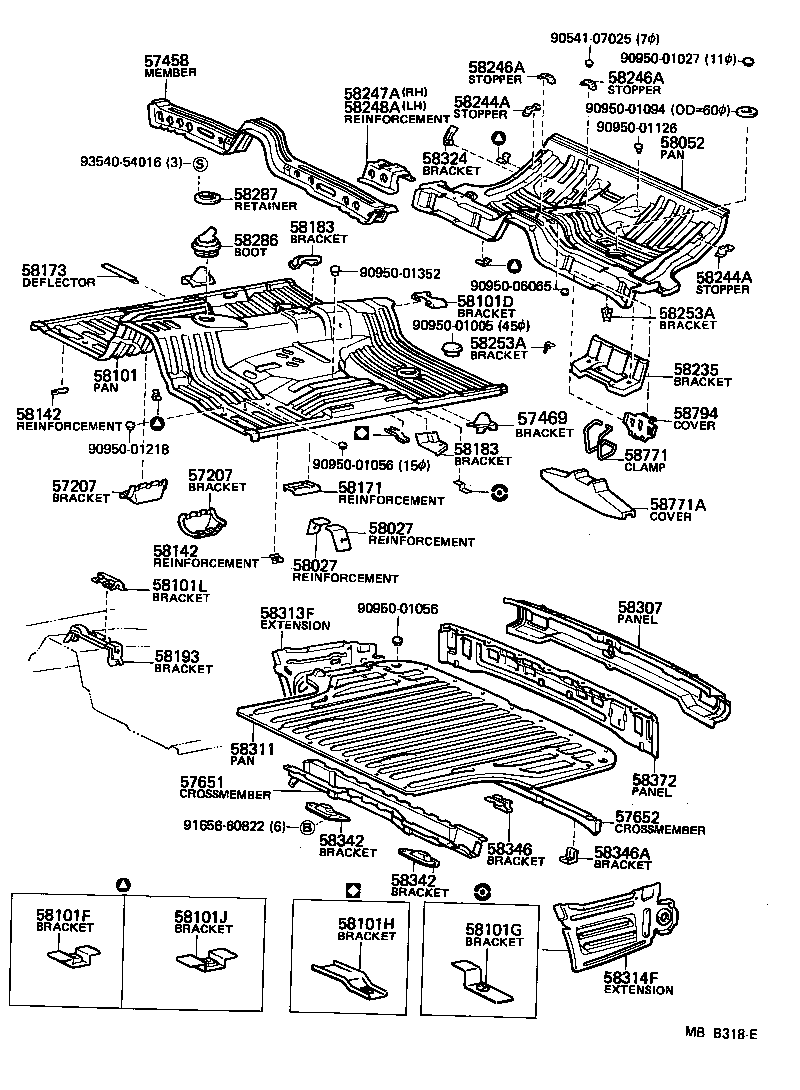

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57208-10032 |
KP62 LH |
1 | ||
| 57208-10030 |
KP62 LH |
1 | ||
| 57207-10010 |
KP6# RH |
1 | ||
| 57207-10011 |
KP6# RH |
1 | ||
| 57208-10031 |
KP62 LH |
1 | ||
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57208-10032 |
KP62 LH |
1 | ||
| 57208-10030 |
KP62 LH |
1 | ||
| 57207-10010 |
KP6# RH |
1 | ||
| 57207-10011 |
KP6# RH |
1 | ||
| 57208-10031 |
KP62 LH |
1 | ||
| 57458 - MEMBER, FRONT FLOOR CROSS, NO.1 | ||||
| 57451-10030 |
KP6# |
1 | ||
| 57451-10031 |
KP6# |
1 | ||
| 57408-10020 |
KP6# |
1 | ||
| 57469 - BRACKET, FRONT SEAT, OUTSIDE | ||||
| 57468-10010 |
KP6# RH |
1 | ||
| 57469-10010 |
KP6# LH |
1 | ||
| 57651 - CROSSMEMBER, REAR FLOOR, FRONT | ||||
| 57606-96440 |
KP62 |
1 | ||
| 57606-96442 |
KP62 |
1 | ||
| 57606-96441 |
KP62 |
1 | ||
| 58027 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1 | ||||
| 58161-10020 |
KP6# |
2 | ||
| 58027 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1 | ||||
| 58161-10020 |
KP6# |
2 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58111-10061 |
KP62 |
1 | ||
| 58111-10060 |
KP62 |
1 | ||
| 58101D - BRACKET, PARKING BRAKE CABLE GUIDE | ||||
| 58264-10020 |
KP6# |
1 | ||
| 58101F - BRACKET, MOUNTING, FLOOR, NO.1 | ||||
| 58236-14010 |
KP62 |
5 | ||
| 58101J - BRACKET, MOUNTING, FLOOR, NO.4 | ||||
| 58131-12020 |
KP62 |
1 | ||
| 58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN | ||||
| 58141-10020 |
KP6# |
2 | ||
| 58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN | ||||
| 58141-10020 |
KP6# |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-12030 |
KP6# |
1 | ||
| 58173 - DEFLECTOR, FRONT FLOOR STONE | ||||
| 58173-10020 |
KP6# |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-10030 |
KP6# LH |
1 | ||
| 58183-10030 |
KP6# RH |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-10030 |
KP6# LH |
1 | ||
| 58183-10030 |
KP6# RH |
1 | ||
| 58246A - STOPPER, REAR SEAT CUSHION BRACKET, CENTER | ||||
| 58246-96440 |
KP62 |
2 | ||
| 58246A - STOPPER, REAR SEAT CUSHION BRACKET, CENTER | ||||
| 58246-96440 |
KP62 |
2 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58025-96440 |
KP62 |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58026-96440 |
KP62 |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58209-10010 |
KP6#..MTM |
1 | ||
| 58287 - RETAINER, SHIFT LEVER BOOT | ||||
| 58287-10020 |
KP6#..MTM |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-96441 |
KP62..DLX,XL |
1 | ||
| Common parts | ||||
| 90541-07025 | ||||
| 90950-01005 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01094 | ||||
| 90950-01126 | ||||
| 90950-01218 | ||||
| 90950-01352 | ||||
| 90950-06065 | ||||
| 91656-60822 | ||||
| 93540-54016 | ||||
