KP62V-PXKNS (1978)

Toyota Starlet

Production Oct 1978 - Jan 1982
Engine 3KHJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8208)S,SE

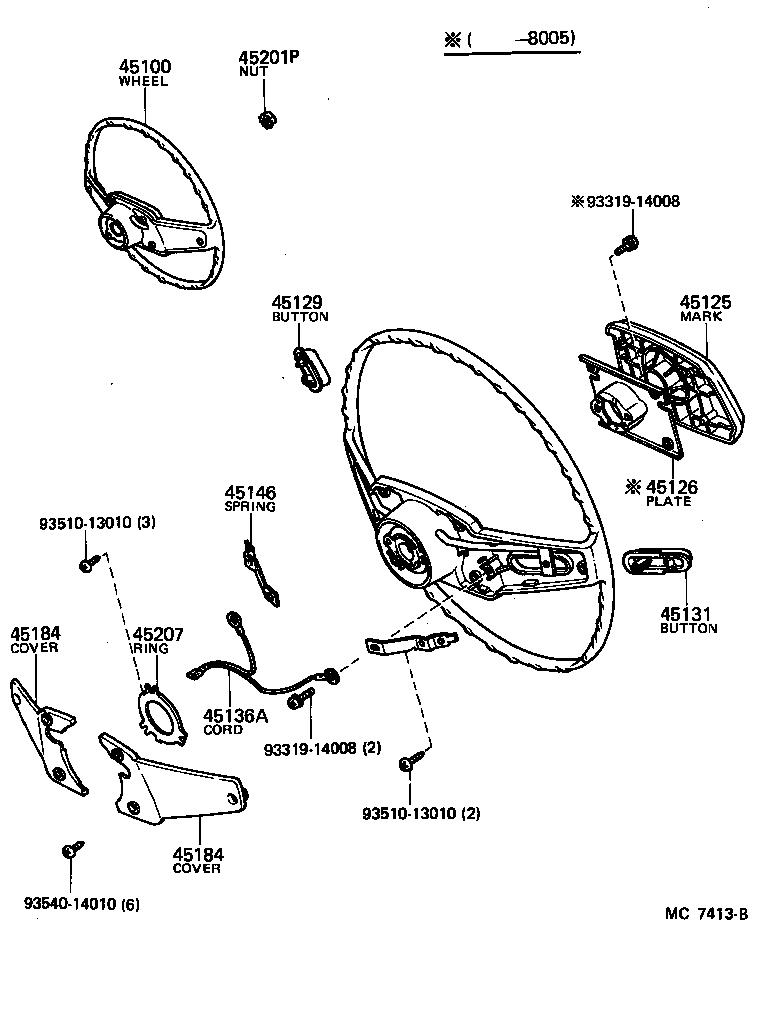

Click highlighted areas on diagram

diagram 45100 45125 45129 45130 45131 45136A 45146 45146 45184 45189 45201P 45207 9015950007 9331515014 9331515014 9331914008 9351013010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1016001

KP6#..DLX,STD,XL

BLACK,BLACK,TRIM2#

 1
45100-1016206

KP6#..DLX,DXA,XL

LIGHT BROWN,BROWN,TRIM4#

 1
45100-1016004

KP6#..DLX,XL

BLUE,BLUE,TRIM8#

 1
45100-1016005

KP6#..DLX,XL

BEIGE,BEIGE,TRIM4#

 1
45100-1016101

KP6#..DLX,DXA,STD,XL

BLACK,BLACK,TRIM2#

 1
45100-1016104

KP6#..DLX,DXA,XL

BLUE,BLUE,TRIM2#,4#,8#

 1
45100-1016106

KP6#..DLX,DXA,XL

LIGHT BROWN,BROWN,TRIM4#

 1
45100-1016204

KP6#..DLX,DXA,XL

BLUE,BLUE,TRIM2#,4#,8#

 1
45100-1016201

KP6#..DLX,DXA,STD,XL

BLACK,BLACK,TRIM2#

 1
45125 - MARK, STEERING WHEEL PAD
45125-1008005

KP6#..DLX,XL

BEIGE,BEIGE,TRIM4#

 1
45125-1010001

KP6#..DLX,DXA,STD,XL

BLACK,BLACK,TRIM2#

 1
45125-1008004

KP6#..DLX,XL

BLUE,BLUE,TRIM8#

 1
45125-1008001

KP6#..DLX,STD,XL

BLACK,BLACK,TRIM2#

 1
45125-1010004

KP6#..DLX,DXA,XL

BLUE,BLUE,TRIM2#,4#,8#

 1
45129 - BUTTON, HORN, NO.2
45131-10090

KP6#..DLX,DXA,STD,XL

 1
45131-10091

KP6#..DLX,DXA,STD,XL

 1
45131 - BUTTON, HORN, NO.1
45131-10090

KP6#..DLX,DXA,STD,XL

 1
45131-10091

KP6#..DLX,DXA,STD,XL

 1
45136A - CORD(FOR HORN CONTACT RING)
90945-02036

KP6#..DLX,DXA,STD,XL

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-10050

KP6#..DLX,DXA,STD,XL

 2
45146 - SPRING, HORN BUTTON CONTACT
45146-10050

KP6#..DLX,DXA,STD,XL

 2
45184 - COVER, STEERING WHEEL BOSS, LOWER
45183-1002004

KP6#..DLX,XL

RH,BLUE,BLUE,TRIM8#

 1
45184-1001005

KP6#..DLX,XL

LH,BEIGE,BEIGE,TRIM4#

 1
45184-1001004

KP6#..DLX,XL

LH,BLUE,BLUE,TRIM8#

 1
45183-1002001

KP6#..DLX,STD,XL

RH,BLACK,BLACK,TRIM2#

 1
45183-1002005

KP6#..DLX,XL

RH,BEIGE,BEIGE,TRIM4#

 1
45184-1001001

KP6#..DLX,STD,XL

LH,BLACK,BLACK,TRIM2#

 1
45184-1001104

KP6#..DLX,DXA,XL

LH,BLUE,BLUE,TRIM2#,4#,8#

 1
45183-1002106

KP6#..DLX,DXA,XL

RH,LIGHT BROWN,BROWN,TRIM0#,4#

 1
45184-1001101

KP6#..DLX,DXA,STD,XL

LH,BLACK,BLACK,TRIM2#

 1
45183-1002101

KP6#..DLX,DXA,STD,XL

RH,BLACK,BLACK,TRIM2#

 1
45183-1002104

KP6#..DLX,DXA,XL

RH,BLUE,BLUE,TRIM2#,4#,8#

 1
45184-1001106

KP6#..DLX,DXA,XL

LH,LIGHT BROWN,BROWN,TRIM0#,4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

KP6#

 1
45207 - RING, HORN CONTACT
45176-20030

KP6#

 1
Common parts
90159-50007
93315-15014
93319-14008
93510-13010

(7802-8108)DLX,DXA,STD,XL ; (8108-8208)DLX,DXA,STD

Click highlighted areas on diagram

diagram 45100 45125 45126 45129 45131 45136A 45146 45184 45184 45201P 45207 9331914008 9331914008 9351013010 9351013010 9354014010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1016001

KP6#..DLX,STD,XL

BLACK,BLACK,TRIM2#

 1
45100-1016206

KP6#..DLX,DXA,XL

LIGHT BROWN,BROWN,TRIM4#

 1
45100-1016004

KP6#..DLX,XL

BLUE,BLUE,TRIM8#

 1
45100-1016005

KP6#..DLX,XL

BEIGE,BEIGE,TRIM4#

 1
45100-1016101

KP6#..DLX,DXA,STD,XL

BLACK,BLACK,TRIM2#

 1
45100-1016104

KP6#..DLX,DXA,XL

BLUE,BLUE,TRIM2#,4#,8#

 1
45100-1016106

KP6#..DLX,DXA,XL

LIGHT BROWN,BROWN,TRIM4#

 1
45100-1016204

KP6#..DLX,DXA,XL

BLUE,BLUE,TRIM2#,4#,8#

 1
45100-1016201

KP6#..DLX,DXA,STD,XL

BLACK,BLACK,TRIM2#

 1
45125 - MARK, STEERING WHEEL PAD
45125-1008005

KP6#..DLX,XL

BEIGE,BEIGE,TRIM4#

 1
45125-1010001

KP6#..DLX,DXA,STD,XL

BLACK,BLACK,TRIM2#

 1
45125-1008004

KP6#..DLX,XL

BLUE,BLUE,TRIM8#

 1
45125-1008001

KP6#..DLX,STD,XL

BLACK,BLACK,TRIM2#

 1
45125-1010004

KP6#..DLX,DXA,XL

BLUE,BLUE,TRIM2#,4#,8#

 1
45126 - PLATE, STEERING WHEEL PAD SET
45126-10010

KP6#..DLX,STD,XL

 1
45129 - BUTTON, HORN, NO.2
45131-10090

KP6#..DLX,DXA,STD,XL

 1
45131-10091

KP6#..DLX,DXA,STD,XL

 1
45131 - BUTTON, HORN, NO.1
45131-10090

KP6#..DLX,DXA,STD,XL

 1
45131-10091

KP6#..DLX,DXA,STD,XL

 1
45136A - CORD(FOR HORN CONTACT RING)
90945-02036

KP6#..DLX,DXA,STD,XL

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-10050

KP6#..DLX,DXA,STD,XL

 2
45184 - COVER, STEERING WHEEL BOSS, LOWER
45183-1002004

KP6#..DLX,XL

RH,BLUE,BLUE,TRIM8#

 1
45184-1001005

KP6#..DLX,XL

LH,BEIGE,BEIGE,TRIM4#

 1
45184-1001004

KP6#..DLX,XL

LH,BLUE,BLUE,TRIM8#

 1
45183-1002001

KP6#..DLX,STD,XL

RH,BLACK,BLACK,TRIM2#

 1
45183-1002005

KP6#..DLX,XL

RH,BEIGE,BEIGE,TRIM4#

 1
45184-1001001

KP6#..DLX,STD,XL

LH,BLACK,BLACK,TRIM2#

 1
45184-1001104

KP6#..DLX,DXA,XL

LH,BLUE,BLUE,TRIM2#,4#,8#

 1
45183-1002106

KP6#..DLX,DXA,XL

RH,LIGHT BROWN,BROWN,TRIM0#,4#

 1
45184-1001101

KP6#..DLX,DXA,STD,XL

LH,BLACK,BLACK,TRIM2#

 1
45183-1002101

KP6#..DLX,DXA,STD,XL

RH,BLACK,BLACK,TRIM2#

 1
45183-1002104

KP6#..DLX,DXA,XL

RH,BLUE,BLUE,TRIM2#,4#,8#

 1
45184-1001106

KP6#..DLX,DXA,XL

LH,LIGHT BROWN,BROWN,TRIM0#,4#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45183-1002004

KP6#..DLX,XL

RH,BLUE,BLUE,TRIM8#

 1
45184-1001005

KP6#..DLX,XL

LH,BEIGE,BEIGE,TRIM4#

 1
45184-1001004

KP6#..DLX,XL

LH,BLUE,BLUE,TRIM8#

 1
45183-1002001

KP6#..DLX,STD,XL

RH,BLACK,BLACK,TRIM2#

 1
45183-1002005

KP6#..DLX,XL

RH,BEIGE,BEIGE,TRIM4#

 1
45184-1001001

KP6#..DLX,STD,XL

LH,BLACK,BLACK,TRIM2#

 1
45184-1001104

KP6#..DLX,DXA,XL

LH,BLUE,BLUE,TRIM2#,4#,8#

 1
45183-1002106

KP6#..DLX,DXA,XL

RH,LIGHT BROWN,BROWN,TRIM0#,4#

 1
45184-1001101

KP6#..DLX,DXA,STD,XL

LH,BLACK,BLACK,TRIM2#

 1
45183-1002101

KP6#..DLX,DXA,STD,XL

RH,BLACK,BLACK,TRIM2#

 1
45183-1002104

KP6#..DLX,DXA,XL

RH,BLUE,BLUE,TRIM2#,4#,8#

 1
45184-1001106

KP6#..DLX,DXA,XL

LH,LIGHT BROWN,BROWN,TRIM0#,4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

KP6#

 1
45207 - RING, HORN CONTACT
45176-20030

KP6#

 1
Common parts
93319-14008
93510-13010
93540-14010
