KP62V-PXKDS (1978)

Toyota Starlet

Production Oct 1978 - Jan 1982
Engine 3KHJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7810-8201)3KHJ

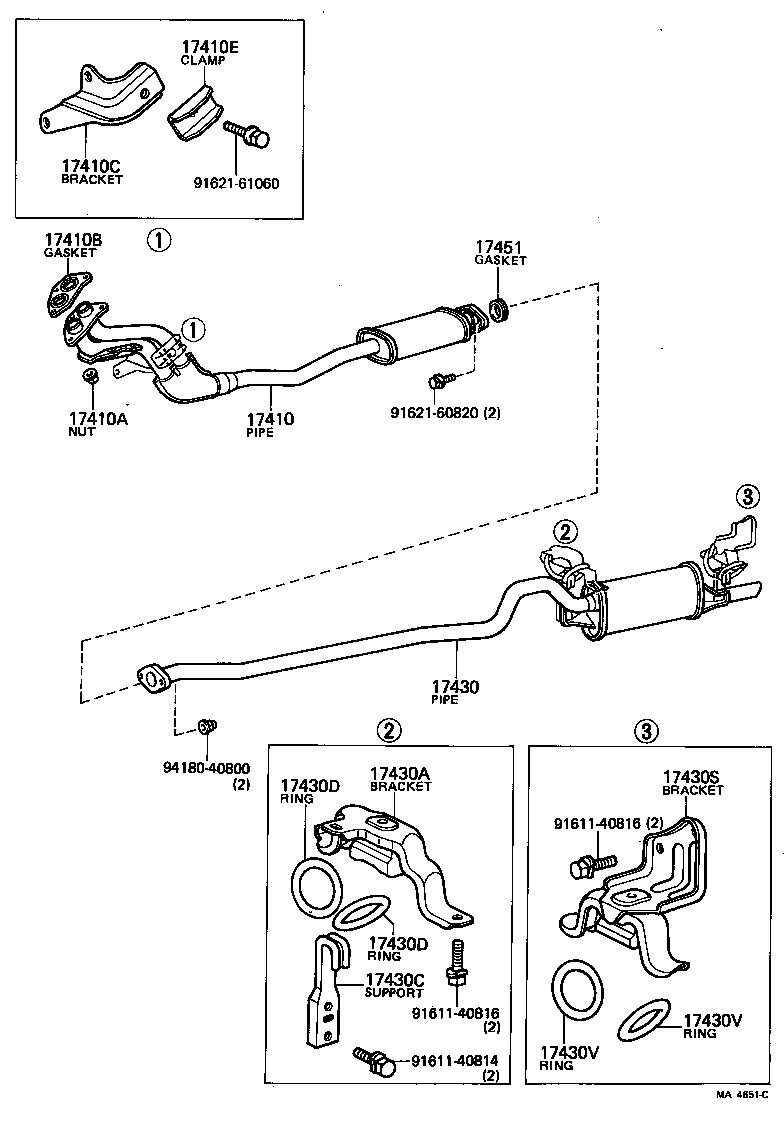

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410E 17430 17430A 17430C 17430D 17430D 17430S 17430V 17430V 17451 9161140814 9161140816 9161140816 9162160820 9162161060 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-24200

3KHJ..KP62

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

3KHJ,4K#..KP6#

 3
17410B - GASKET, EXHAUST PIPE
17451-22010

3KHJ..KP62

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-24110

3KHJ..KP62

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04034

3KHJ,4KU..KP6#

 1
90917-04034

3KHJ..KP62

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-24320

3KHJ..KP62

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17506-24050

3KHJ..KP62

 1
17430C - CLAMP NO.1, EXHAUST TAIL PIPE (FOR FRONT)
17561-24120

3KHJ..KP62

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

3KHJ..KP62

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

3KHJ..KP62

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17507-24050

3KHJ..KP62

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

3KHJ..KP62

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

3KHJ..KP62

 2
17451 - GASKET, EXHAUST PIPE
90917-06006

3KHJ..KP62

 1
Common parts
91611-40814
91611-40816
91621-60820
91621-61060
94180-40800
