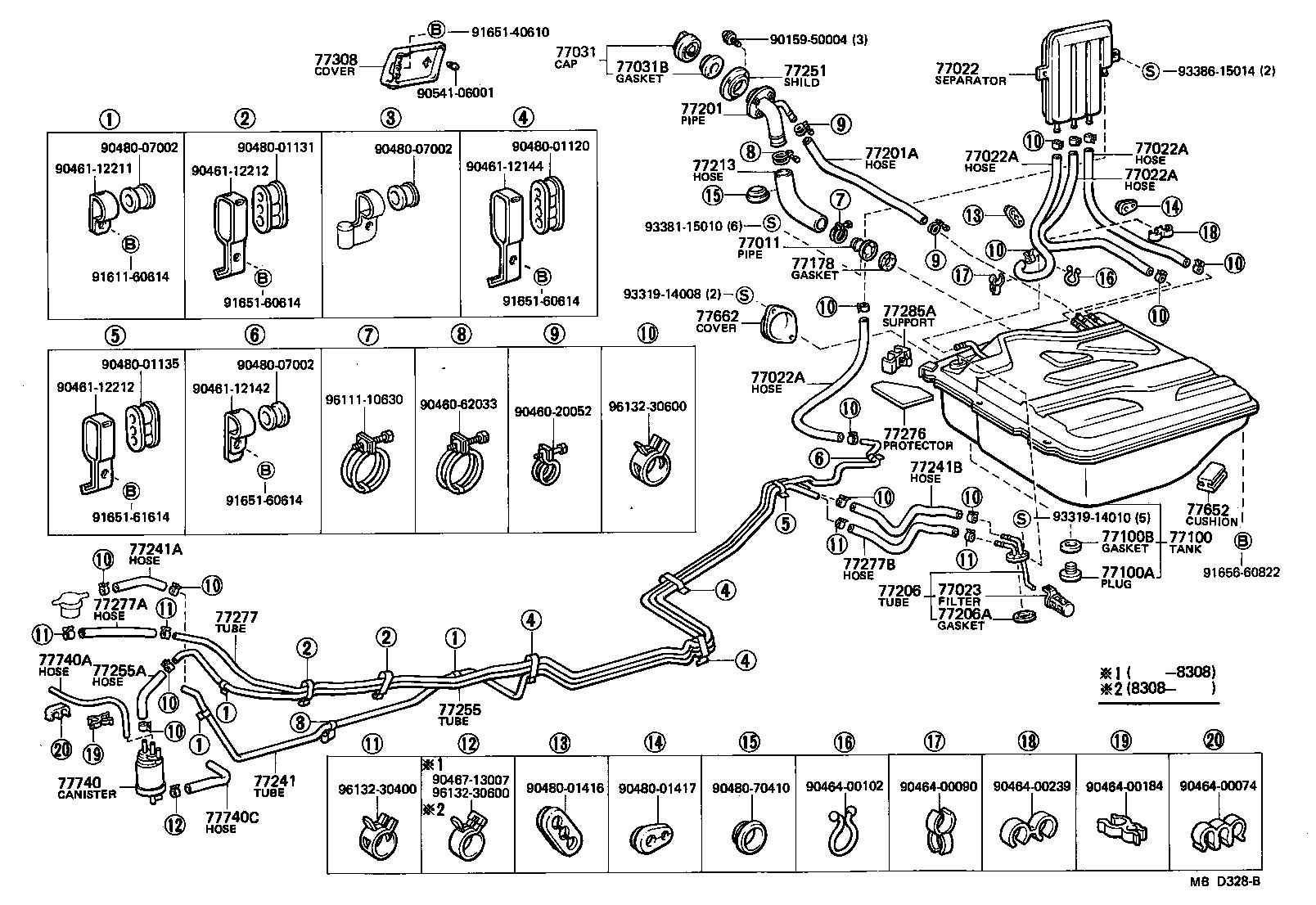

Toyota Starlet KP61V FUEL TANK & TUBE

Part #	Description	Period	Qty
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-13010	KP61..4D	01/1982 - 09/1984	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
90445-12083	KP61..4D L=670	01/1982 - 09/1984	1
77259-96440	KP61..4D L=930	01/1982 - 09/1984	1
90445-12110	KP61..4D L=830	01/1982 - 09/1984	1
90445-12107	KP61..4D *H,L=460	01/1982 - 09/1984	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
90445-12083	KP61..4D L=670	01/1982 - 09/1984	1
77259-96440	KP61..4D L=930	01/1982 - 09/1984	1
90445-12110	KP61..4D L=830	01/1982 - 09/1984	1
90445-12107	KP61..4D *H,L=460	01/1982 - 09/1984	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
90445-12083	KP61..4D L=670	01/1982 - 09/1984	1
77259-96440	KP61..4D L=930	01/1982 - 09/1984	1
90445-12110	KP61..4D L=830	01/1982 - 09/1984	1
90445-12107	KP61..4D *H,L=460	01/1982 - 09/1984	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
90445-12083	KP61..4D L=670	01/1982 - 09/1984	1
77259-96440	KP61..4D L=930	01/1982 - 09/1984	1
90445-12110	KP61..4D L=830	01/1982 - 09/1984	1
90445-12107	KP61..4D *H,L=460	01/1982 - 09/1984	1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-12050	KP6#..CBR	02/1978 - 09/1984	1
77031 - CAP ASSY, FUEL TANK
77310-14070	KP6#	02/1978 - 05/1980	1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050	KP6#	02/1978 - 09/1984	1
77100 - TANK ASSY, FUEL
77001-96444	KP61..4D	01/1982 - 09/1984	1
77001-10900	KP61	02/1978 - 05/1980	1
77100A - PLUG(FOR FUEL TANK)
90341-24036	KP6#	02/1978 - 09/1984	1
77100B - GASKET(FOR FUEL TANK)
90430-24047	KP6#	02/1978 - 09/1984	1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-13020	KP61..4D	01/1982 - 09/1984	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-10060	KP61	02/1978 - 05/1980	1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77209-96443	KP61..4D	01/1982 - 09/1984	1
77209-10020	KP61	02/1978 - 05/1980	1
77213 - HOSE, FUEL TANK SUB INLET
77213-10030	KP61	02/1978 - 05/1980	1
77241 - TUBE, FUEL MAIN, NO.1
77251-10050	KP61	02/1978 - 05/1980	1
77251-96443	KP61..4D	01/1982 - 09/1984	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06011	KP6# *H,L=110	02/1978 - 04/1979	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-06022	KP61 *H,L=220	02/1978 - 04/1979	1
95332-06030	KP61..4D *H,L=300	01/1982 - 09/1984	1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77291-22010	KP61	02/1978 - 05/1980	1
77255 - TUBE, FUEL EMISSION, NO.2
77261-10030	KP61	02/1978 - 05/1980	1
77261-96443	KP61..4D	01/1982 - 09/1984	1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95332-06013	KP6# *H,L=130	02/1978 - 04/1979	1
77276 - PROTECTOR, FUEL HOSE
77271-13010	KP61..4D	01/1982 - 09/1984	1
77277 - TUBE, FUEL RETURN, NO.1
77255-96440	KP61..4D	01/1982 - 09/1984	1
77255-10050	KP61	02/1978 - 05/1980	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-04046	KP61 *H,L=460	02/1978 - 03/1979	1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-04030	KP61..4D *H,L=260	01/1982 - 09/1984	1
95332-04014	KP61 *H,L=140	02/1978 - 04/1979	1
77652 - CUSHION, FUEL TANK, NO.1
77651-10020	KP61	02/1978 - 02/1980	2
77740 - CANISTER ASSY, CHARCOAL
77740-10030	KP6#	02/1978 - 05/1980	1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
05411-19995	KP61..4D H,L=700,ﾏｰｸ=#	01/1982 - 09/1984	1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
90445-12121	KP61 長さ=200	08/1983 - 09/1984	1
Common parts
90159-50004
90460-20052
90460-62033
90461-12142
90461-12144
90461-12211
90461-12212
90464-00074
90464-00090
90464-00102
90464-00184
90464-00239
90467-13007
90480-01120
90480-01131
90480-01135
90480-01416
90480-01417
90480-07002
90480-70410
90541-06001
91611-60614
91651-40610
91651-60614
91651-61614
91656-60822
93319-14008
93319-14010
93381-15010
93386-15014
96111-10630
96132-30400
96132-30600

KP61V-PXKRS (1982)

(8201- )4D
