KP61V-PXKNS (1982)
Toyota Starlet

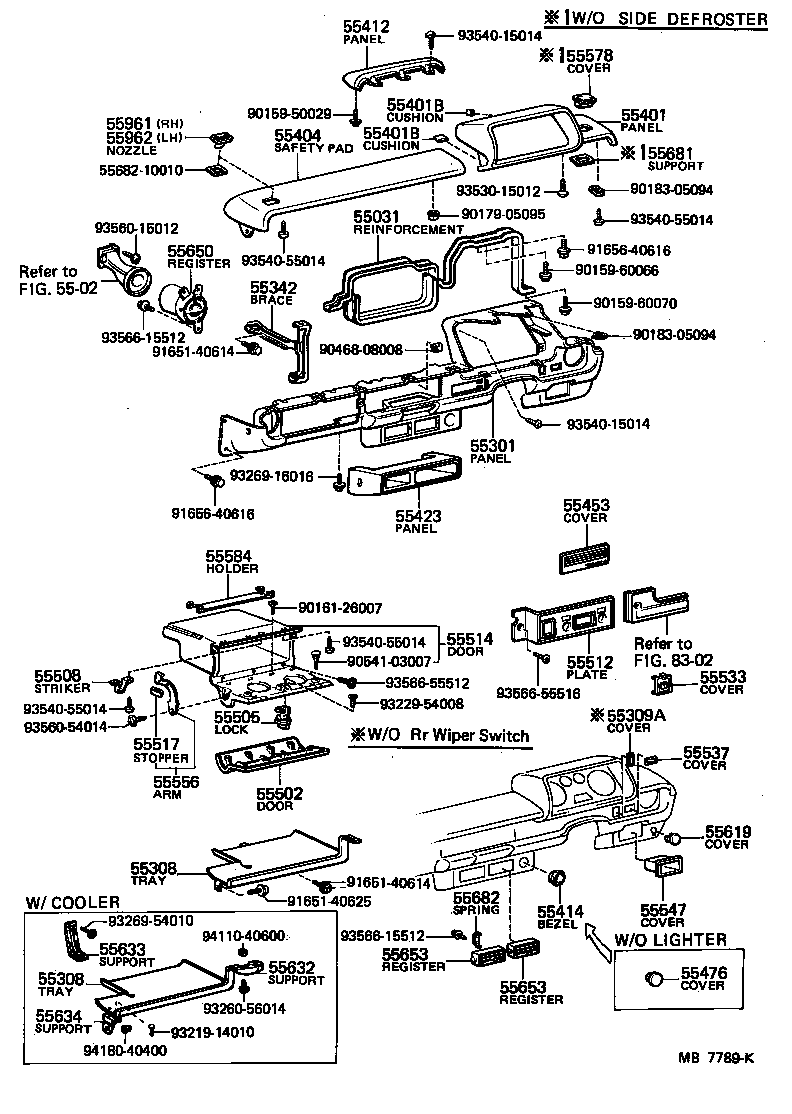

(7802-8208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55330-10010 |
KP6# |
1 | ||
| 55305-10030 |
KP61 |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-1034005 |
KP61..S BEIGE,BEIGE,TRIM4# |
1 | ||
| 55301-1034004 |
KP61..S BLUE,BLUE,TRIM8# |
1 | ||
| 55301-1034001 |
KP61..S BLACK,BLACK,TRIM2# |
1 | ||
| 55311-1012004 |
KP6#..DLX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 55311-1012005 |
KP6#..DLX,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55311-1012001 |
KP6#..DLX,DXA,XL BLACK,BLACK,TRIM2# |
1 | ||
| 55311-1013003 |
KP61 GRAY,GRAY,TRIM1# |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-10020 |
KP6#..DLX,S,SE,XL |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-10020 |
KP6#..DLX,S,SE,XL |
1 | ||
| 55309A - COVER, BASE SWITCH HOLE, NO.1 | ||||
| 55384-2001101 |
KP6#..DLX,DXA,STD,XL BLACK,BLACK,TRIM2# |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-10010 |
KP6# |
1 | ||
| 55307-10030 |
KP61 |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55411-1010004 |
KP6#..DLX,S,SE,XL BLUE,BLUE,TRIM8# |
1 | ||
| 55411-1010005 |
KP6#..DLX,S,SE,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55411-1010001 |
KP6# BLACK,BLACK,TRIM2# |
1 | ||
| 55404-1007003 |
KP61 GRAY,GRAY,TRIM1# |
1 | ||
| 55401B - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-10010 |
KP6# UPR,L=6 |
3 | ||
| 55419-10050 |
KP61 UPR |
2 | ||
| 55419-10070 |
KP61 LWR |
1 | ||
| 55401B - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-10010 |
KP6# UPR,L=6 |
3 | ||
| 55419-10050 |
KP61 UPR |
2 | ||
| 55419-10070 |
KP61 LWR |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1013004 |
KP6#..DLX,S,SE,XL W/SIDE DEFROSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1014004 |
KP6#..DLX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1014005 |
KP6#..DLX,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-1013005 |
KP6#..DLX,S,SE,XL W/SIDE DEFROSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-1013001 |
KP6# W/SIDE DEFROSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1014001 |
KP6#..DLX,STD,XL BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1017003 |
KP61 W/SIDE DEFROSTER,GRAY,GRAY,TRIM1# |
1 | ||
| 55412 - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-1002004 |
KP6#..DLX,S,SE,XL BLUE,BLUE,TRIM2# |
1 | ||
| 55414-1002005 |
KP6#..DLX,S,SE,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55414-1002001 |
KP6# BLACK,BLACK,TRIM2# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-14030 |
KP6#..S,SE,XL |
1 | ||
| 55477-10030 |
KP61 |
1 | ||
| 55502 - DOOR SUB-ASSY, GLOVE COMPARTMENT, OUTER | ||||
| 55502-1001001 |
KP61..S BLACK,BLACK,TRIM2# |
1 | ||
| 55502-1001005 |
KP61..S BEIGE,BEIGE,TRIM4# |
1 | ||
| 55551-1002004 |
KP6#..DLX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 55551-1002005 |
KP6#..DLX,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55502-1001004 |
KP61..S BLUE,BLUE,TRIM8# |
1 | ||
| 55551-1002001 |
KP6#..DLX,DXA,XL BLACK,BLACK,TRIM2# |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-1601003 |
KP61 GRAY,GRAY,TRIM1# |
1 | ||
| 55560-12020 |
KP6# |
1 | ||
| 55508 - STRIKER SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-10010 |
KP6# |
1 | ||
| 55512 - PLATE, RADIO TUNER FINISH | ||||
| 55405-1002004 |
KP61..S BLUE,BLUE,TRIM8# |
1 | ||
| 55405-1002001 |
KP61..S BLACK,BLACK,TRIM2# |
1 | ||
| 55405-1004001 |
KP61..S W/*AFCC,BLACK,BLACK,TRIM2# |
1 | ||
| 55405-1004005 |
KP61..S W/*AFCC,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55405-1002005 |
KP61..S BEIGE,BEIGE,TRIM4# |
1 | ||
| 55405-1004004 |
KP61..S W/*AFCC,BLUE,BLUE,TRIM8# |
1 | ||
| 55513-10090 |
KP6#..DLX,XL |
1 | ||
| 55513-10100 |
KP61..DLX,XL W/*AFCC |
1 | ||
| 55514 - DOOR, GLOVE COMPARTMENT, INNER | ||||
| 55552-10010 |
KP6# |
1 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-14010 |
KP6# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-10010 |
KP6#..DLX,S,STD |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-10020 |
KP6# |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-10020 |
KP6# |
1 | ||
| 55578 - COVER, SIDE DEFROSTER OPENING, RH | ||||
| 55578-1001004 |
KP6#..DLX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 55578-1001001 |
KP6#..DLX,STD,XL BLACK,BLACK,TRIM2# |
1 | ||
| 55578-1001005 |
KP6#..DLX,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55584 - HOLDER, MAP | ||||
| 55584-10030 |
KP6# |
1 | ||
| 55619 - COVER, SWITCH HOLE | ||||
| 55619-1401001 |
KP6# BLACK,BLACK,TRIM2# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-10010 |
KP6# |
2 | ||
| 55650-1002003 |
KP61 GRAY,GRAY,TRIM1# |
1 | ||
| 55653 - REGISTER, INSTRUMENT PANEL, NO.3 | ||||
| 55063-12010 |
KP6#..DLX,DXA,S,STD,XL |
2 | ||
| 55653 - REGISTER, INSTRUMENT PANEL, NO.3 | ||||
| 55063-12010 |
KP6#..DLX,DXA,S,STD,XL |
2 | ||
| 55681 - SUPPORT, INSTRUMENT PANEL REGISTER, NO.1 | ||||
| 55682-10010 |
KP6#..DLX,STD,XL |
1 | ||
| 55682-10040 |
KP61 |
2 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55686-10020 |
KP6# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-1002003 |
KP61 GRAY,GRAY,TRIM1# |
1 | ||
| 55961-1001005 |
KP6#..DLX,S,SE,XL W/SIDE DEFROSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55961-1001004 |
KP6#..DLX,S,SE,XL W/SIDE DEFROSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 55961-1001001 |
KP6# W/SIDE DEFROSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-1001005 |
KP6#..DLX,S,SE,XL W/SIDE DEFROSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55962-1001001 |
KP6# W/SIDE DEFROSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 55962-1001004 |
KP6#..DLX,S,SE,XL W/SIDE DEFROSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 55962-1002003 |
KP61 GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 55682-10010 | ||||
| 90159-50029 | ||||
| 90159-60066 | ||||
| 90159-60070 | ||||
| 90161-26007 | ||||
| 90179-05095 | ||||
| 90183-05094 | ||||
| 90468-08008 | ||||
| 90541-03007 | ||||
| 91651-40614 | ||||
| 91651-40625 | ||||
| 91656-40616 | ||||
| 93219-14010 | ||||
| 93229-54008 | ||||
| 93260-56014 | ||||
| 93269-16016 | ||||
| 93269-54010 | ||||
| 93530-15012 | ||||
| 93540-15014 | ||||
| 93540-55014 | ||||
| 93560-15012 | ||||
| 93560-54014 | ||||
| 93566-15512 | ||||
| 93566-55512 | ||||
| 93566-55516 | ||||
| 94110-40600 | ||||
| 94180-40400 | ||||
| Linked diagrams | ||||
| 5502 | ||||
| 8302 | ||||

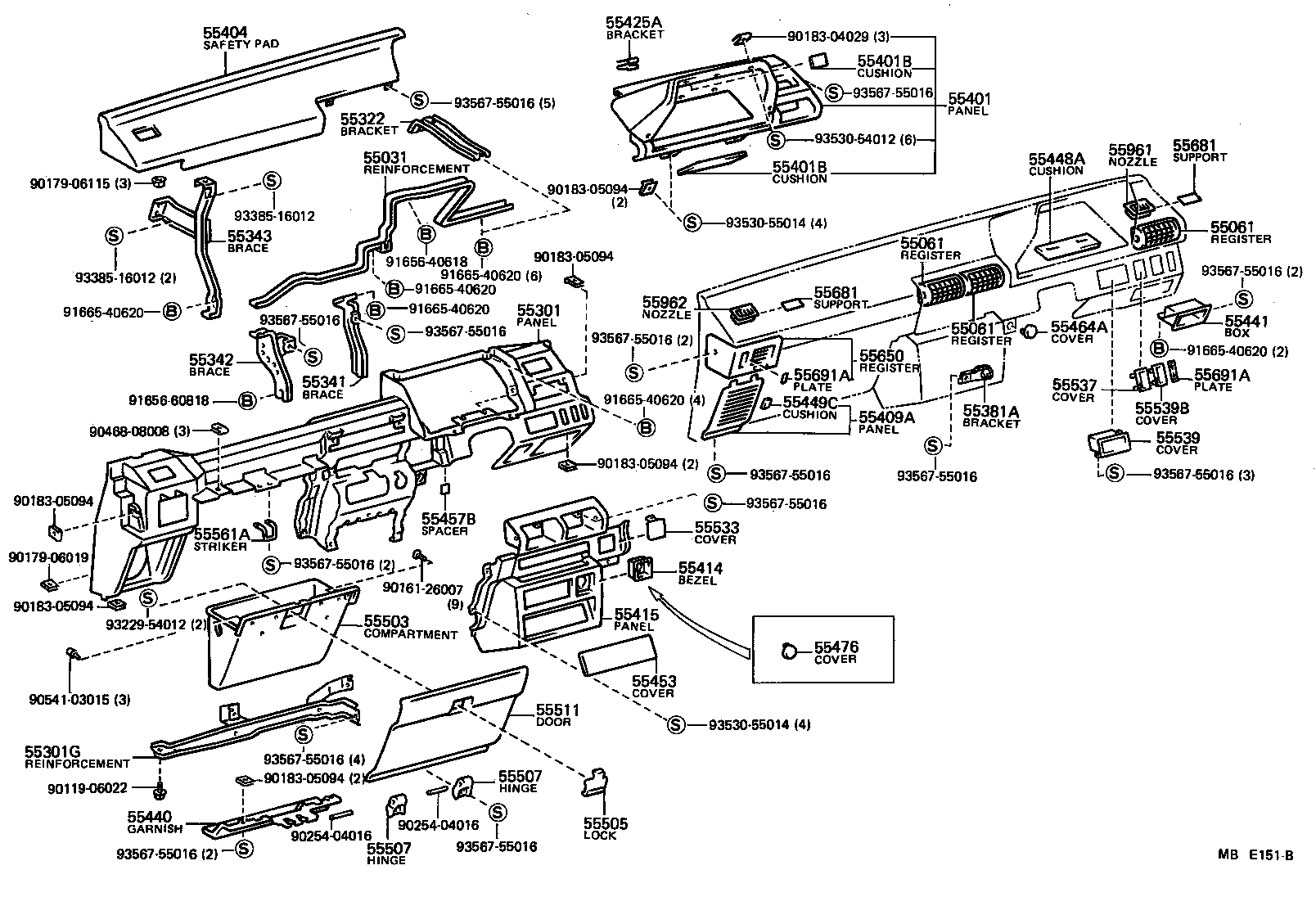

(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55330-10010 |
KP6# |
1 | ||
| 55305-10030 |
KP61 |
1 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-10010 |
KP61 |
3 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-10010 |
KP61 |
3 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-10010 |
KP61 |
3 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-1034005 |
KP61..S BEIGE,BEIGE,TRIM4# |
1 | ||
| 55301-1034004 |
KP61..S BLUE,BLUE,TRIM8# |
1 | ||
| 55301-1034001 |
KP61..S BLACK,BLACK,TRIM2# |
1 | ||
| 55311-1012004 |
KP6#..DLX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 55311-1012005 |
KP6#..DLX,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55311-1012001 |
KP6#..DLX,DXA,XL BLACK,BLACK,TRIM2# |
1 | ||
| 55311-1013003 |
KP61 GRAY,GRAY,TRIM1# |
1 | ||
| 55301G - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL | ||||
| 55309-10010 |
KP61 |
1 | ||
| 55322 - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55325-10060 |
KP61 |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55306-10010 |
KP61 |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-10010 |
KP6# |
1 | ||
| 55307-10030 |
KP61 |
1 | ||
| 55343 - BRACE, INSTRUMENT PANEL, NO.3 | ||||
| 55308-10040 |
KP61 |
1 | ||
| 55381A - BRACKET, FINISH PANEL MOUNTING | ||||
| 55381-10030 |
KP61 |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55411-1010004 |
KP6#..DLX,S,SE,XL BLUE,BLUE,TRIM8# |
1 | ||
| 55411-1010005 |
KP6#..DLX,S,SE,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55411-1010001 |
KP6# BLACK,BLACK,TRIM2# |
1 | ||
| 55404-1007003 |
KP61 GRAY,GRAY,TRIM1# |
1 | ||
| 55401B - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-10010 |
KP6# UPR,L=6 |
3 | ||
| 55419-10050 |
KP61 UPR |
2 | ||
| 55419-10070 |
KP61 LWR |
1 | ||
| 55401B - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-10010 |
KP6# UPR,L=6 |
3 | ||
| 55419-10050 |
KP61 UPR |
2 | ||
| 55419-10070 |
KP61 LWR |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1013004 |
KP6#..DLX,S,SE,XL W/SIDE DEFROSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1014004 |
KP6#..DLX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1014005 |
KP6#..DLX,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-1013005 |
KP6#..DLX,S,SE,XL W/SIDE DEFROSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-1013001 |
KP6# W/SIDE DEFROSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1014001 |
KP6#..DLX,STD,XL BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1017003 |
KP61 W/SIDE DEFROSTER,GRAY,GRAY,TRIM1# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55408-1002003 |
KP61 GRAY,GRAY,TRIM1# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-14030 |
KP6#..S,SE,XL |
1 | ||
| 55477-10030 |
KP61 |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-1012003 |
KP61 GRAY,GRAY,TRIM1# |
1 | ||
| 55425A - BRACKET, METER HOOD SET | ||||
| 55425-10020 |
KP61 |
2 | ||
| 55440 - GARNISH, INSTRUMENT PANEL, CENTER | ||||
| 55443-10040 |
KP61 |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-1007003 |
KP61 GRAY,GRAY,TRIM1# |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-10060 |
KP61..S,SE,SI,XL W/TILT STEERING |
1 | ||
| 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55449-10040 |
KP61 |
7 | ||
| 55457B - SPACER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55457-10040 |
KP61 |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55581-10020 |
KP61 |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-1601003 |
KP61 GRAY,GRAY,TRIM1# |
1 | ||
| 55560-12020 |
KP6# |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55573-10010 |
KP61 |
2 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55573-10010 |
KP61 |
2 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55511-1006003 |
KP61 GRAY,GRAY,TRIM1# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-10010 |
KP6#..DLX,S,STD |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-10010 |
KP61..4F..DXA;KP61..DLX,S,SI,STD,XL |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-2401001 |
KP61 BLACK |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-32010 |
KP61 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-10010 |
KP6# |
2 | ||
| 55650-1002003 |
KP61 GRAY,GRAY,TRIM1# |
1 | ||
| 55681 - SUPPORT, INSTRUMENT PANEL REGISTER, NO.1 | ||||
| 55682-10010 |
KP6#..DLX,STD,XL |
1 | ||
| 55682-10040 |
KP61 |
2 | ||
| 55681 - SUPPORT, INSTRUMENT PANEL REGISTER, NO.1 | ||||
| 55682-10010 |
KP6#..DLX,STD,XL |
1 | ||
| 55682-10040 |
KP61 |
2 | ||
| 55691A - PLATE, AIR DAMPER CONTROL NAME, NO.1 | ||||
| 55691-10010 |
KP61 |
2 | ||
| 55691A - PLATE, AIR DAMPER CONTROL NAME, NO.1 | ||||
| 55691-10010 |
KP61 |
2 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-1002003 |
KP61 GRAY,GRAY,TRIM1# |
1 | ||
| 55961-1001005 |
KP6#..DLX,S,SE,XL W/SIDE DEFROSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55961-1001004 |
KP6#..DLX,S,SE,XL W/SIDE DEFROSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 55961-1001001 |
KP6# W/SIDE DEFROSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-1001005 |
KP6#..DLX,S,SE,XL W/SIDE DEFROSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55962-1001001 |
KP6# W/SIDE DEFROSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 55962-1001004 |
KP6#..DLX,S,SE,XL W/SIDE DEFROSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 55962-1002003 |
KP61 GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90161-26007 | ||||
| 90179-06019 | ||||
| 90179-06115 | ||||
| 90183-04029 | ||||
| 90183-05094 | ||||
| 90254-04016 | ||||
| 90468-08008 | ||||
| 90541-03015 | ||||
| 91656-40618 | ||||
| 91656-60818 | ||||
| 91665-40620 | ||||
| 93229-54012 | ||||
| 93385-16012 | ||||
| 93530-54012 | ||||
| 93530-55014 | ||||
| 93567-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
