KP61V-PXKNS (1982)
Toyota Starlet

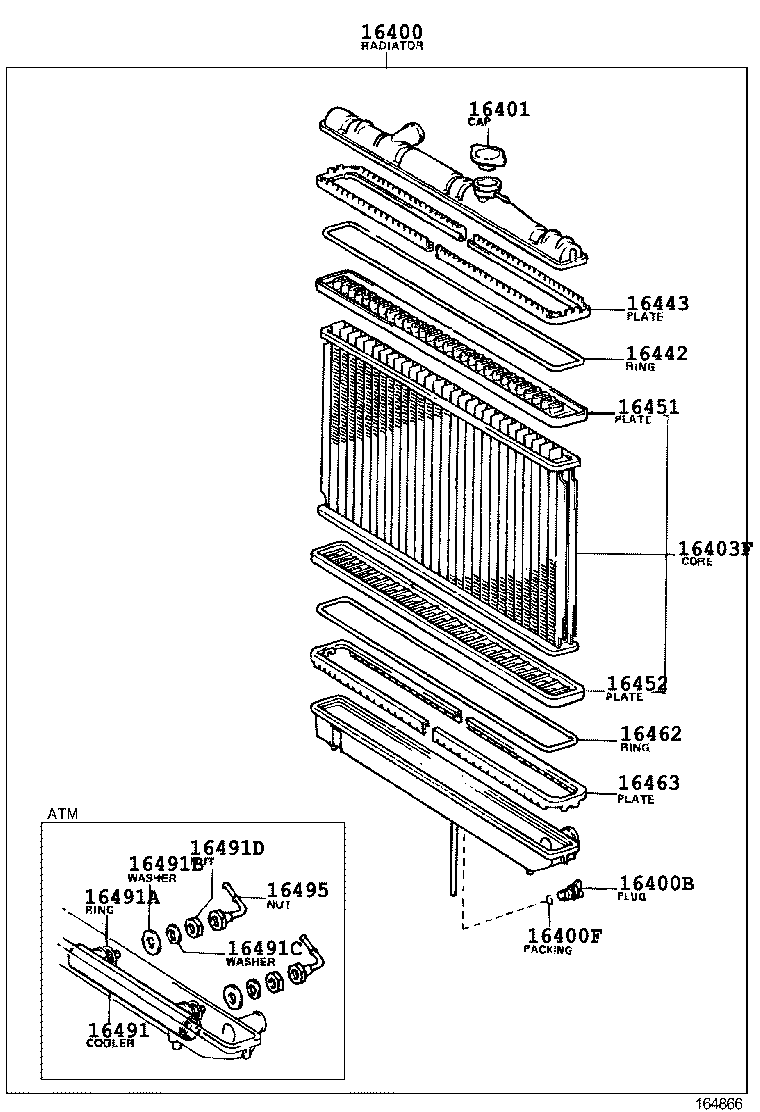

ILLUST NO. 2 OF 2(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-13230 |
4KJ..KP61 |
1 | ||
| 16410-13230 |
4KJ..KP61 |
1 | ||
| 16400-13230 |
4KJ..KP61 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
4K#..KP61 |
1 | ||
| 90910-09054 |
3KHJ,4K#..KP6# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
4K#..KP61 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-13230 |
4KJ..KP61 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-26330 |
3KHJ,4K#..KP6# |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-13351 |
4K#..KP61 |
2 | ||
| 16443-26330 |
3KHJ,4K#..KP6# |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-26330 |
3KHJ,4K#..KP6# |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-26330 |
3KHJ,4K#..KP6# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-26330 |
3KHJ,4K#..KP6# |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-26330 |
3KHJ,4K#..KP6# |
1 | ||
| 16463-13350 |
4K#..KP61 |
1 | ||

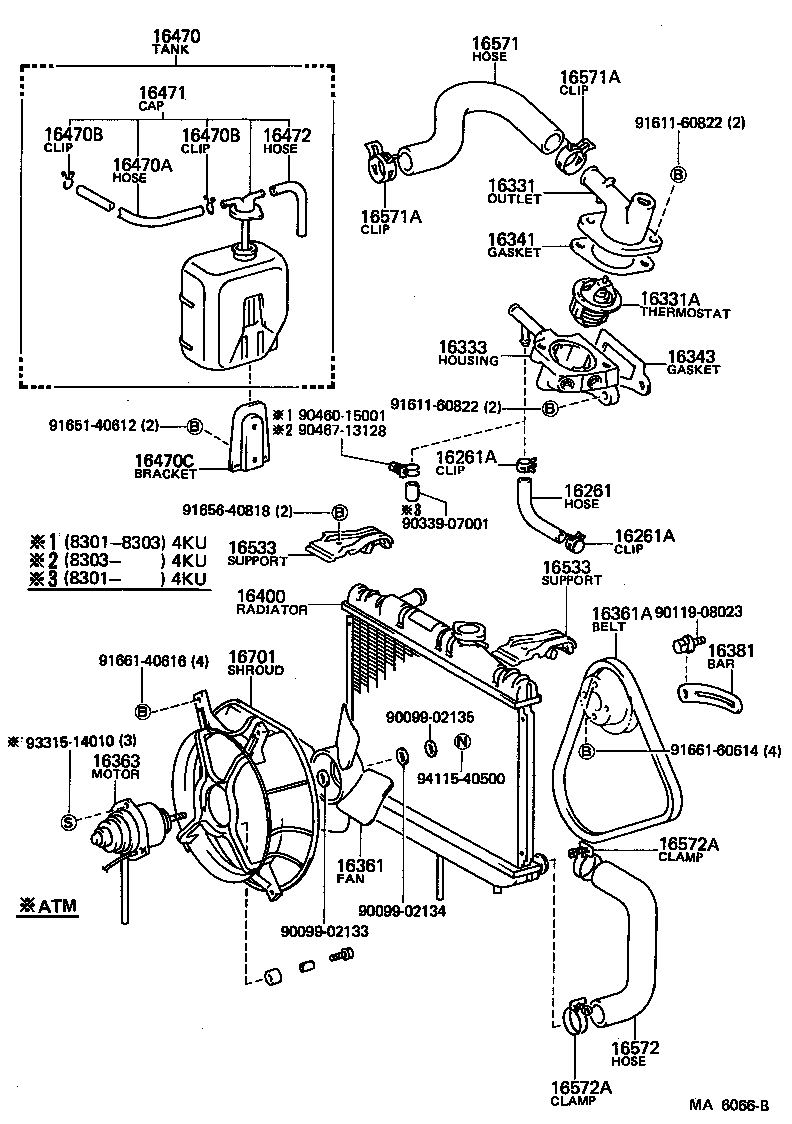

ILLUST NO. 1 OF 2(8208- )4KJ,4KU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-13010 |
3KHJ,4KU,4KJ..KP6# |
1 | ||
| 16261-13010 |
4KJ..KP61 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-15001 |
3KHJ,4KU,4KJ..KP6# |
2 | ||
| 90467-13128 |
4KJ..KP61 |
2 | ||
| 90460-15001 |
4KJ..KP61 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-15001 |
3KHJ,4KU,4KJ..KP6# |
2 | ||
| 90467-13128 |
4KJ..KP61 |
2 | ||
| 90460-15001 |
4KJ..KP61 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-13040 |
4K#..KP61 |
1 | ||
| 16331-13020 |
3KHJ,4K#..KP6# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03040 |
4KU..KP61..4F..DXA;4KJ,4KU..KP61..DLX,S,SE,STD,XL COLD SPEC,*WAX 88-100,KUZEH |
1 | ||
| 90916-03055 |
4KU..KP61..4F..DXA;4KJ,4KU..KP61..DLX,S,SE,STD,XL *WAX 88−100,COLD SPEC,*WAX 88-100 |
1 | ||
| 90916-03054 |
4KU..KP61..4F..DXA;4KJ,4KU..KP61..DLX,S,SE,STD,XL *WAX 82−95,*WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-13100 |
4KJ..KP61 W/COOLER |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22011 |
4K#..KP61 |
1 | ||
| 16361 - FAN | ||||
| 16361-13010 |
3KHJ,4K#..KP6#..MTM 4 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00885 |
4KJ,4KU..KP61 L=885 |
1 | ||
| 99321-00870 |
4KJ,4KU..KP61 L=870 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-13050 |
4K#..KP61..MTM |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-24011 |
3KHJ,4K#..KP6# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-13230 |
4KJ..KP61 |
1 | ||
| 16410-13230 |
4KJ..KP61 |
1 | ||
| 16400-13230 |
4KJ..KP61 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-13020 |
4K#..KP61 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12073 |
4K#..KP61 長さ=420 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3KHJ,4K#..KP6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3KHJ,4K#..KP6# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-12020 |
4K#..KP61 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-13020 |
4K#..KP61 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-95A01 |
4K#..KP61 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-13010 |
4K#..KP61 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-13010 |
4K#..KP61 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16572-13090 |
4K#..KP61 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31001 |
4K#..KP61 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31001 |
4K#..KP61 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
3KHJ,4K#..KP6# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
3KHJ,4K#..KP6# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-13171 |
4K#..KP61..MTM |
1 | ||
| 16711-13170 |
4K#..KP61..MTM |
1 | ||
| Common parts | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90119-08023 | ||||
| 90339-07001 | ||||
| 90460-15001 | ||||
| 90467-13128 | ||||
| 91611-60822 | ||||
| 91651-40612 | ||||
| 91656-40818 | ||||
| 91661-40616 | ||||
| 91661-60614 | ||||
| 93315-14010 | ||||
| 94115-40500 | ||||
