KP61V-PXKDS (1982)
Toyota Starlet
Production
Jan 1982
-
Sep 1984
Engine
4KJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )

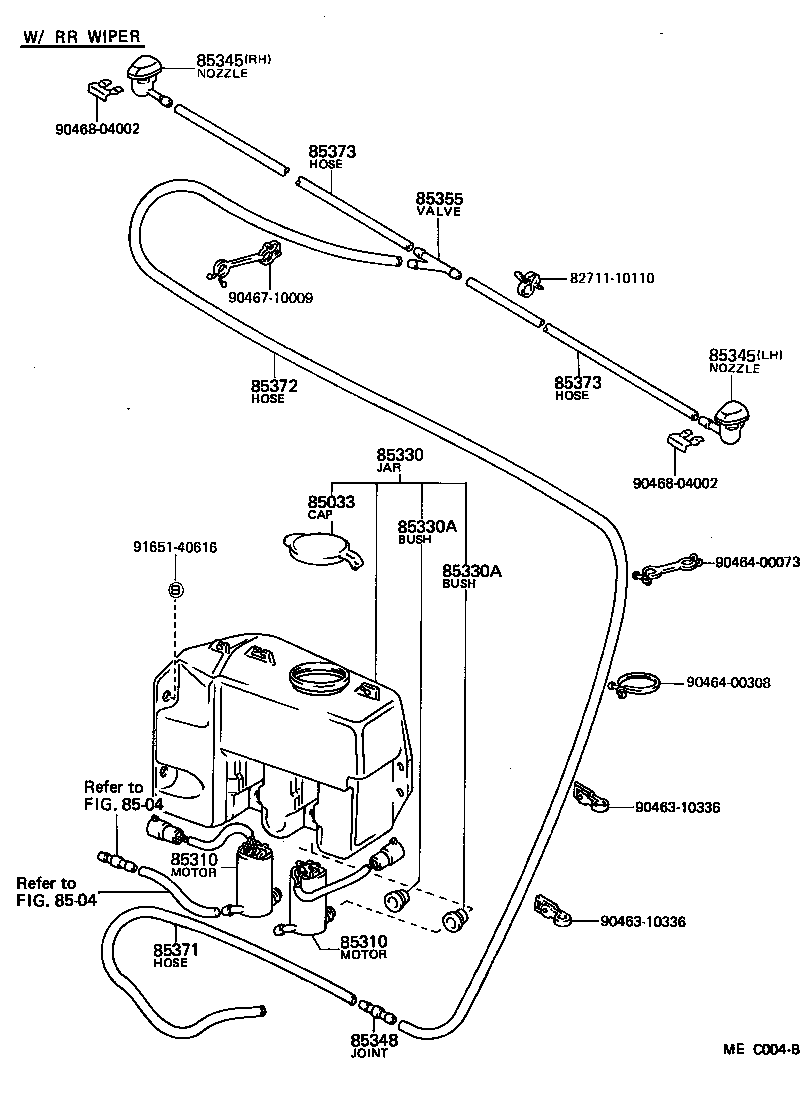

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-60010 |
KP61..S,SE W/HEADLAMP CLEANER |
1 | ||
| 85332-10070 |
KP6# |
1 | ||
| 85332-60010 |
KP61..DLX,DXA,STD,XL |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
KP61..DLX,DXA,STD,XL WASHER,W/O RR WIPER |
1 | ||
| 85310-10090 |
KP61..S,SE HEADLAMP CLEANER |
1 | ||
| 85310-60010 |
KP6# WASHER |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
KP61..DLX,DXA,STD,XL WASHER,W/O RR WIPER |
1 | ||
| 85310-10090 |
KP61..S,SE HEADLAMP CLEANER |
1 | ||
| 85310-60010 |
KP6# WASHER |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-10120 |
KP61..S,SE W/HEADLAMP CLEANER |
1 | ||
| 85330-10081 |
KP61..DLX,DXA,STD,XL |
1 | ||
| 85330-10080 |
KP6# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-10010 |
KP61..S,SE HEADLAMP CLEANER |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-10010 |
KP61..S,SE HEADLAMP CLEANER |
1 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85345-10010 |
KP61 RH |
1 | ||
| 85035-10080 |
KP6# |
1 | ||
| 85346-10010 |
KP61 LH |
1 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85345-10010 |
KP61 RH |
1 | ||
| 85035-10080 |
KP6# |
1 | ||
| 85346-10010 |
KP61 LH |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
KP61 |
2 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85355-14010 |
KP61 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06013 |
KP61 *H,L=385 |
1 | ||
| 90446-06007 |
KP6# |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-06013 |
KP61 長さ=450 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
KP61 *H,L=130,左側,右側 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
KP61 *H,L=130,左側,右側 |
1 | ||
| Common parts | ||||
| 82711-10110 | ||||
| 90463-10336 | ||||
| 90464-00073 | ||||
| 90464-00308 | ||||
| 90467-10009 | ||||
| 90468-04002 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 8504 | ||||
