KP61V-PUKDS (1982)
Toyota Starlet
Production
Jan 1982
-
Sep 1984
Engine
4KJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )02S

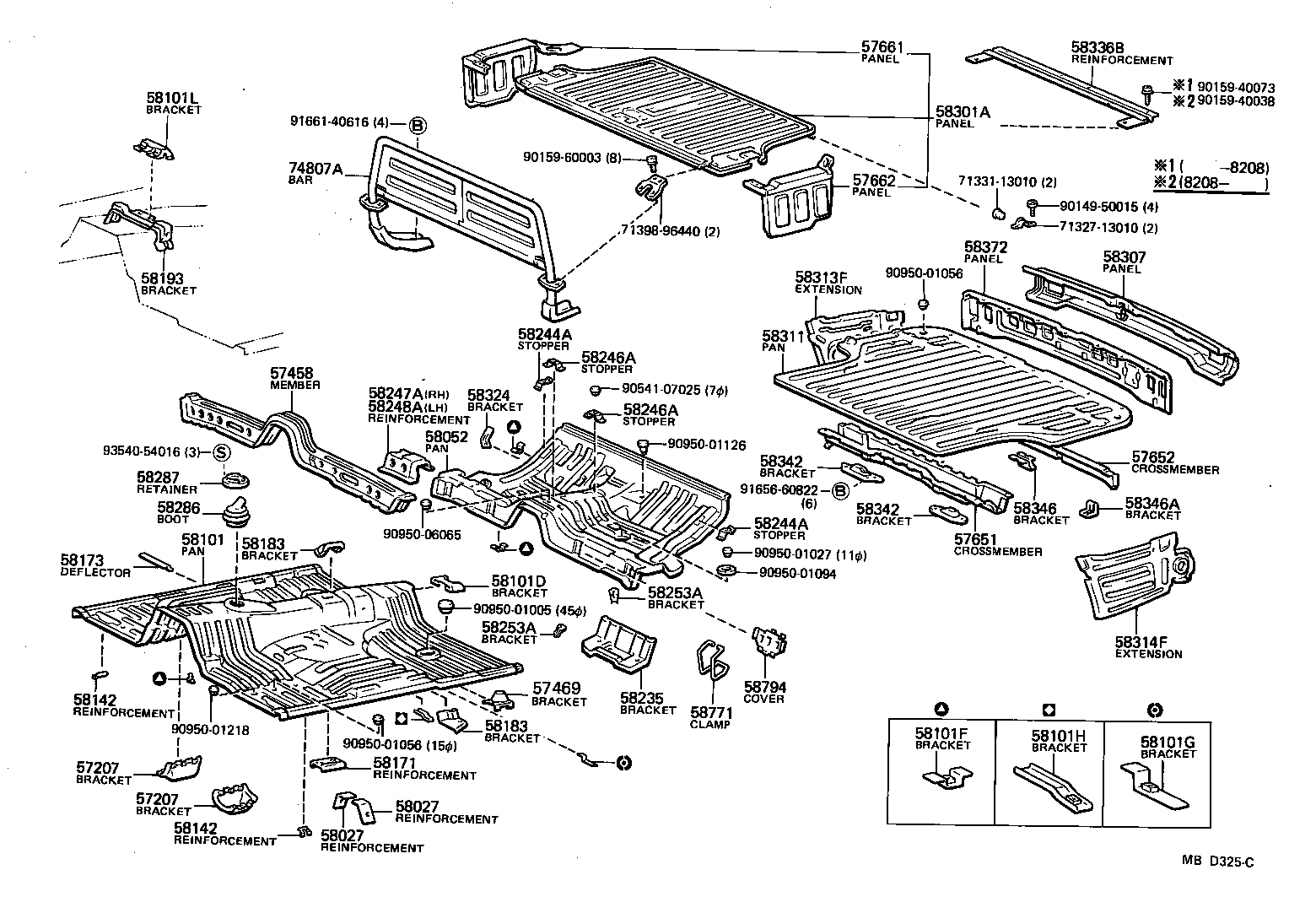

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57208-10020 |
KP61 LH |
1 | ||
| 57207-10010 |
KP6# RH |
1 | ||
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57208-10020 |
KP61 LH |
1 | ||
| 57207-10010 |
KP6# RH |
1 | ||
| 57458 - MEMBER, FRONT FLOOR CROSS, NO.1 | ||||
| 57451-10030 |
KP6# |
1 | ||
| 57408-10040 |
KP61 |
1 | ||
| 57469 - BRACKET, FRONT SEAT, OUTSIDE | ||||
| 57468-10010 |
KP6# RH |
1 | ||
| 57469-10010 |
KP6# LH |
1 | ||
| 57651 - CROSSMEMBER, REAR FLOOR, FRONT | ||||
| 57606-96443 |
KP61..4D |
1 | ||
| 57661 - PANEL, REAR FLOOR SIDE, FRONT RH | ||||
| 57661-96440 |
KP61..02S |
1 | ||
| 57662 - PANEL, REAR FLOOR SIDE, FRONT LH | ||||
| 57662-96440 |
KP61..02S |
1 | ||
| 58027 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1 | ||||
| 58161-10020 |
KP6# |
2 | ||
| 58027 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1 | ||||
| 58161-10020 |
KP6# |
2 | ||
| 58052 - PAN SUB-ASSY, CENTER FLOOR | ||||
| 58211-10110 |
KP61 |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58111-10040 |
KP61..MTM |
1 | ||
| 58101D - BRACKET, PARKING BRAKE CABLE GUIDE | ||||
| 58264-10020 |
KP6# |
1 | ||
| 58101F - BRACKET, MOUNTING, FLOOR, NO.1 | ||||
| 58236-14010 |
KP61 |
3 | ||
| 58236-14010 |
KP61..4D |
13 | ||
| 58101G - BRACKET, MOUNTING, FLOOR, NO.2 | ||||
| 58131-10010 |
KP61..4D |
1 | ||
| 58131-10010 |
KP61 |
1 | ||
| 58101H - BRACKET, MOUNTING, FLOOR, NO.3 | ||||
| 58132-10010 |
KP61 |
2 | ||
| 58101L - BRACKET, MOUNTING, FLOOR, NO.6 | ||||
| 58991-10030 |
KP61 |
1 | ||
| 58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN | ||||
| 58141-10020 |
KP6# |
2 | ||
| 58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN | ||||
| 58141-10020 |
KP6# |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-12030 |
KP6# |
1 | ||
| 58173 - DEFLECTOR, FRONT FLOOR STONE | ||||
| 58173-10020 |
KP6# |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-10030 |
KP6# LH |
1 | ||
| 58183-10030 |
KP6# RH |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-10030 |
KP6# LH |
1 | ||
| 58183-10030 |
KP6# RH |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-10020 |
KP61 |
1 | ||
| 58253A - BRACKET, PARKING CABLE CLAMP | ||||
| 58253-10020 |
KP61 |
1 | ||
| 58253A - BRACKET, PARKING CABLE CLAMP | ||||
| 58253-10020 |
KP61 |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58209-10010 |
KP6#..MTM |
1 | ||
| 58287 - RETAINER, SHIFT LEVER BOOT | ||||
| 58287-10020 |
KP6#..MTM |
1 | ||
| 58301A - PANEL SUB-ASSY, REAR FLOOR | ||||
| 58301-96440 |
KP61..02S |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-10160 |
KP61..S,SE,XL W/BIG TYPE BUMPER |
1 | ||
| 58307-10120 |
KP61..DLX,STD,XL W/SMALL TYPE BUMPER |
1 | ||
| 58307-10192 |
KP61..S,SI W/URETHANE BUMPER |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58301-10070 |
KP61 |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-96440 |
KP61..02S |
1 | ||
| 74807A - BAR SUB-ASSY, REAR SEPARATOR | ||||
| 74807-96440 |
KP61..02S |
1 | ||
| Common parts | ||||
| 71327-13010 | ||||
| 71331-13010 | ||||
| 71398-96440 | ||||
| 90149-50015 | ||||
| 90159-40038 | ||||
| 90159-40073 | ||||
| 90159-60003 | ||||
| 90541-07025 | ||||
| 90950-01005 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01094 | ||||
| 90950-01126 | ||||
| 90950-01218 | ||||
| 90950-06065 | ||||
| 91656-60822 | ||||
| 91661-40616 | ||||
| 93540-54016 | ||||
