KP61V-PUKDS (1982)
Toyota Starlet
Production
Jan 1982
-
Sep 1984
Engine
4KJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )4D

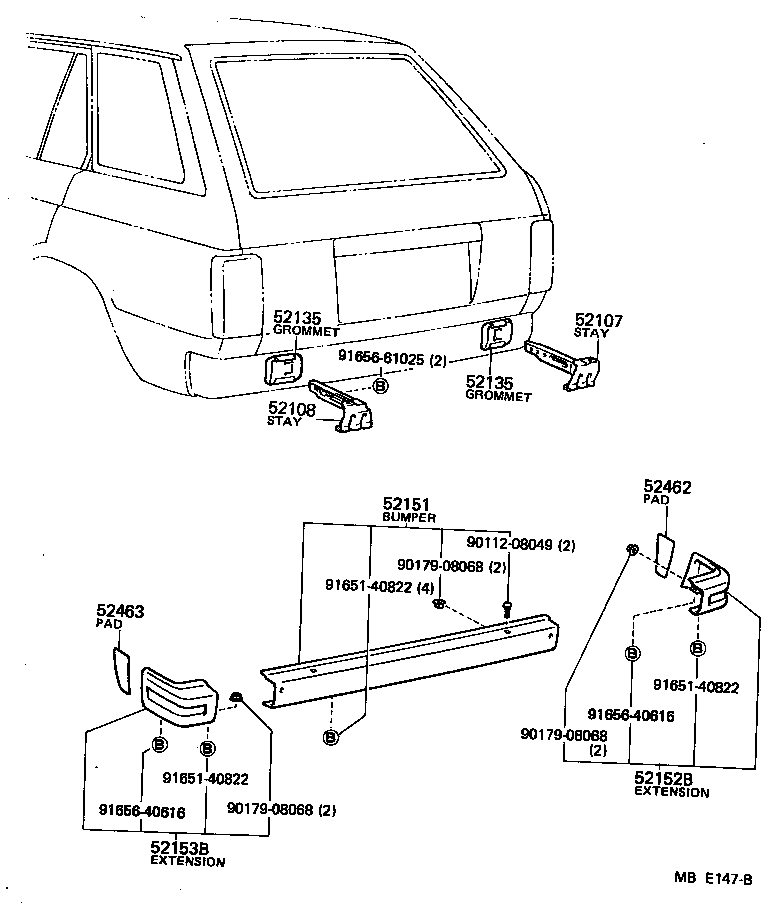

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52107 - STAY SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-10010 |
KP61..DLX,STD,XL SMALL TYPE |
1 | ||
| 52015-10020 |
KP61..S,SE,XL BIG TYPE |
1 | ||
| 52015-96442 |
KP61..4D |
1 | ||
| 52108 - STAY SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-10020 |
KP61..S,SE,XL BIG TYPE |
1 | ||
| 52016-10010 |
KP61..DLX,STD,XL SMALL TYPE |
1 | ||
| 52016-96442 |
KP61..4D |
1 | ||
| 52151 - BUMPER ASSY, REAR | ||||
| 52151-19455 |
KP61..DLX,STD,XL SMALL TYPE |
1 | ||
| 52151-19465 |
KP61..S |
1 | ||
| 52151-19785 |
KP61..4D |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-19255 |
KP61..4D |
1 | ||
| 52106-19095 |
KP61..S,SE,XL BIG TYPE |
1 | ||
| 52103-19125 |
KP61..DLX,STD,XL SMALL TYPE |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52102-19145 |
KP61..DLX,STD,XL SMALL TYPE |
1 | ||
| 52107-19125 |
KP61..S,SE,XL BIG TYPE |
1 | ||
| 52107-19285 |
KP61..4D |
1 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-96440 |
KP61..4D |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52463-96440 |
KP61..4D |
1 | ||
| Common parts | ||||
| 90112-08049 | ||||
| 90179-08068 | ||||
| 91651-40822 | ||||
| 91656-40616 | ||||
| 91656-61025 | ||||
