KP61-PHMSS (1978)

Toyota Starlet

Production Feb 1978 - Sep 1984
Engine 4KU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8208)

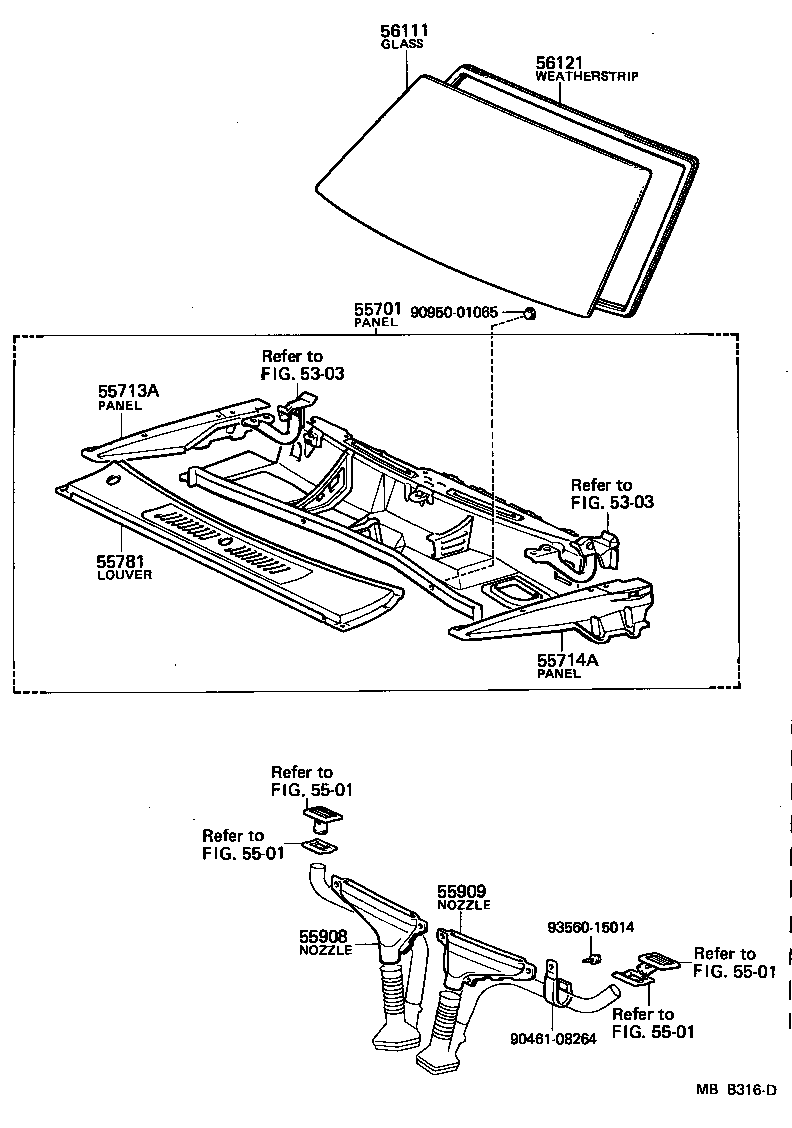

Click highlighted areas on diagram

diagram 5303 5303 5501 5501 5501 5501 55701 55713A 55714A 55781 55908 55909 56111 56121 9046108264 9095001065 9356015014
Part # Description Qty Price
55701 - PANEL SUB-ASSY, COWL
55700-10011

KP6#

 1
55700-10010

KP6#

 1
55700-10090

KP61

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-10030

KP6#

 1
55713-10031

KP6#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-10020

KP6#

 1
55714-10021

KP6#

 1
55781 - LOUVER, COWL VENTILATOR
55711-10051

KP6#

 1
55711-10050

KP6#

 1
55908 - NOZZLE SUB-ASSY, DEFROSTER, RH
55091-10030

KP6#

 1
55909 - NOZZLE SUB-ASSY, DEFROSTER, LH
55092-10010

KP6#

 1
56111 - GLASS, WINDSHIELD
56111-10140

KP61..4F..DXA;KP61..DLX,S,SE,SI,XL

*TZT,T=5.0

 1
56111-10170

KP6#..DLX,S,SE,XL

*TL,T=5.7

 1
56111-10140

KP6#..DLX,DXA,S,SE,XL

*TZT,T=5.0

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-10100

KP6#..DLX,DXA,SE,XL

W/MOULDING

 1
56121-10100

KP61..SE,XL

W/MOULDING

 1
56121-10110

KP6#..S,STD

W/O MOULDING

 1
56121-10110

KP61..DLX,DXA,S,SI,STD

W/O MOULDING

 1
Common parts
90461-08264
90950-01065
93560-15014
Linked diagrams
5303
5501

(8208- )

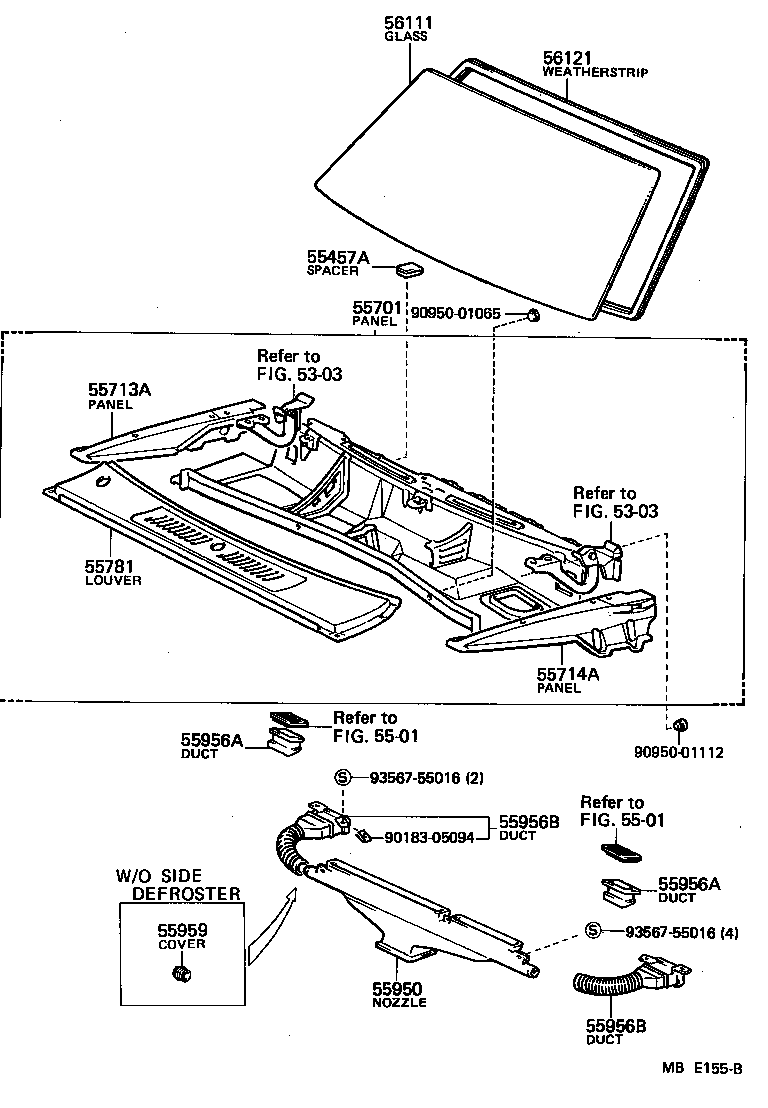

Click highlighted areas on diagram

diagram 5303 5303 5501 5501 55457A 55701 55713A 55714A 55781 55950 55956A 55956A 55956B 55956B 55959 56111 56121 9018305094 9095001065 9095001112 9356755016 9356755016
Part # Description Qty Price
55457A - SPACER, INSTRUMENT PANEL SAFETY PAD
55457-10030

KP61

 2
55701 - PANEL SUB-ASSY, COWL
55700-10011

KP6#

 1
55700-10010

KP6#

 1
55700-10090

KP61

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-10030

KP6#

 1
55713-10031

KP6#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-10020

KP6#

 1
55714-10021

KP6#

 1
55781 - LOUVER, COWL VENTILATOR
55711-10051

KP6#

 1
55711-10050

KP6#

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-10010

KP61

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55970-10010

KP61

RH

 1
55980-10010

KP61

LH

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55970-10010

KP61

RH

 1
55980-10010

KP61

LH

 1
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55094-10010

KP61

LH

 1
55093-10010

KP61

RH

 1
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55094-10010

KP61

LH

 1
55093-10010

KP61

RH

 1
56111 - GLASS, WINDSHIELD
56111-10140

KP61..4F..DXA;KP61..DLX,S,SE,SI,XL

*TZT,T=5.0

 1
56111-10170

KP6#..DLX,S,SE,XL

*TL,T=5.7

 1
56111-10140

KP6#..DLX,DXA,S,SE,XL

*TZT,T=5.0

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-10100

KP6#..DLX,DXA,SE,XL

W/MOULDING

 1
56121-10100

KP61..SE,XL

W/MOULDING

 1
56121-10110

KP6#..S,STD

W/O MOULDING

 1
56121-10110

KP61..DLX,DXA,S,SI,STD

W/O MOULDING

 1
Common parts
90183-05094
90950-01065
90950-01112
93567-55016
Linked diagrams
5303
5501
