KP61-PHMNS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 4KU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

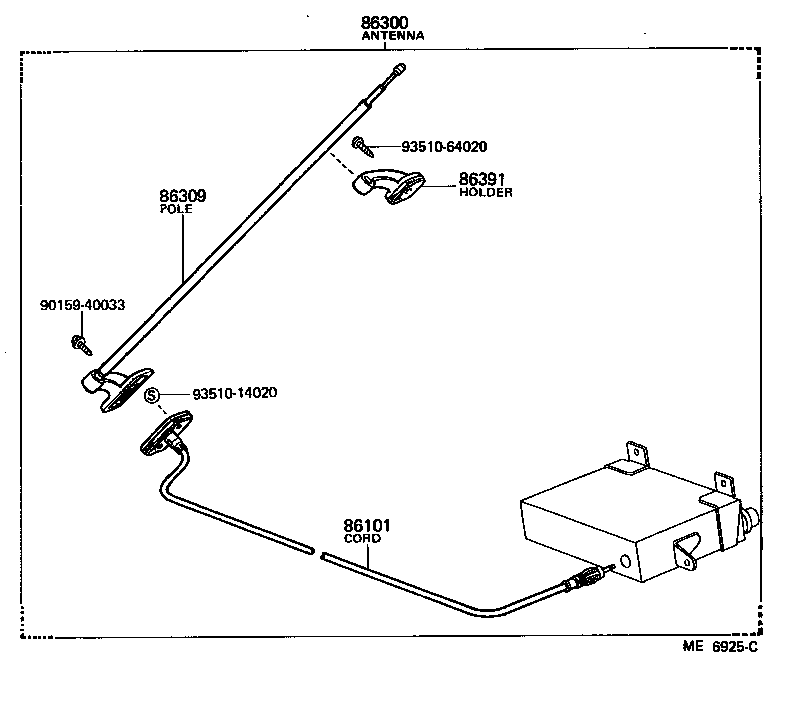

Click highlighted areas on diagram

diagram 86101 86300 86309 86391 9015940033 9351014020 9351064020
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-10031

KP61..DLX,DXA,S,SE,XL

 1
86101-10030

KP6#

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-10101

KP61..DLX,DXA,S,SE,XL

 1
86300-10100

KP6#

 1
86309 - POLE SUB-ASSY, PILLAR ANTENNA
86309-10010

KP6#

 1
86309-10011

KP61..DLX,DXA,S,SE,XL

 1
86391 - HOLDER, ANTENNA
86391-10040

KP6#

 1
86391-10040

KP61..DLX,DXA,S,SE,XL

 1
Common parts
90159-40033
93510-14020
93510-64020
