KP61-PHMNS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 4KU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8005)S,SE ; (8005-8108)S

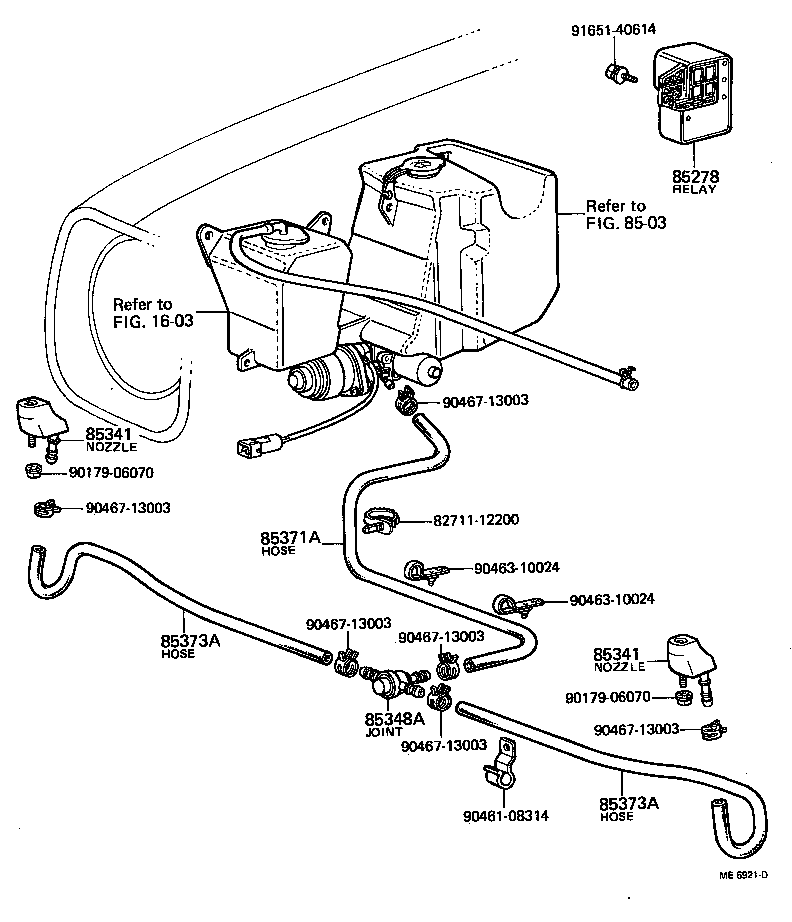

Click highlighted areas on diagram

diagram 1603 8271112200 8503 85278 85341 85341 85348A 85371A 85373A 85373A 9017906070 9017906070 9046108314 9046310024 9046310024 9046713003 9046713003 9046713003 9046713003 9046713003 9046713003 9165140614
Part # Description Qty Price
85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL
85276-14010

KP61..S,SE

 1
85276-22020

KP61..S

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-10130

KP61..S,SE

RH

 1
85035-10131

KP61..S

 2
85045-10010

KP61..S,SE

LH

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-10130

KP61..S,SE

RH

 1
85035-10131

KP61..S

 2
85045-10010

KP61..S,SE

LH

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85031-12010

KP61..S

 1
85031-12010

KP61..S,SE

 1
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85343-10041

KP61..S

*H,L=900

 1
85343-10040

KP61..S,SE

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85343-10010

KP61..S,SE

長さ=150,RH

 1
85343-10070

KP61..S,SE

LH

 1
85343-10011

KP61..S

*H,L=550

 2
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85343-10010

KP61..S,SE

長さ=150,RH

 1
85343-10070

KP61..S,SE

LH

 1
85343-10011

KP61..S

*H,L=550

 2
Common parts
82711-12200
90179-06070
90461-08314
90463-10024
90467-13003
91651-40614
Linked diagrams
1603
8503
