KP61-PHMNS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 4KU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

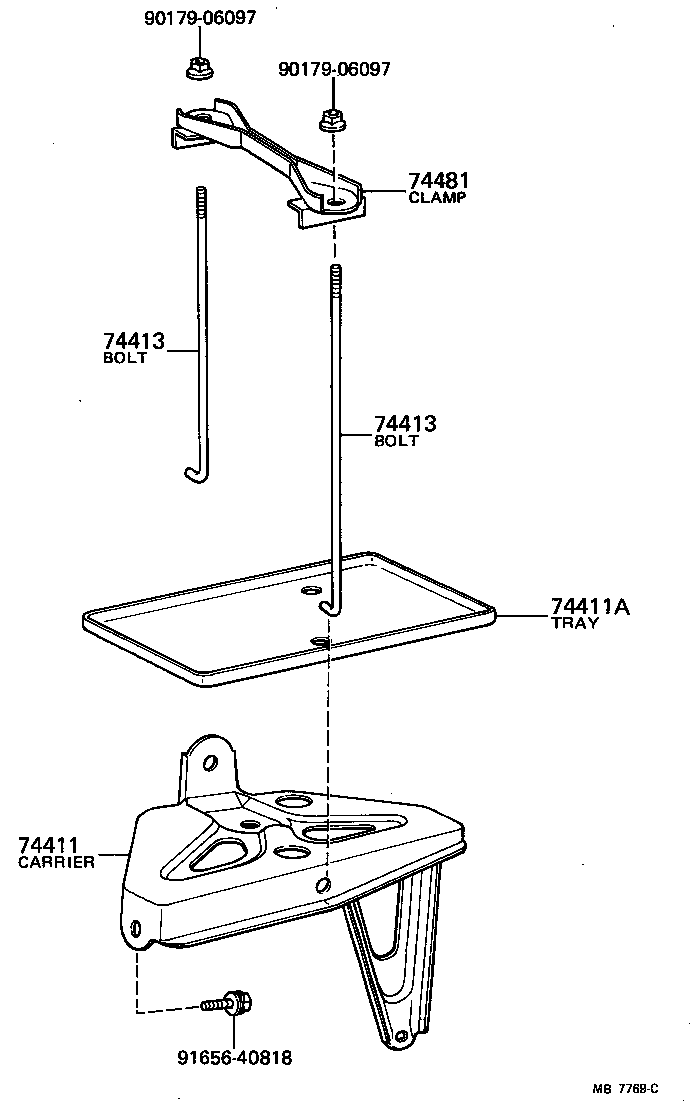

Click highlighted areas on diagram

diagram 74411 74411A 74413 74413 74481 9017906097 9017906097 9165640818
Part # Description Qty Price
74411 - CARRIER, BATTERY
74403-10010

KP6#

 1
74411A - TRAY, BATTERY
74431-14010

KP6#

NS40S

 1
74431-14020

KP6#

NS40L,NS60L

 1
74431-14010

KP6#

NS40SL

 1
74413 - BOLT, BATTERY CLAMP
74451-10020

KP6#

L=227

 1
74451-10030

KP6#

L=200

 1
74413 - BOLT, BATTERY CLAMP
74451-10020

KP6#

L=227

 1
74451-10030

KP6#

L=200

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-10060

KP6#

 1
Common parts
90179-06097
91656-40818
