KP61-PHMNS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 4KU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

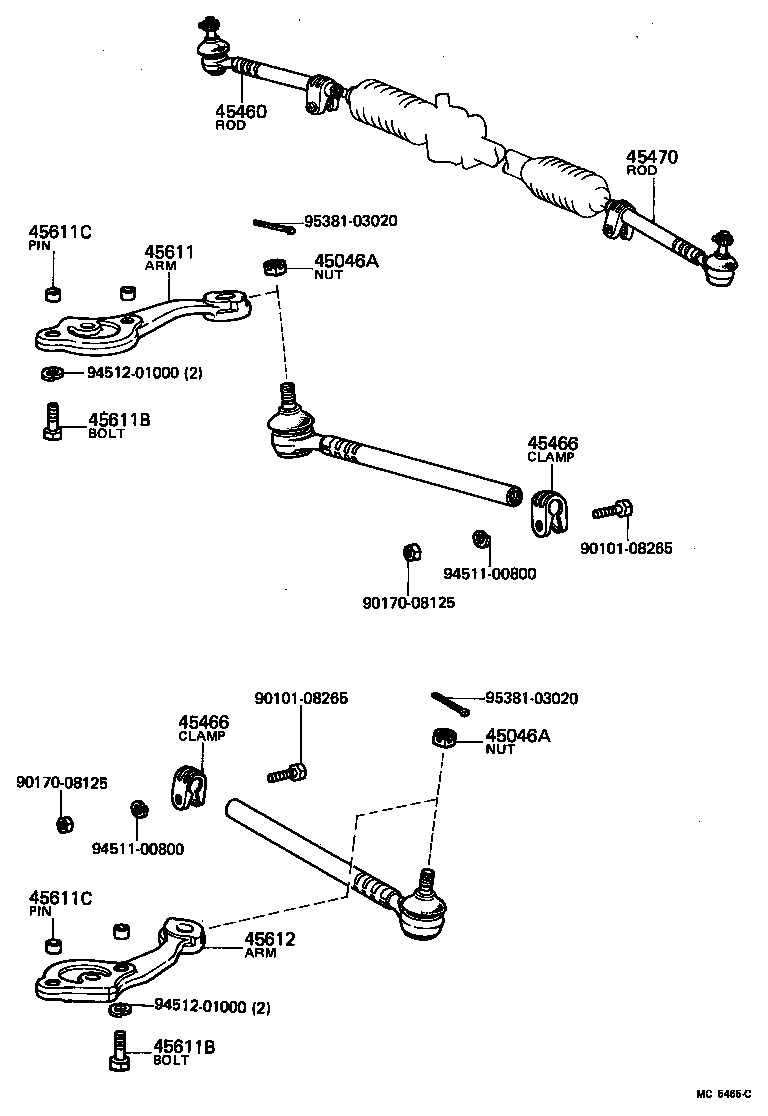

Click highlighted areas on diagram

diagram 45046A 45046A 45460 45466 45466 45470 45611 45611B 45611B 45611C 45611C 45612 9010108265 9010108265 9017008125 9017008125 9451100800 9451100800 9451201000 9451201000 9538103020 9538103020
Part # Description Qty Price
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

KP6#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

KP6#

 2
45460 - ROD ASSY, TIE, RH
45460-19105

KP6#

 1
45466 - CLAMP, TIE ROD END
45466-22010

KP6#

 2
45466 - CLAMP, TIE ROD END
45466-22010

KP6#

 2
45470 - ROD ASSY, TIE, LH
45460-19105

KP6#

 1
45611 - ARM, STEERING KNUCKLE, RH
45611-10030

KP6#

 1
45611-10020

KP6#

 1
45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90101-10275

KP6#

 4
45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90101-10275

KP6#

 4
45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90253-13013

KP6#

 4
45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90253-13013

KP6#

 4
45612 - ARM, STEERING KNUCKLE, LH
45612-10020

KP6#

 1
45612-10030

KP6#

 1
Common parts
90101-08265
90170-08125
94511-00800
94512-01000
95381-03020
