KP61-PHMGS (1978)

Toyota Starlet

Production Feb 1978 - Sep 1984
Engine 4KU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )4D,5D

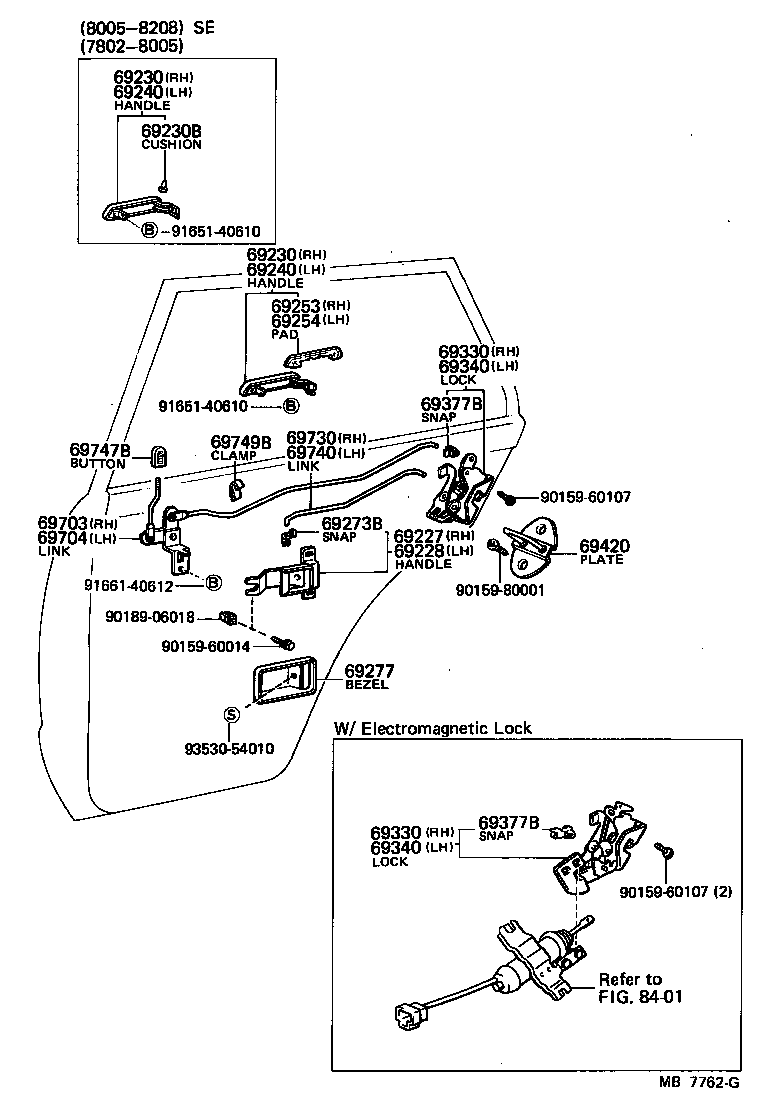

Click highlighted areas on diagram

diagram 69227 69228 69230 69230 69230B 69240 69240 69253 69254 69273B 69277 69330 69330 69340 69340 69377B 69377B 69420 69703 69704 69730 69740 69747B 69749B 8401 9015960014 9015960107 9015960107 9015980001 9018906018 9165140610 9165140610 9166140612 9353054010
Part # Description Qty Price
69227 - HANDLE, REAR DOOR INSIDE, RH
69205-1204004

KP6#..(4D,5D)..(DLX,S,SE,XL)

BLUE,BLUE,TRIM8#

 1
69205-1204001

KP6#..4D,5D

BLACK,BLACK,TRIM2#

 1
69205-1002006

KP6#..(4D,5D)..(DLX,S,SE,XL)

LIGHT BROWN,BROWN,TRIM0#,4#

 1
69205-1002004

KP6#..(4D,5D)..(DLX,S,SE,XL)

BLUE,BLUE,TRIM8#

 1
69205-1002005

KP6#..(4D,5D)..(DLX,S,SE,XL)

BEIGE,BEIGE,TRIM4#

 1
69205-1002003

KP61..4D,5D

GRAY,GRAY,TRIM1#

 1
69205-1002001

KP6#..4D,5D

BLACK,BLACK,TRIM2#

 1
69205-1204005

KP6#..(4D,5D)..(DLX,S,SE,XL)

BEIGE,BEIGE,TRIM4#

 1
69205-1002006

KP6#..(4D,5D)..(DLX,SE,XL)..05S

LIGHT BROWN,BROWN,TRIM2#,4#

 1
69205-1002004

KP61..5D

BLUE,BLUE,TRIM2#,4#,8#

 1
69205-1002002

KP61..SE

DARK WINE,RED/MAROON,TRIM3#

 1
69205-1002016

KP61..5D..(DLX,SE,XL)

BROWN,BROWN,TRIM1#,4#

 1
69228 - HANDLE, REAR DOOR INSIDE, LH
69206-1002004

KP61..5D

BLUE,BLUE,TRIM2#,4#,8#

 1
69206-1204004

KP6#..(4D,5D)..(DLX,S,SE,XL)

BLUE,BLUE,TRIM8#

 1
69206-1204001

KP6#..4D,5D

BLACK,BLACK,TRIM2#

 1
69206-1002005

KP6#..(4D,5D)..(DLX,S,SE,XL)

BEIGE,BEIGE,TRIM4#

 1
69206-1204005

KP6#..(4D,5D)..(DLX,S,SE,XL)

BEIGE,BEIGE,TRIM4#

 1
69206-1002002

KP61..SE

DARK WINE,RED/MAROON,TRIM3#

 1
69206-1002016

KP61..5D..(DLX,SE,XL)

BROWN,BROWN,TRIM1#,4#

 1
69206-1002003

KP61..4D,5D

GRAY,GRAY,TRIM1#

 1
69206-1002004

KP6#..(4D,5D)..(DLX,S,SE,XL)

BLUE,BLUE,TRIM8#

 1
69206-1002001

KP6#..4D,5D

BLACK,BLACK,TRIM2#

 1
69206-1002006

KP6#..(4D,5D)..(DLX,SE,XL)..05S

LIGHT BROWN,BROWN,TRIM2#,4#

 1
69206-1002006

KP6#..(4D,5D)..(DLX,S,SE,XL)

LIGHT BROWN,BROWN,TRIM4#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-10020

KP61..5D..SE

CHROME PLATED

 1
69230-10030

KP61..5D..S

BLACK

 1
69230-10020

KP6#..4D,5D

CHROME PLATED

 1
69230-10031

KP6#..(4D,5D)..(DLX,S,STD,XL)

BLACK

 1
69230-10031

KP61..4D,5D

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-10020

KP61..5D..SE

CHROME PLATED

 1
69230-10030

KP61..5D..S

BLACK

 1
69230-10020

KP6#..4D,5D

CHROME PLATED

 1
69230-10031

KP6#..(4D,5D)..(DLX,S,STD,XL)

BLACK

 1
69230-10031

KP61..4D,5D

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-03021

KP6#..4D,5D

 2
90541-03021

KP61..5D..SE

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-10031

KP6#..(4D,5D)..(DLX,S,STD,XL)

BLACK

 1
69240-10020

KP61..5D..SE

CHROME PLATED

 1
69240-10030

KP61..5D..S

BLACK

 1
69240-10020

KP6#..4D,5D

CHROME PLATED

 1
69240-10031

KP61..4D,5D

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-10031

KP6#..(4D,5D)..(DLX,S,STD,XL)

BLACK

 1
69240-10020

KP61..5D..SE

CHROME PLATED

 1
69240-10030

KP61..5D..S

BLACK

 1
69240-10020

KP6#..4D,5D

CHROME PLATED

 1
69240-10031

KP61..4D,5D

 1
69253 - PAD, FRONT DOOR OUTSIDE HANDLE, REAR RH
69241-10030

KP61..4D,5D

 1
69241-10030

KP6#..(4D,5D)..(DLX,S,STD,XL)

 1
69254 - PAD, DOOR OUTSIDE HANDLE, REAR LH
69241-10030

KP6#..(4D,5D)..(DLX,S,STD,XL)

 1
69241-10030

KP61..4D,5D

 1
69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)
69279-10010

KP6#..4D,5D

RH

 1
69288-10010

KP6#..4D,5D

LH

 1
69279-12010

KP6#..4D,5D

 2
69277 - BEZEL, REAR DOOR INSIDE HANDLE
69276-1001204

KP6#..(4D,5D)..(DLX,S,SE,XL)

BLUE,BLUE,TRIM8#

 2
69276-1001204

KP61..5D

BLUE,BLUE,TRIM2#,4#,8#

 2
69276-1001205

KP6#..(4D,5D)..(DLX,S,SE,XL)

BEIGE,BEIGE,TRIM4#

 2
69276-1001246

KP6#..(4D,5D)..(DLX,S,SE,XL)

LIGHT BROWN,BROWN,TRIM0#,4#

 2
69276-1001246

KP6#..(4D,5D)..(DLX,SE,XL)..05S

LIGHT BROWN,BROWN,TRIM2#,4#

 2
69276-1001210

KP61..5D..(DLX,SE,XL)

BROWN,BROWN,TRIM1#,4#

 2
69276-1001201

KP6#..4D,5D

BLACK,BLACK,TRIM2#

 2
69276-1001202

KP61..SE

DARK WINE,RED/MAROON,TRIM3#

 2
69276-1001203

KP61..4D,5D

GRAY,GRAY,TRIM1#

 2
69330 - LOCK ASSY, REAR DOOR, RH
69330-10020

KP61..5D

 1
69330-10021

KP61..5D

W/O ELECTROMAGNETIC LOCK

 1
69330-10030

KP61..SE

W/ELECTROMAGNETIC LOCK

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-10020

KP61..5D

 1
69330-10021

KP61..5D

W/O ELECTROMAGNETIC LOCK

 1
69330-10030

KP61..SE

W/ELECTROMAGNETIC LOCK

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-10020

KP61..5D

 1
69340-10030

KP61..SE

W/ELECTROMAGNETIC LOCK

 1
69340-10021

KP61..5D

W/O ELECTROMAGNETIC LOCK

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-10020

KP61..5D

 1
69340-10030

KP61..SE

W/ELECTROMAGNETIC LOCK

 1
69340-10021

KP61..5D

W/O ELECTROMAGNETIC LOCK

 1
69377B - SNAP, REAR DOOR LOCK CONTROL ROD
69377-30020

KP6#..4D,5D

 4
69377B - SNAP, REAR DOOR LOCK CONTROL ROD
69377-30020

KP6#..4D,5D

 4
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-22020

KP6#..4D,5D

 2
69410-10020

KP61..4D,5D

 2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69770-10010

KP6#..4D,5D

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69780-10010

KP6#..4D,5D

 1
69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH
69713-10020

KP6#..4D,5D

 1
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69714-10010

KP6#..4D,5D

 1
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69741-20020

KP6#..4D,5D

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

KP6#..4D,5D

 2
69749-30020

KP61..4D,5D

 2
Common parts
90159-60014
90159-60107
90159-80001
90189-06018
91651-40610
91661-40612
93530-54010
Linked diagrams
8401
