KP61-PHMGS (1978)

Toyota Starlet

Production Feb 1978 - Sep 1984
Engine 4KU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

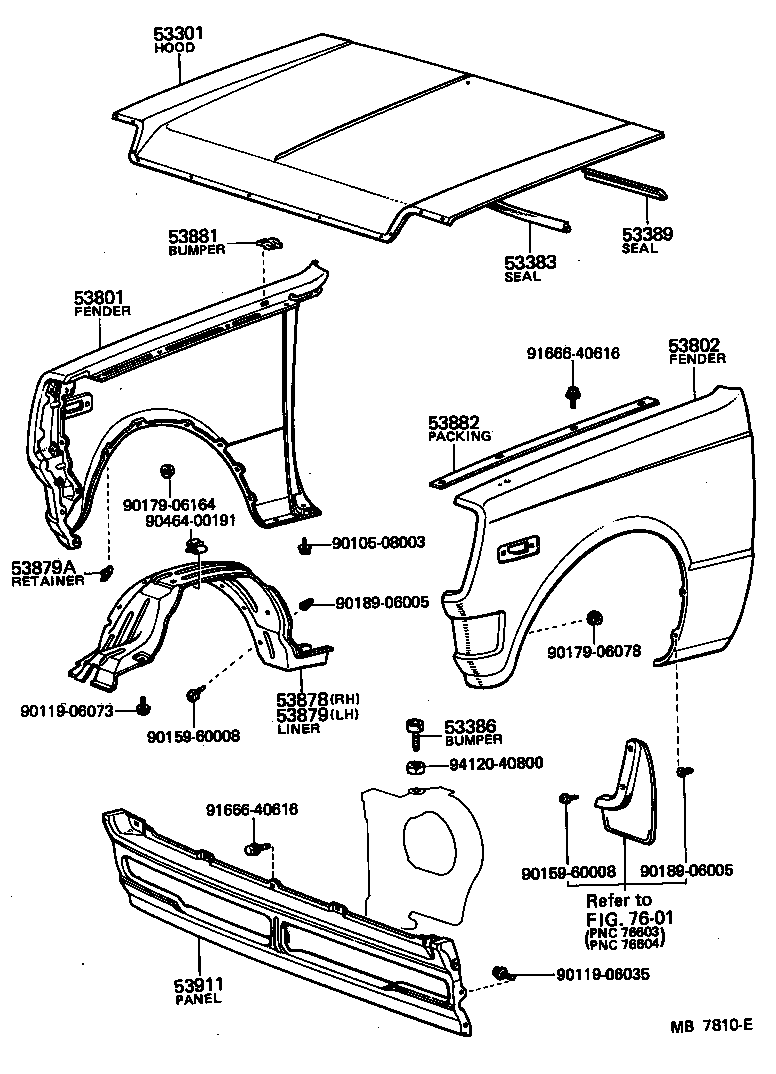

(7802-8005)

Click highlighted areas on diagram

diagram 53301 53383 53386 53389 53801 53802 53878 53879 53879A 53881 53882 53911 7601 9010508003 9011906035 9011906073 9015960008 9015960008 9017906078 9017906164 9018906005 9018906005 9046400191 9166640616 9166640616 9412040800
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-10151

KP6#

 1
53301-10152

KP61

 1
53301-10150

KP6#

 1
53383 - SEAL, HOOD TO COWL TOP
53383-10011

KP6#

 1
53386 - BUMPER, HOOD, REAR
53382-20011

KP6#

 2
53382-12040

KP6#

 2
53389 - SEAL, HOOD TO COWL TOP SIDE
53389-10011

KP6#

 2
53389-10020

KP61

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-10270

KP6#

 1
53801-10292

KP61..SED

W/O FENDER MIRROR HOLE

 1
53801-10330

KP61..SED..(DLX,DXA,S,SE,XL)

W/BIG TYPE OR URETHANE BUMPER

 1
53801-10272

KP61

W/FENDER MIRROR HOLE

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-10380

KP61..SED..(DLX,DXA,S,SE,XL)

W/BIG TYPE OR URETHANE BUMPER

 1
53802-10320

KP6#

 1
53802-10323

KP61

W/FENDER MIRROR HOLE

 1
53802-10342

KP61..SED

W/O FENDER MIRROR HOLE

 1
53878 - LINER, FRONT FENDER, RH
53875-10011

KP6#

 1
53875-10010

KP6#

 1
53879 - LINER, FRONT FENDER, LH
53876-10011

KP6#

 1
53876-10010

KP6#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-10010

KP6#

 8
53881 - BUMPER, FENDER TO HOOD
53387-10010

KP6#

LH

 1
53384-10040

KP6#

 2
53384-10040

KP6#

RH

 1
53882 - PACKING, FRONT FENDER MAIN
53882-10040

KP6#

 2
53882-10041

KP6#

 2
53882-10042

KP61

 2
53911 - PANEL, FRONT VALANCE
53901-10020

KP6#

 1
53901-10060

KP61..SED..(DLX,DXA,S,SE,XL)

UPR,W/BIG OR URETHANE BUMPER

 1
53902-10020

KP61..SED..(DLX,DXA,S,SE,XL)

LWR,W/BIG OR URETHANE BUMPER

 1
53902-10031

KP61

 1
Common parts
90105-08003
90119-06035
90119-06073
90159-60008
90179-06078
90179-06164
90189-06005
90464-00191
91666-40616
94120-40800
Linked diagrams
7601

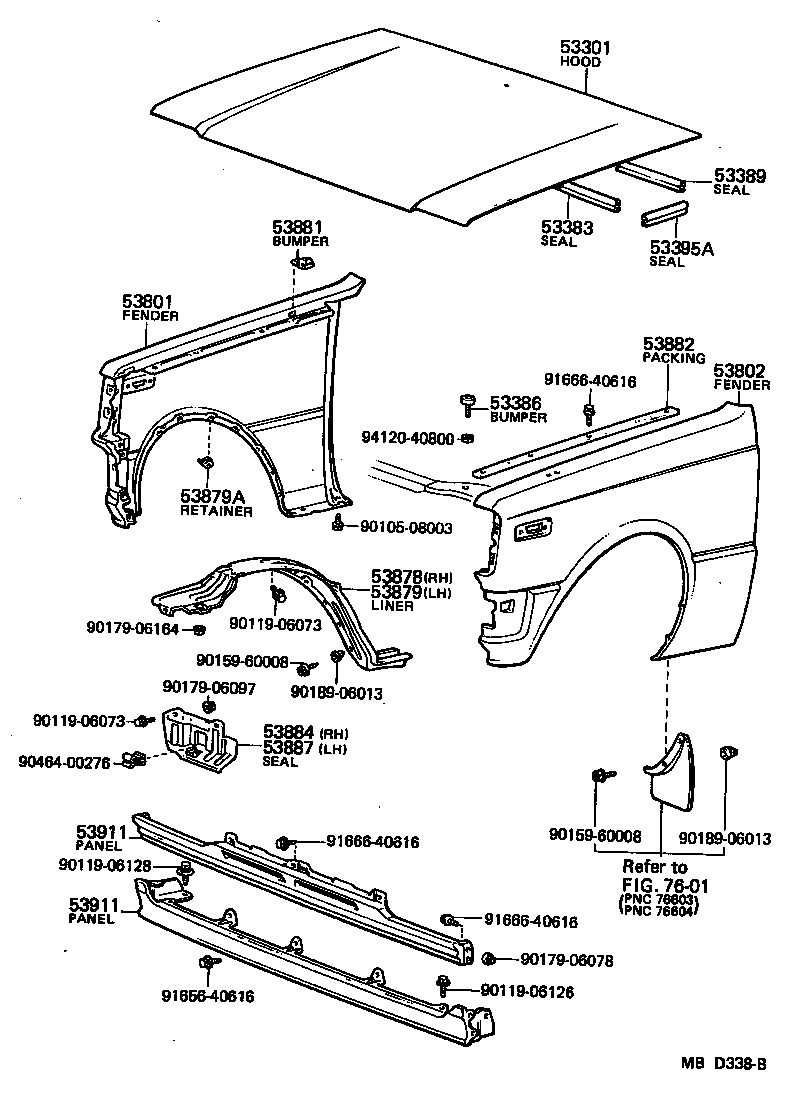

(8005-8208)

Click highlighted areas on diagram

diagram 53301 53383 53386 53389 53395A 53801 53802 53878 53879 53879A 53881 53882 53884 53887 53911 53911 7601 9010508003 9011906073 9011906073 9011906126 9011906128 9015960008 9015960008 9017906078 9017906097 9017906164 9018906013 9018906013 9046400276 9165640616 9166640616 9166640616 9166640616 9412040800
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-10151

KP6#

 1
53301-10152

KP61

 1
53301-10150

KP6#

 1
53383 - SEAL, HOOD TO COWL TOP
53383-10011

KP6#

 1
53386 - BUMPER, HOOD, REAR
53382-20011

KP6#

 2
53382-12040

KP6#

 2
53389 - SEAL, HOOD TO COWL TOP SIDE
53389-10011

KP6#

 2
53389-10020

KP61

 1
53395A - SEAL, HOOD TO FRONT END PANEL, NO.1
53395-10010

KP6#

 2
53801 - FENDER SUB-ASSY, FRONT RH
53801-10270

KP6#

 1
53801-10292

KP61..SED

W/O FENDER MIRROR HOLE

 1
53801-10330

KP61..SED..(DLX,DXA,S,SE,XL)

W/BIG TYPE OR URETHANE BUMPER

 1
53801-10272

KP61

W/FENDER MIRROR HOLE

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-10380

KP61..SED..(DLX,DXA,S,SE,XL)

W/BIG TYPE OR URETHANE BUMPER

 1
53802-10320

KP6#

 1
53802-10323

KP61

W/FENDER MIRROR HOLE

 1
53802-10342

KP61..SED

W/O FENDER MIRROR HOLE

 1
53878 - LINER, FRONT FENDER, RH
53875-10011

KP6#

 1
53875-10010

KP6#

 1
53879 - LINER, FRONT FENDER, LH
53876-10011

KP6#

 1
53876-10010

KP6#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-10010

KP6#

 8
53881 - BUMPER, FENDER TO HOOD
53387-10010

KP6#

LH

 1
53384-10040

KP6#

 2
53384-10040

KP6#

RH

 1
53882 - PACKING, FRONT FENDER MAIN
53882-10040

KP6#

 2
53882-10041

KP6#

 2
53882-10042

KP61

 2
53884 - SEAL, FRONT FENDER SPLASH SHIELD, RH
53888-10020

KP6#

 1
53887 - SEAL, FRONT FENDER SPLASH SHIELD, LH
53889-10010

KP6#

 1
53911 - PANEL, FRONT VALANCE
53901-10020

KP6#

 1
53901-10060

KP61..SED..(DLX,DXA,S,SE,XL)

UPR,W/BIG OR URETHANE BUMPER

 1
53902-10020

KP61..SED..(DLX,DXA,S,SE,XL)

LWR,W/BIG OR URETHANE BUMPER

 1
53902-10031

KP61

 1
53911 - PANEL, FRONT VALANCE
53901-10020

KP6#

 1
53901-10060

KP61..SED..(DLX,DXA,S,SE,XL)

UPR,W/BIG OR URETHANE BUMPER

 1
53902-10020

KP61..SED..(DLX,DXA,S,SE,XL)

LWR,W/BIG OR URETHANE BUMPER

 1
53902-10031

KP61

 1
Common parts
90105-08003
90119-06073
90119-06126
90119-06128
90159-60008
90179-06078
90179-06097
90179-06164
90189-06013
90464-00276
91656-40616
91666-40616
94120-40800
Linked diagrams
7601

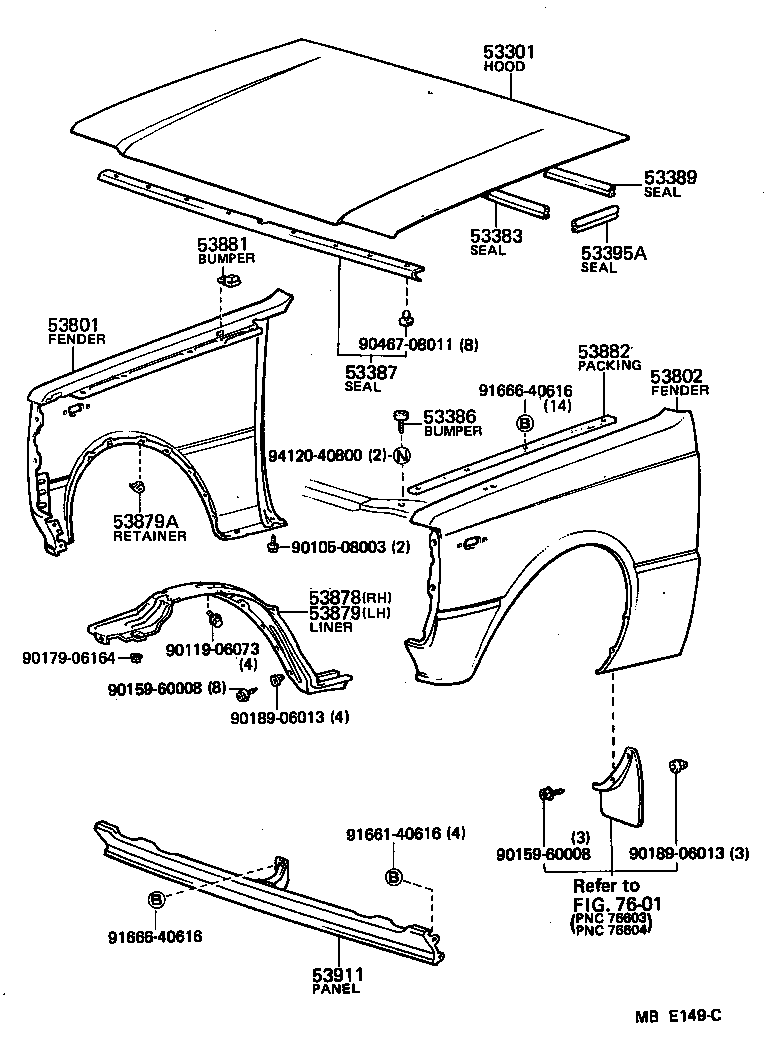

(8208- )

Click highlighted areas on diagram

diagram 53301 53383 53386 53387 53389 53395A 53801 53802 53878 53879 53879A 53881 53882 53911 7601 9010508003 9011906073 9015960008 9015960008 9017906164 9018906013 9018906013 9046708011 9166140616 9166640616 9166640616 9412040800
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-10151

KP6#

 1
53301-10152

KP61

 1
53301-10150

KP6#

 1
53383 - SEAL, HOOD TO COWL TOP
53383-10011

KP6#

 1
53386 - BUMPER, HOOD, REAR
53382-20011

KP6#

 2
53382-12040

KP6#

 2
53389 - SEAL, HOOD TO COWL TOP SIDE
53389-10011

KP6#

 2
53389-10020

KP61

 1
53395A - SEAL, HOOD TO FRONT END PANEL, NO.1
53395-10010

KP6#

 2
53801 - FENDER SUB-ASSY, FRONT RH
53801-10270

KP6#

 1
53801-10292

KP61..SED

W/O FENDER MIRROR HOLE

 1
53801-10330

KP61..SED..(DLX,DXA,S,SE,XL)

W/BIG TYPE OR URETHANE BUMPER

 1
53801-10272

KP61

W/FENDER MIRROR HOLE

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-10380

KP61..SED..(DLX,DXA,S,SE,XL)

W/BIG TYPE OR URETHANE BUMPER

 1
53802-10320

KP6#

 1
53802-10323

KP61

W/FENDER MIRROR HOLE

 1
53802-10342

KP61..SED

W/O FENDER MIRROR HOLE

 1
53878 - LINER, FRONT FENDER, RH
53875-10011

KP6#

 1
53875-10010

KP6#

 1
53879 - LINER, FRONT FENDER, LH
53876-10011

KP6#

 1
53876-10010

KP6#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-10010

KP6#

 8
53881 - BUMPER, FENDER TO HOOD
53387-10010

KP6#

LH

 1
53384-10040

KP6#

 2
53384-10040

KP6#

RH

 1
53882 - PACKING, FRONT FENDER MAIN
53882-10040

KP6#

 2
53882-10041

KP6#

 2
53882-10042

KP61

 2
53911 - PANEL, FRONT VALANCE
53901-10020

KP6#

 1
53901-10060

KP61..SED..(DLX,DXA,S,SE,XL)

UPR,W/BIG OR URETHANE BUMPER

 1
53902-10020

KP61..SED..(DLX,DXA,S,SE,XL)

LWR,W/BIG OR URETHANE BUMPER

 1
53902-10031

KP61

 1
Common parts
90105-08003
90119-06073
90159-60008
90179-06164
90189-06013
90467-08011
91661-40616
91666-40616
94120-40800
Linked diagrams
7601
