KP61-PHMGE (1982)

Toyota Starlet

Production Aug 1982 - Sep 1984
Engine 4KEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

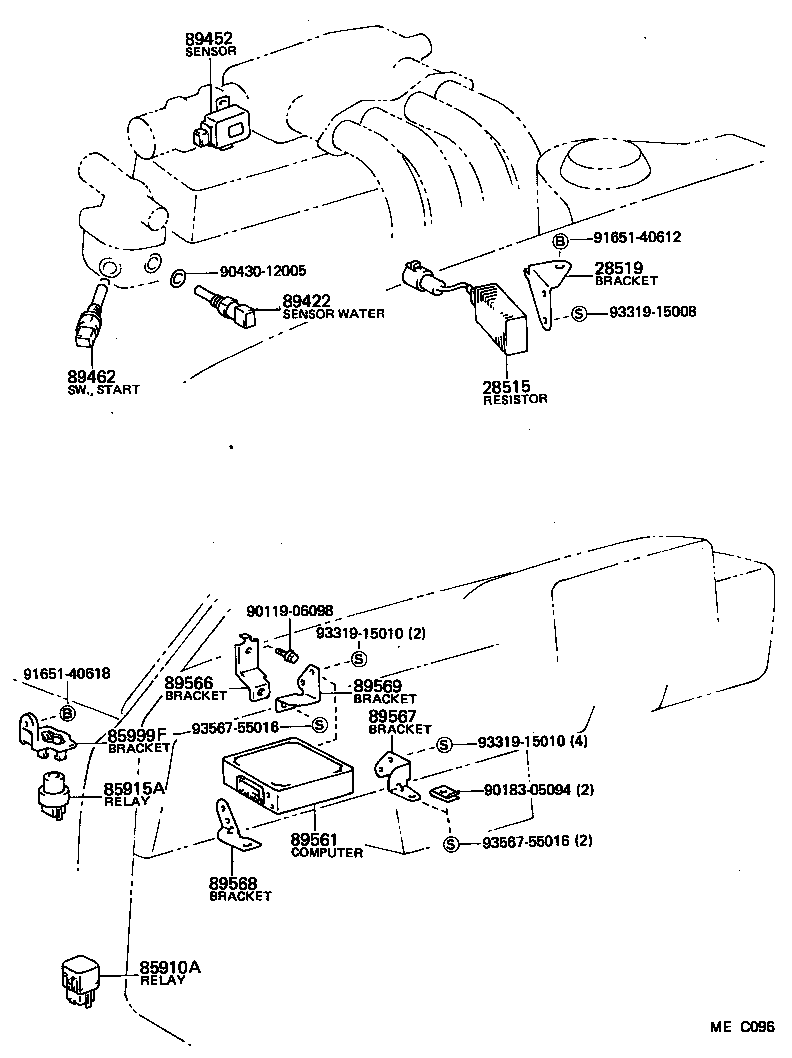

Click highlighted areas on diagram

diagram 28515 28519 85910A 85915A 85999F 89422 89452 89462 89561 89566 89567 89568 89569 9011906098 9018305094 9043012005 9165140612 9165140618 9331915008 9331915010 9331915010 9356755016 9356755016
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-52010

4KEU..KP61

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-13010

4KEU..KP61

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-30050

KP61..EFI

 1
85915A - RELAY, MAIN
90987-02004

KP61..EFI

 1
85999F - BRACKET, RELAY
85999-12050

KP61..EFI

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30020

KP61..EFI

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-12010

KP61..EFI

 1
89462 - SWITCH, START INJECTOR TIME
89462-30011

KP61..EFI

 1
89561 - COMPUTER, FUEL INJECTION
89561-10010

KP61..(SE,SI)..EFI

 1
89566 - BRACKET, FUEL INJECTION COMPUTER
89566-10010

KP61..EFI

 1
89567 - BRACKET, FUEL INJECTION COMPUTER
89567-10010

KP61..EFI

 1
89568 - BRACKET, FUEL INJECTION COMPUTER
89568-10010

KP61..EFI

 1
89569 - BRACKET, FUEL INJECTION COMPUTER
89569-10010

KP61..EFI

 1
Common parts
90119-06098
90183-05094
90430-12005
91651-40612
91651-40618
93319-15008
93319-15010
93567-55016
